Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the energy absorber to the fascia (2).
  2. Install the fasteners (1).
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - Rear Bumper .

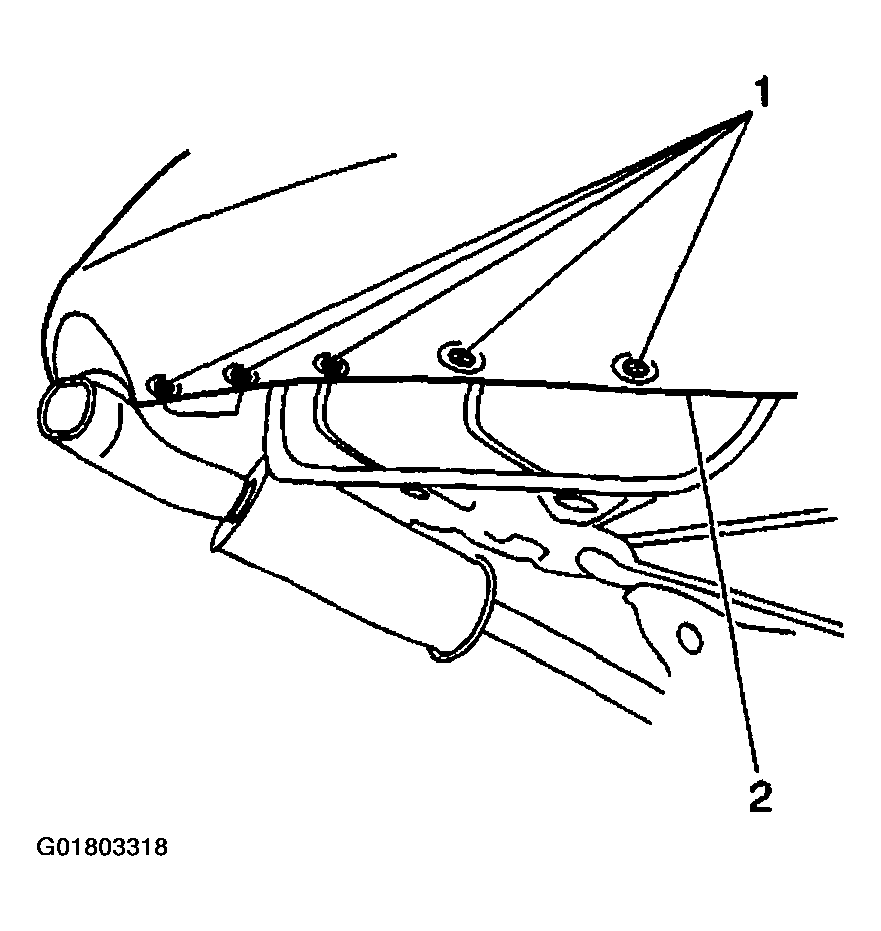

    Fig 1: Installing Rear Energy Absorber
    G01803318Courtesy of GENERAL MOTORS CORP.
