Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the seat cushion cover to the seat cushion.
    Fig 1: Aligning Front Seat Cushion Cover To Seat Cushion
    G01756069Courtesy of GENERAL MOTORS CORP.
  2. Install the seat cushion cover onto the seat cushion.

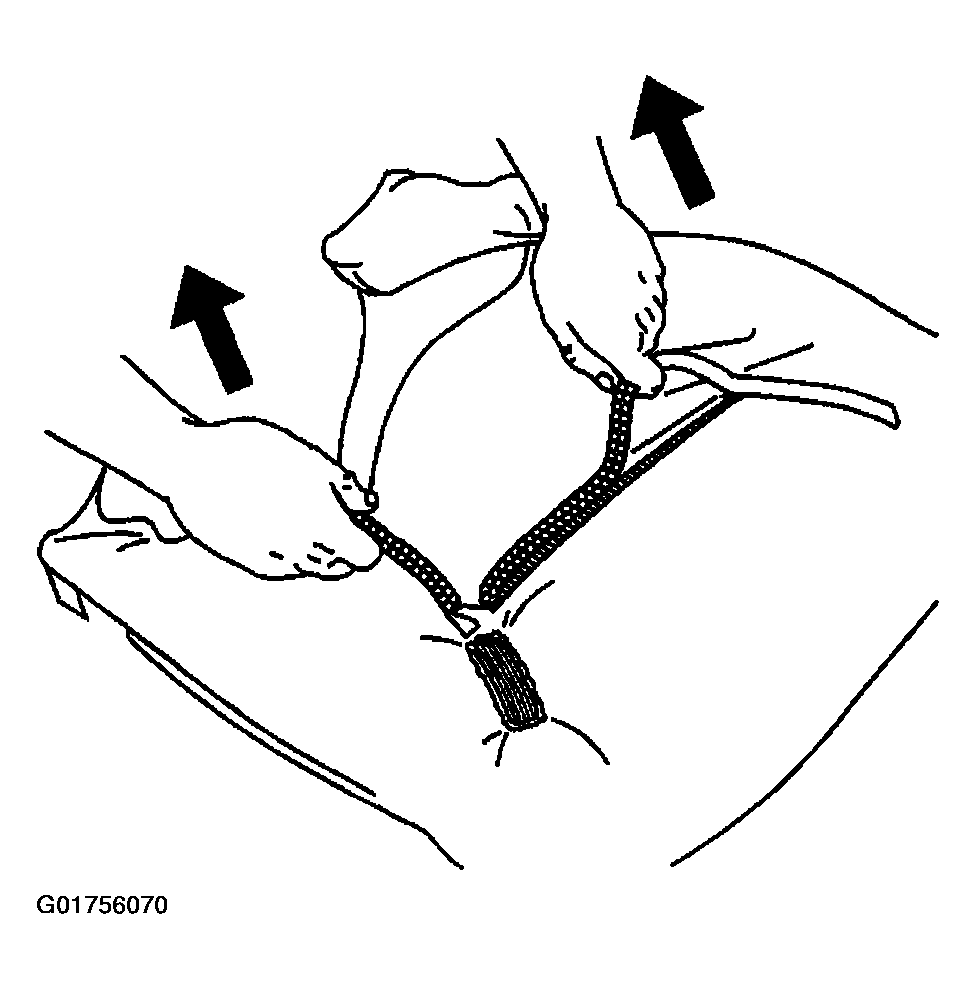

    Fig 2: Installing Front Seat Cushion Cover Onto Seat Cushion
    G01756070Courtesy of GENERAL MOTORS CORP.
  3. Fasten the J-hook retainers on all sides of the seat cushion cover.

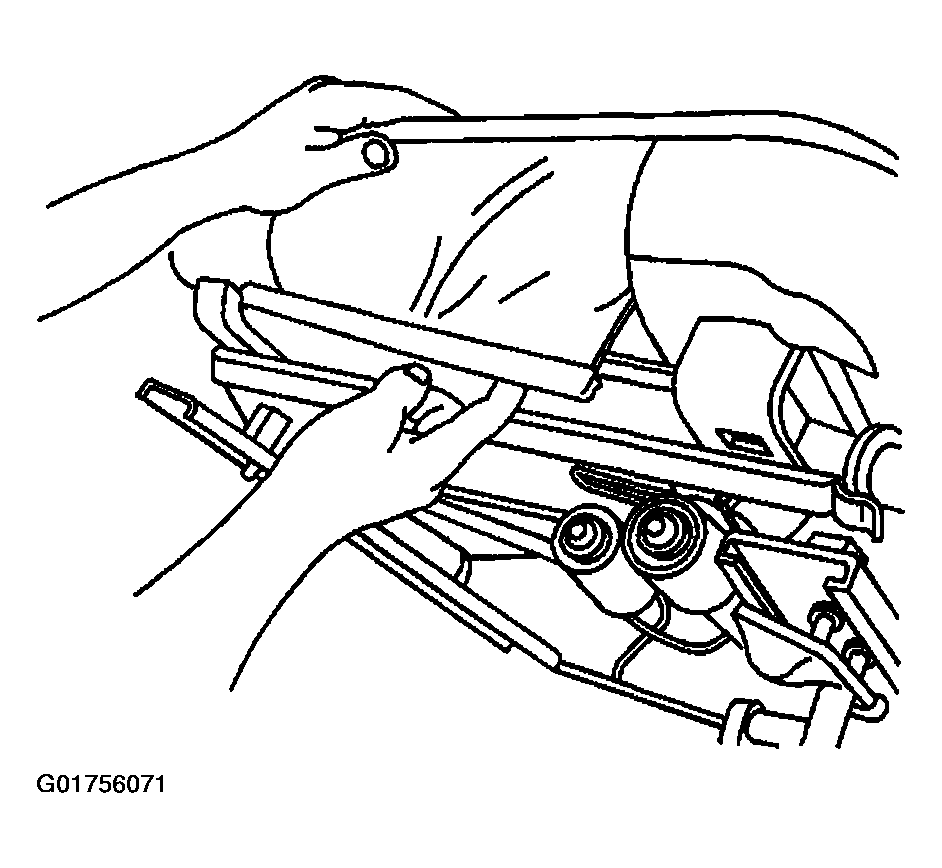

    Fig 3: Identifying Front Seat Cushion Cover J-Hook Retainers
    G01756071Courtesy of GENERAL MOTORS CORP.
  4. Fasten the hook and the loop retainers that secure the cover to the cushion, by pressing in place until fully seated.

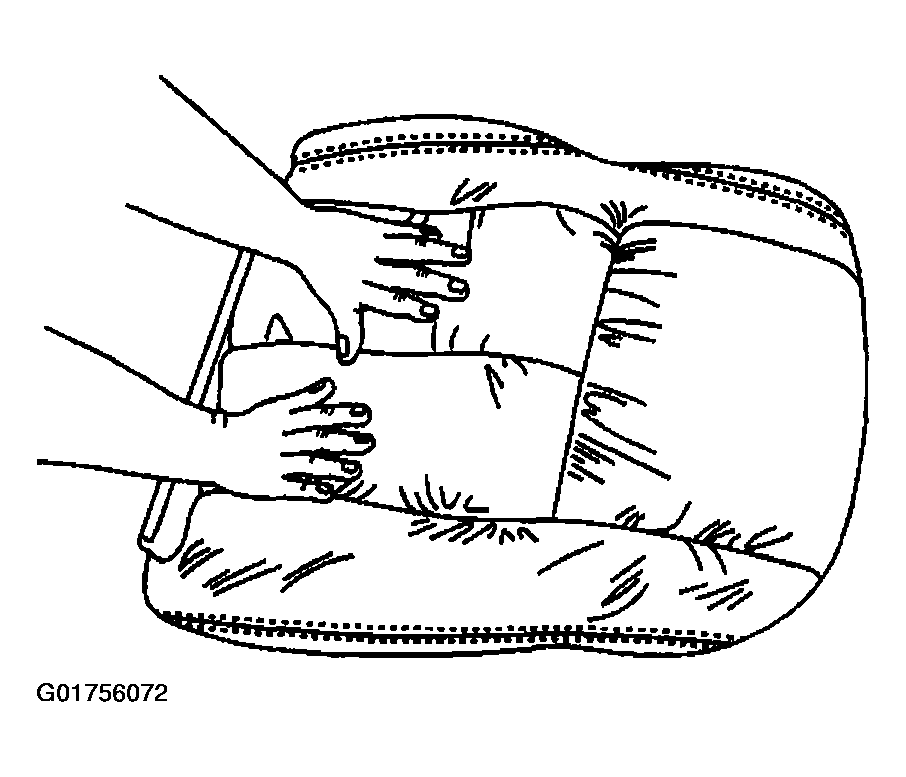

    Fig 4: Pressing Seat Cover Cushion Into Place
    G01756072Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector for the heated seat, if equipped.

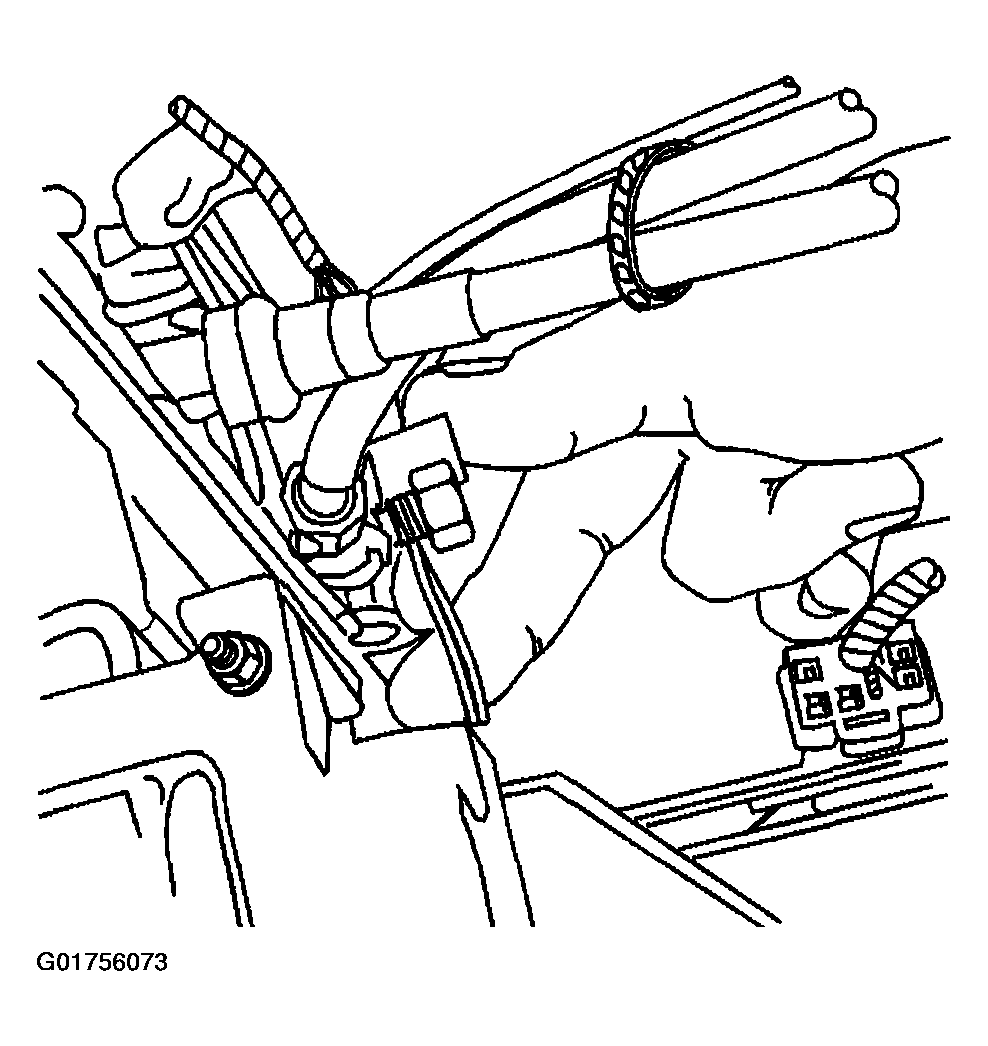

    Fig 5: Identifying Heated Seat Electrical Connector
    G01756073Courtesy of GENERAL MOTORS CORP.
  6. Install the front seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  7. Install the front seat. Refer to Seat Replacement - Front Bucket .
