Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the rear compartment trim as required to access the lock striker. Refer to Compartment Trim Panel Replacement - Rear .
  2. Use a grease pencil to mark the location of the lock striker to the rear compartment for its location at installation.
  3. Remove the bolt from the rear compartment lid lock striker in the rear compartment.

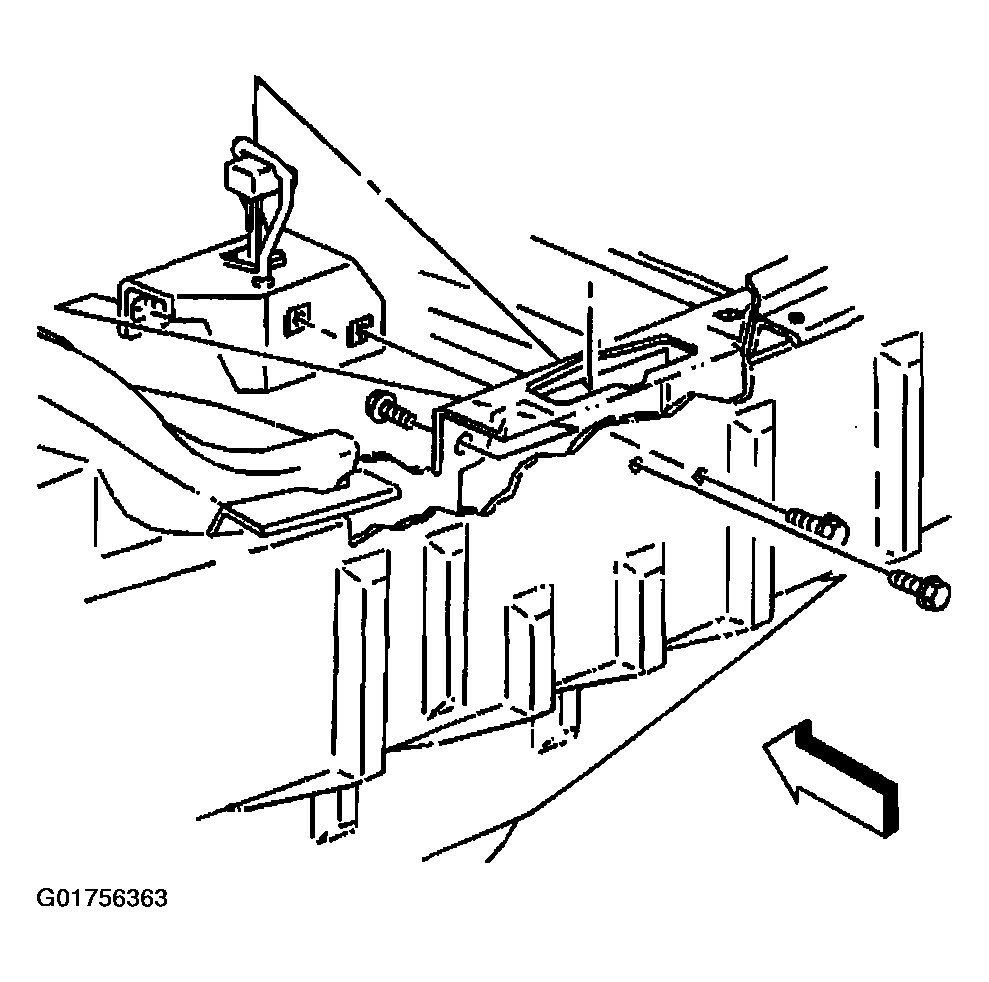

    4. Fig 1: Identifying Rear Compartment Lid Lock Striker
    G01756363Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .
  5. Remove the rear compartment lid lock striker bolts from under the rear bumper fascia above the impact bar to the body panel.
  6. Remove the rear compartment lid lock striker from the rear compartment body panel.
