Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Pull the retainer from the rear compartment lock cylinder. Remove the retainer.

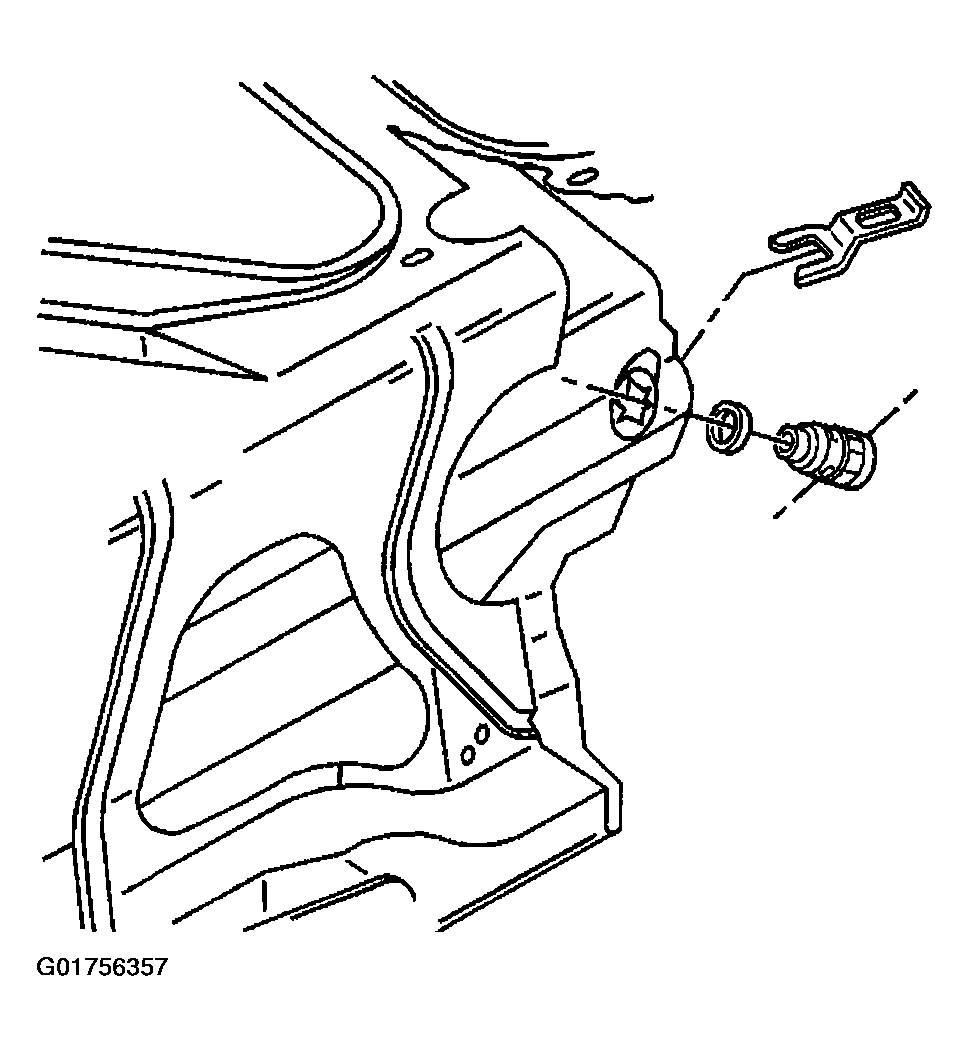

    3. Fig 1: Identifying Rear Compartment Lid Lock Cylinder
    G01756357Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the rear compartment lock cylinder actuator cable from the rear compartment lock cylinder.
  4. Remove the rear compartment lock cylinder and the gasket from the rear compartment lid.
