Water Crossover Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump drive belt shield bolt and nuts.
  2. Remove the water pump drive belt shield.

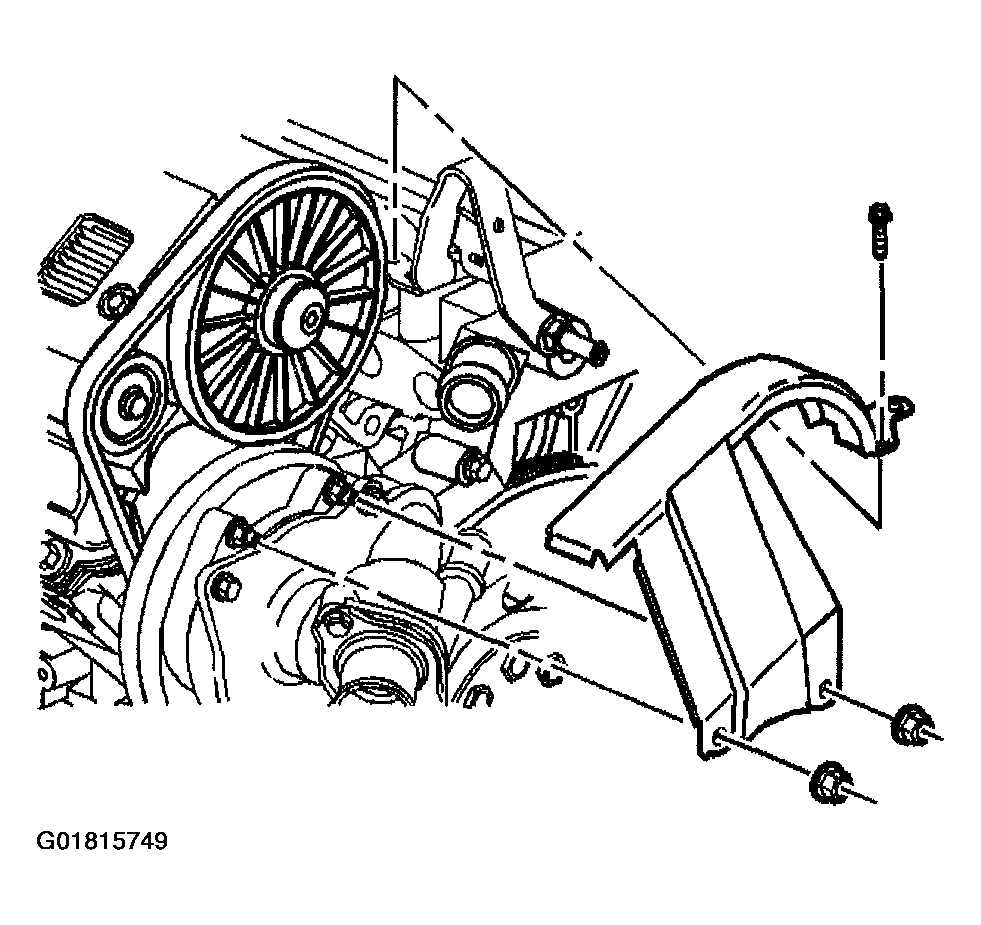

    Fig 1: Removing Water Pump Drive Belt Shield
    G01815749Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump drive belt by compressing the belt tensioner while sliding the belt off the drive pulley and the water pump pulley.

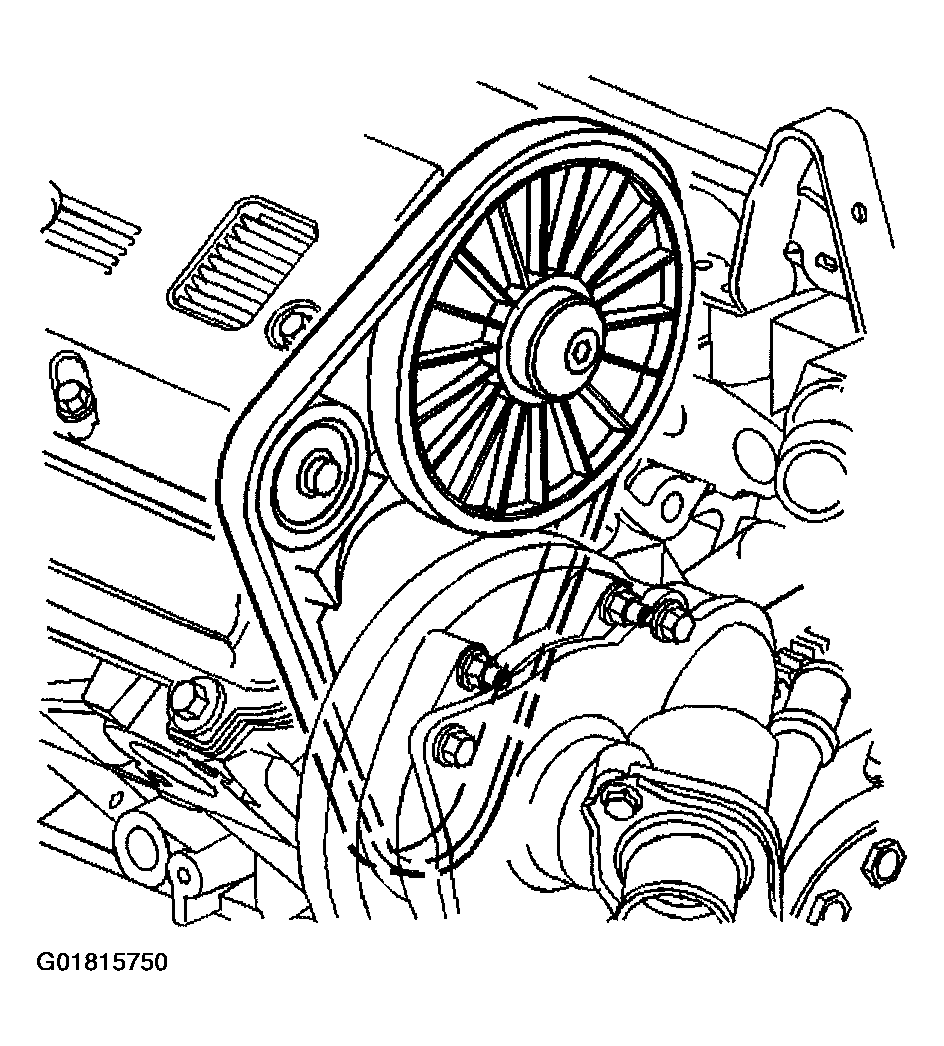

    Fig 2: Removing water Pump Drive Belt
    G01815750Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump drive belt tensioner bolts from the tensioner.
  5. Remove the water pump drive belt tensioner from the water crossover.

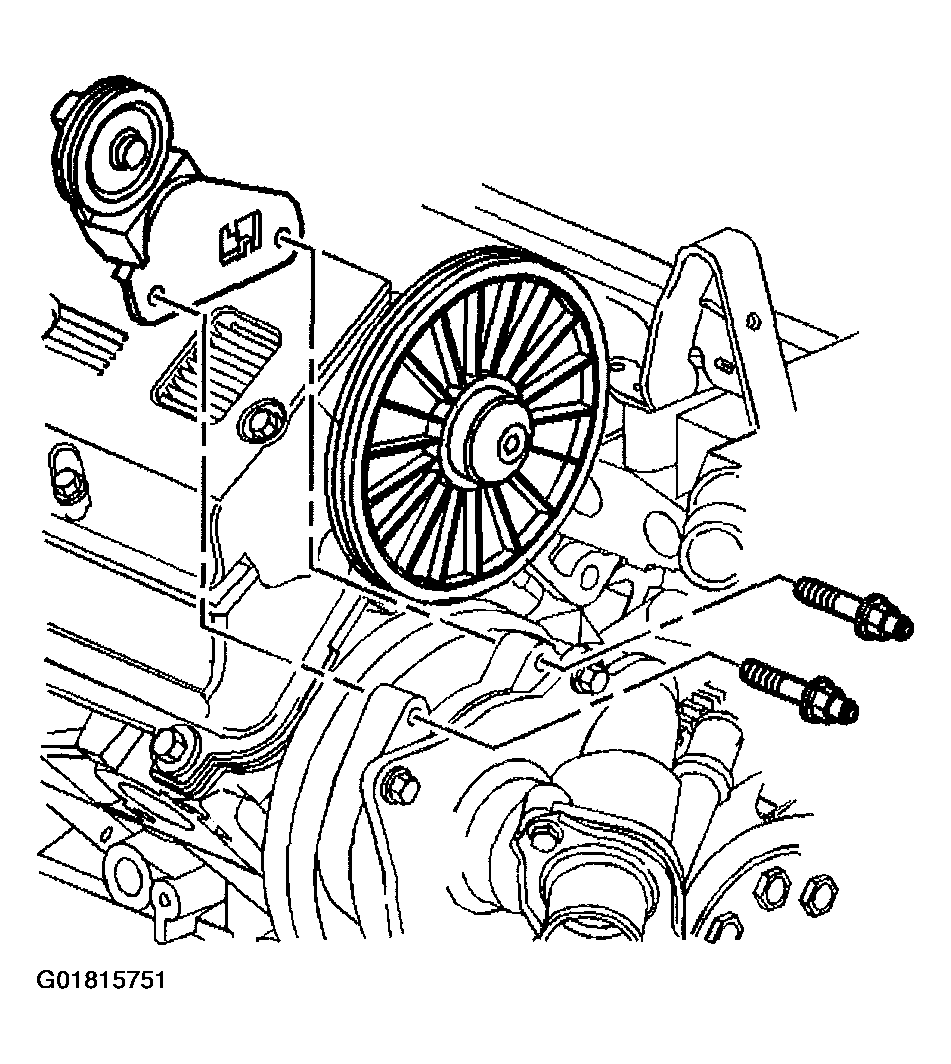

    Fig 3: Removing Water Pump Drive Belt Tensioner
    G01815751Courtesy of GENERAL MOTORS CORP.
  6. Loosen the water crossover mounting bolts.
  7. Remove the water crossover and all mounting bolts.

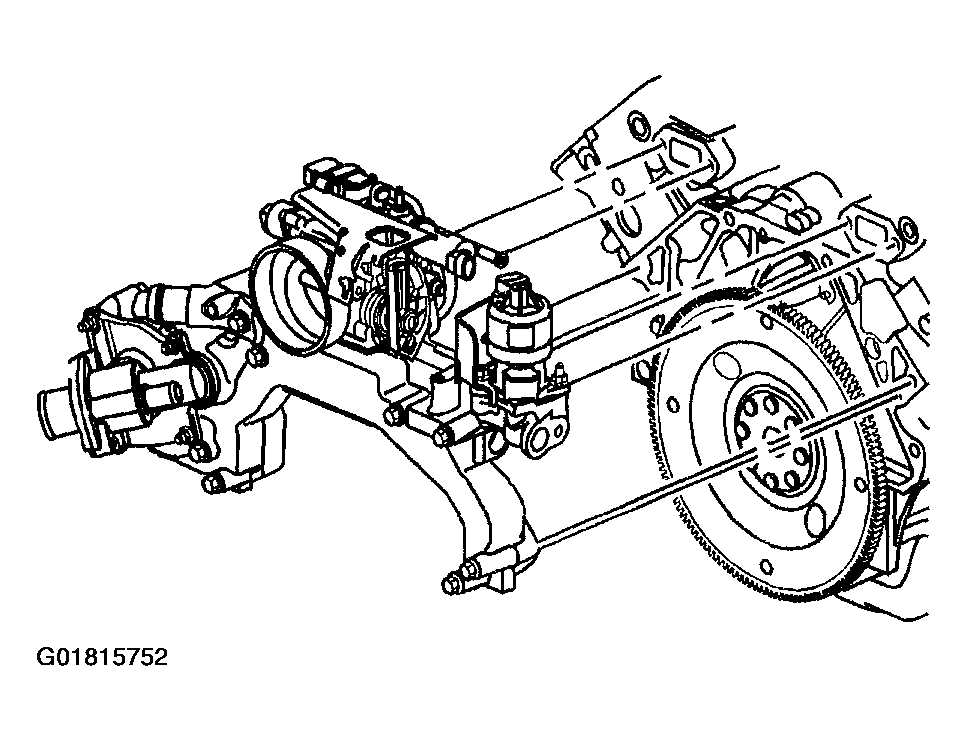

    Fig 4: Removing Water Crossover
    G01815752Courtesy of GENERAL MOTORS CORP.
  8. Remove the water crossover gaskets.

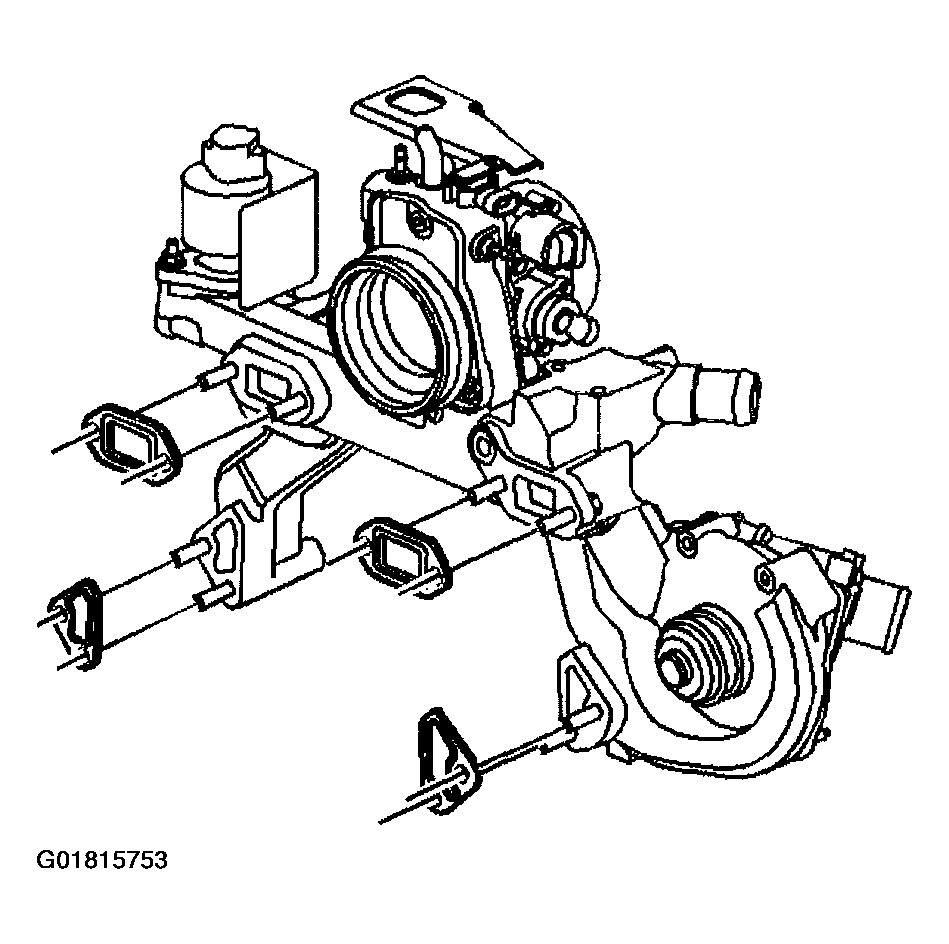

    Fig 5: Removing Water Crossover Gaskets
    G01815753Courtesy of GENERAL MOTORS CORP.
