Valve Rocker Arm Removal - Right

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Ensure each camshaft follower remains matched to the original stationary hydraulic lash adjuster (SHLAs) and original location the components were assembled in.

  1. Remove the camshaft followers from the right cylinder head.
  2. Store the camshafts, followers and SHLAs in a clean, secure location.

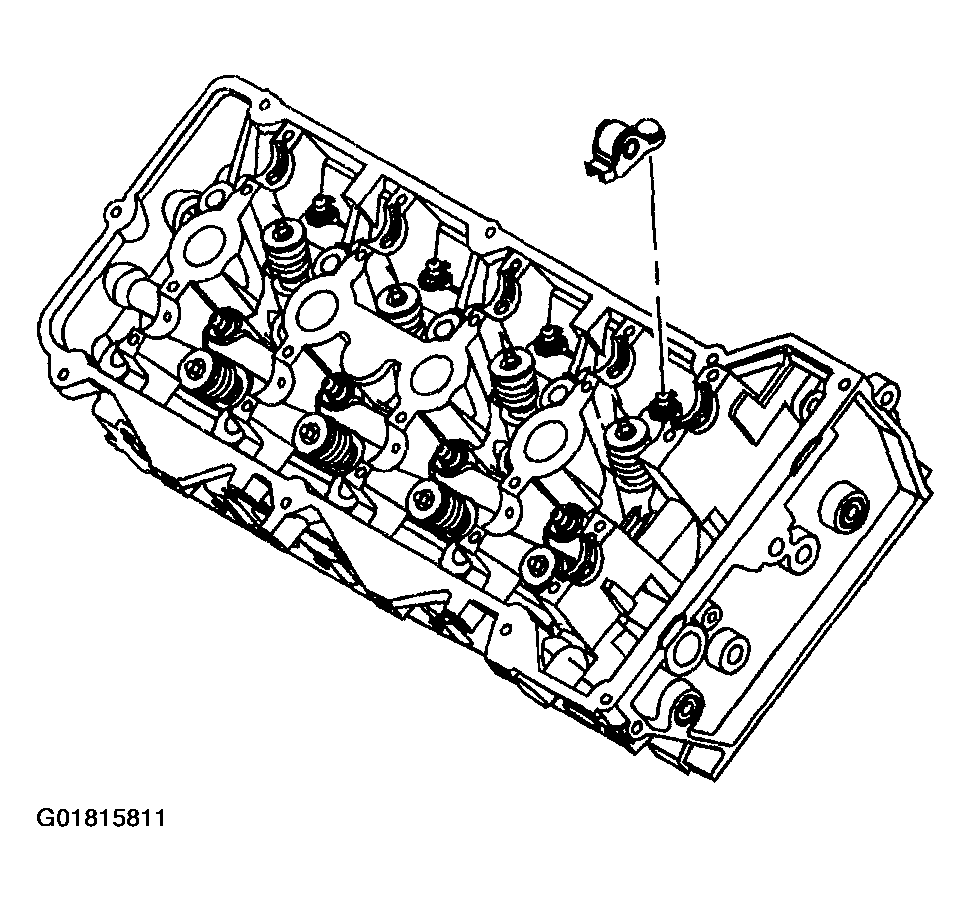

    Fig 1: Removing Camshaft Followers
    G01815811Courtesy of GENERAL MOTORS CORP.
