Oil Pan Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the engine so that the oil pan is facing up.
  2. Remove the oil pan bolts.
  3. Lift the oil pan from the lower crankcase.

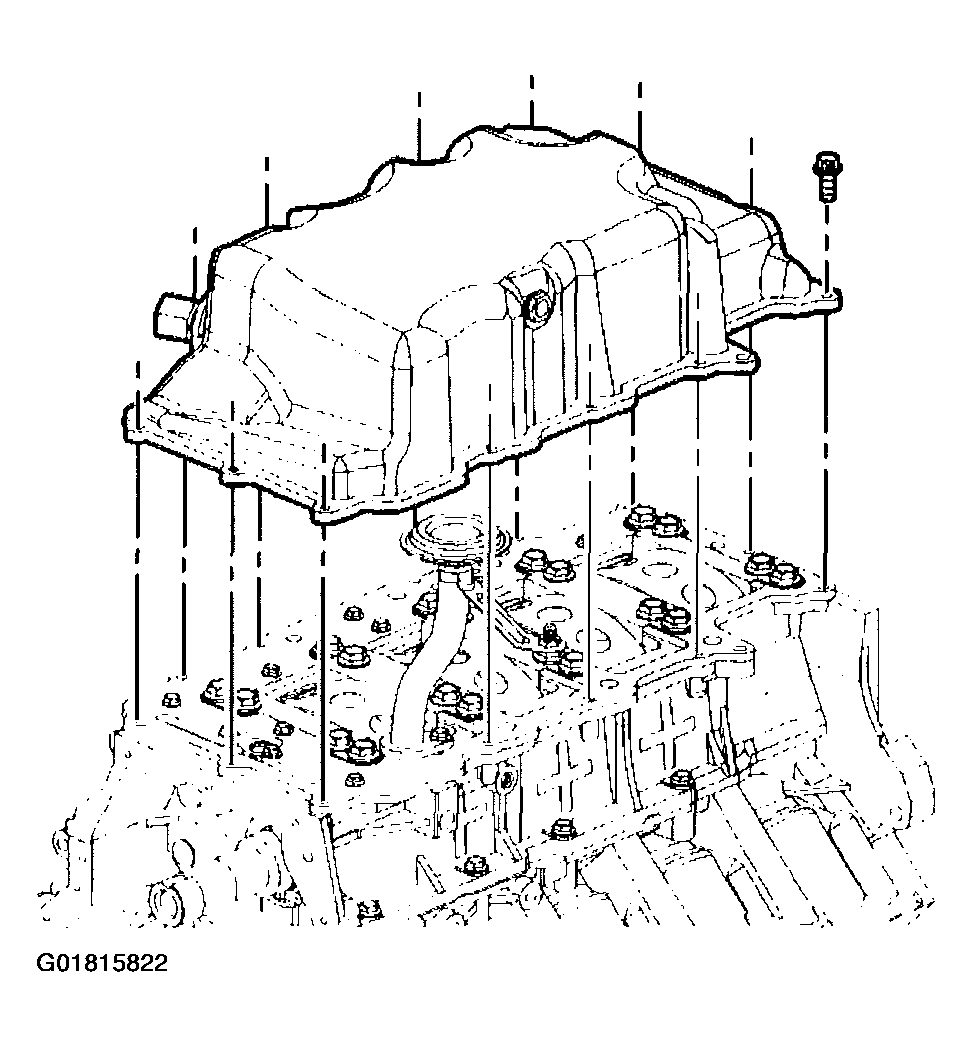

    Fig 1: Removing Oil Pan
    G01815822Courtesy of GENERAL MOTORS CORP.
