Drive Belt Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a 1/2-inch drive ratchet in the drive belt tensioner (6).
  2. Rotate the drive belt tensioner clockwise in order to release the belt tension.
  3. Remove the drive belt from the power steering pulley (1).
  4. Slowly return the drive belt tensioner to its original position.
  5. Remove the drive belt from the remaining pulleys (2-5).

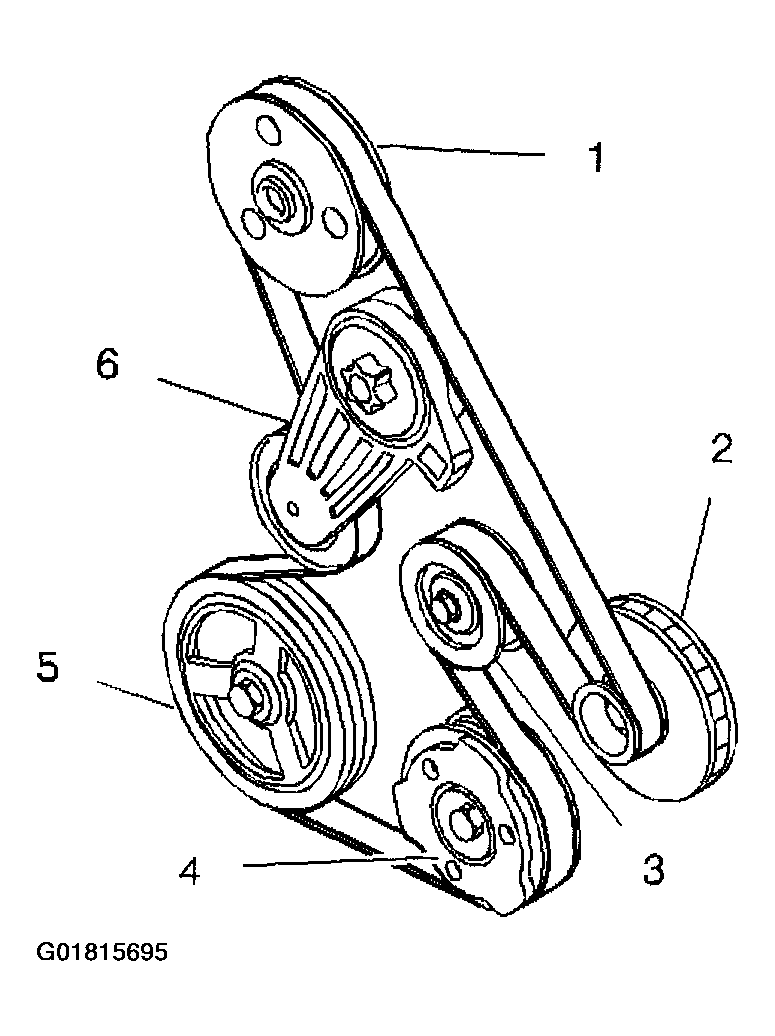

    Fig 1: Removing Drive Belt
    G01815695Courtesy of GENERAL MOTORS CORP.
