Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

J 8062 Valve Spring Compressor
J 38821 Valve Spring Compressor Adapter
J 38820 Valve Stem Seal Installer
J 43059 Valve Retainer Remover/Installer

Using an appropriately sized deep socket and a plastic hammer, lightly tap on the valve spring retainer in order to loosen the valve keepers.

Fig 1: Tapping Valve Spring Retainer
Courtesy of GENERAL MOTORS CORP.

WARNING: Compressed valve springs have high tension against the valve spring compressor. Valve springs that are not properly compressed by or released from the valve spring compressor can be ejected from the valve spring compressor with intense force. Use care when compressing or releasing the valve spring with the valve spring compressor and when removing or installing the valve stem keys. Failing to use care may cause personal injury.

CAUTION: Do not compress the valve springs less than 24.0 mm (0.943 in). Contact between the valve spring retainer and the valve stem oil seal can cause potential valve stem oil seal damage.

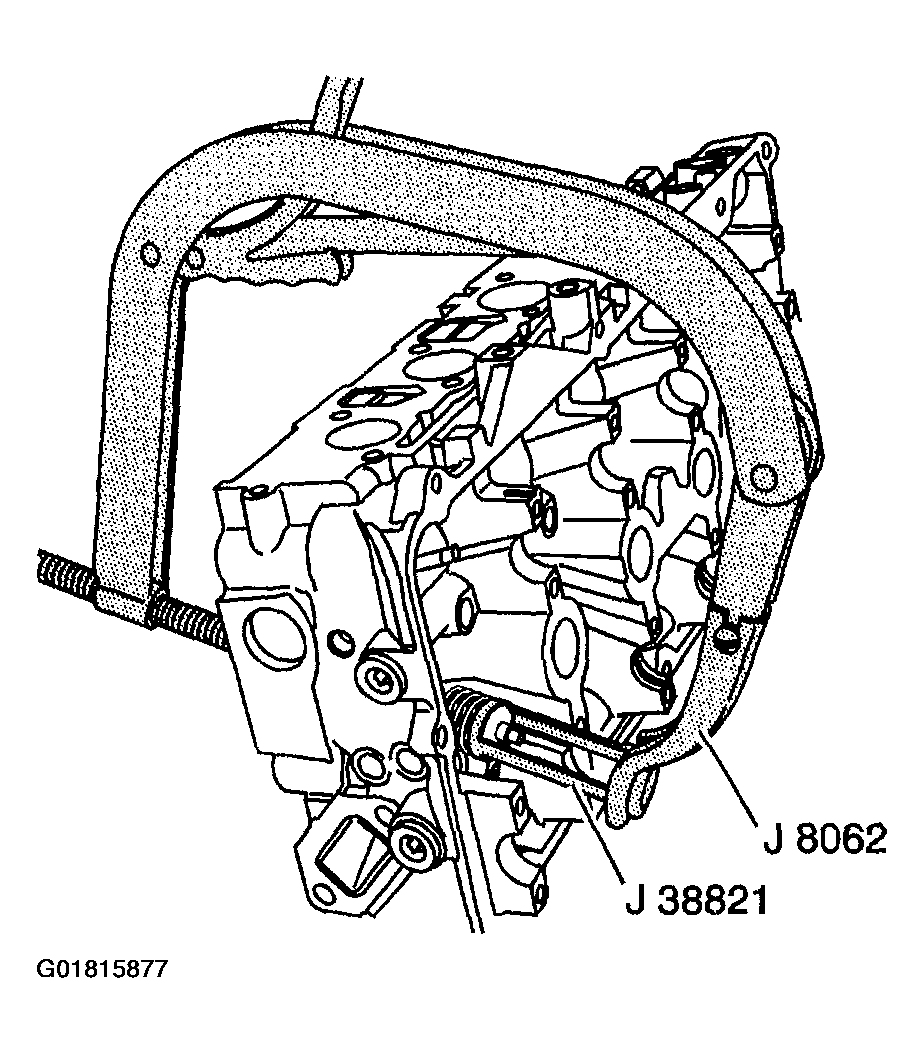

Compress the valve spring with the J 8062 and the J 38821.

Fig 2: Compressing Valve Spring
Courtesy of GENERAL MOTORS CORP.

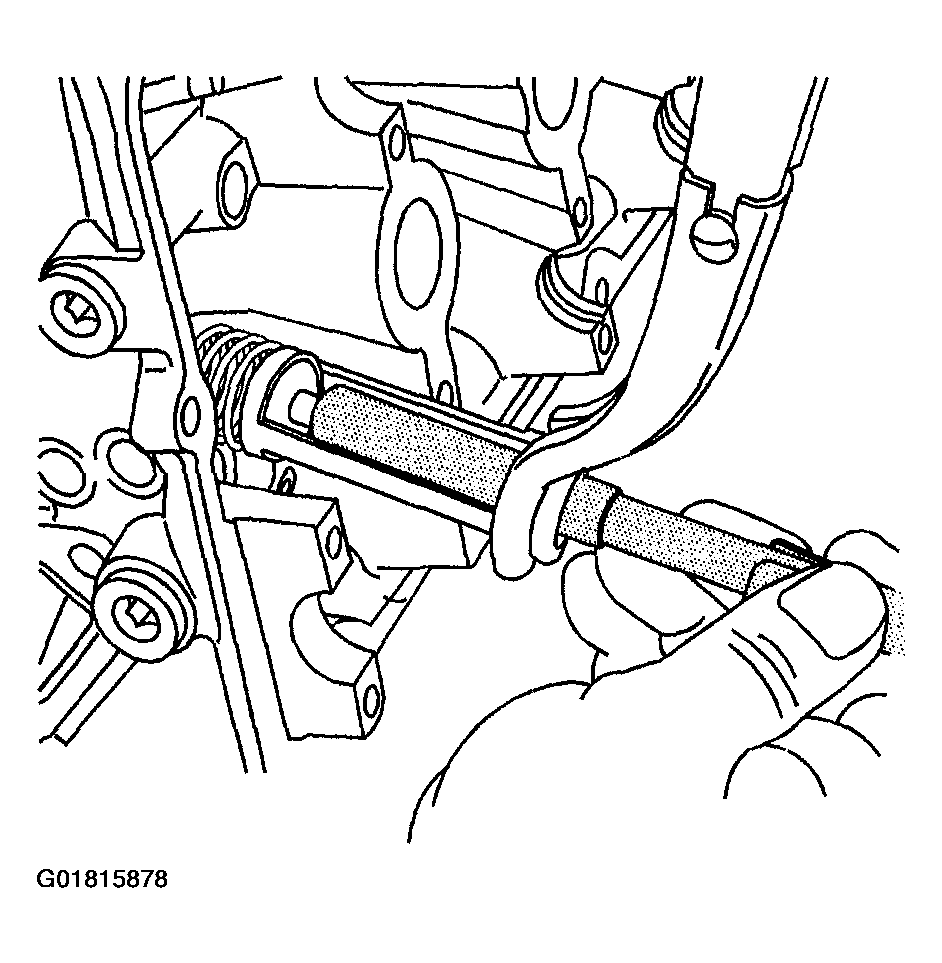

Use the magnetic end of the J 43059 in order to remove the valve keepers.
Remove the J 8062 and the J 38821.

Fig 3: Removing Valve Keepers
Courtesy of GENERAL MOTORS CORP.

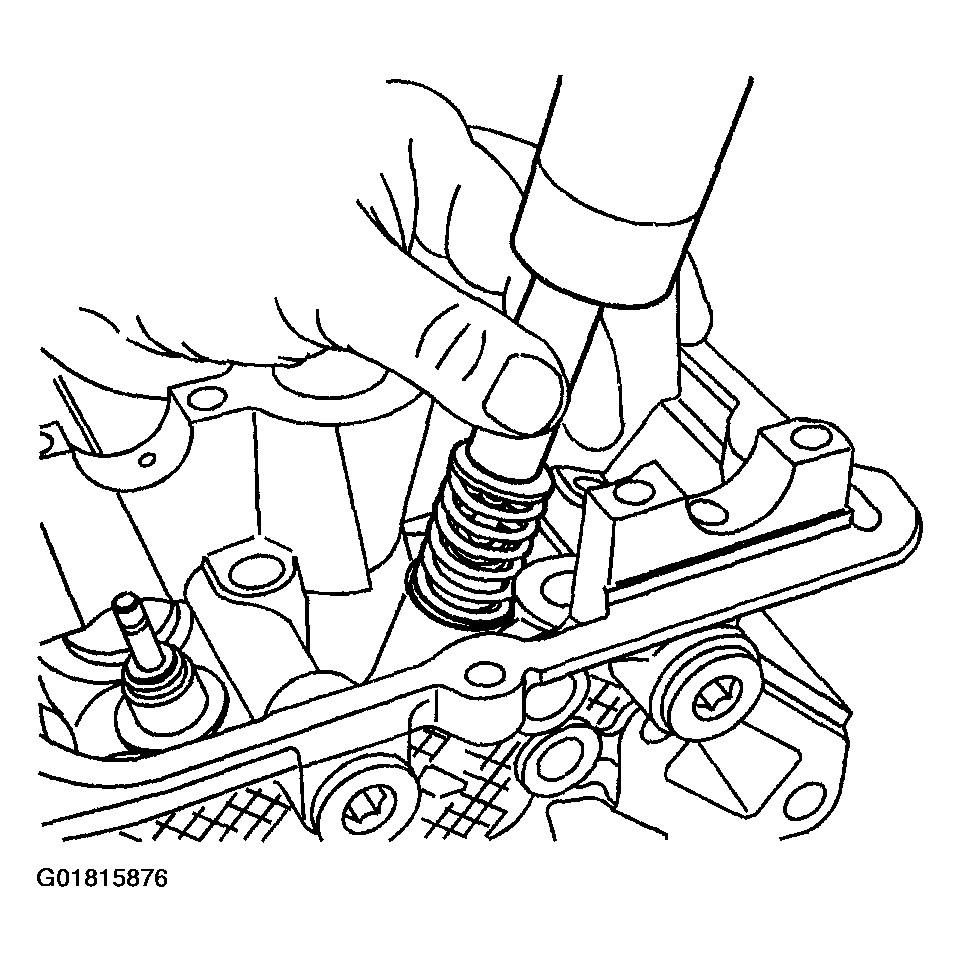

Remove the valve spring.

Fig 4: Removing Valve Spring
Courtesy of GENERAL MOTORS CORP.

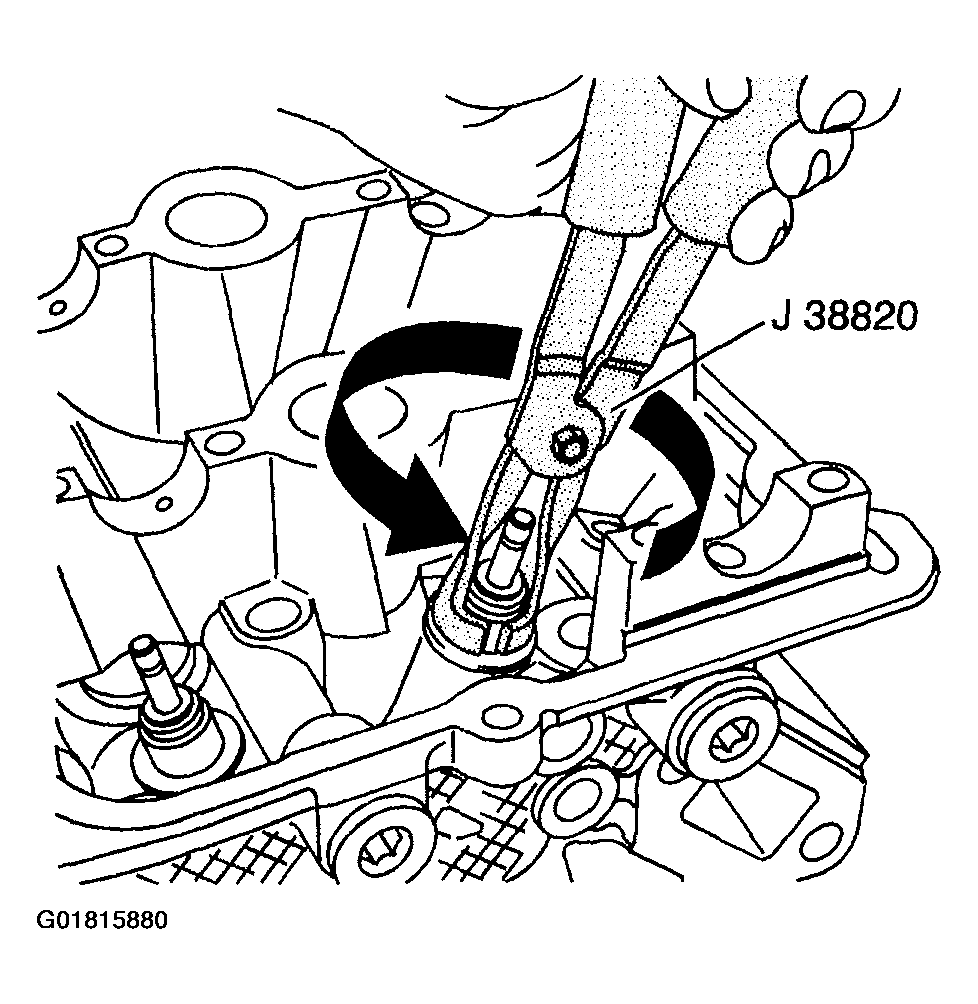

Remove the valve seal with the J 38820. Discard the valve seal, NEVER re-use the valve seal.
Remove the valve.
Repeat the procedure for the remaining valves.

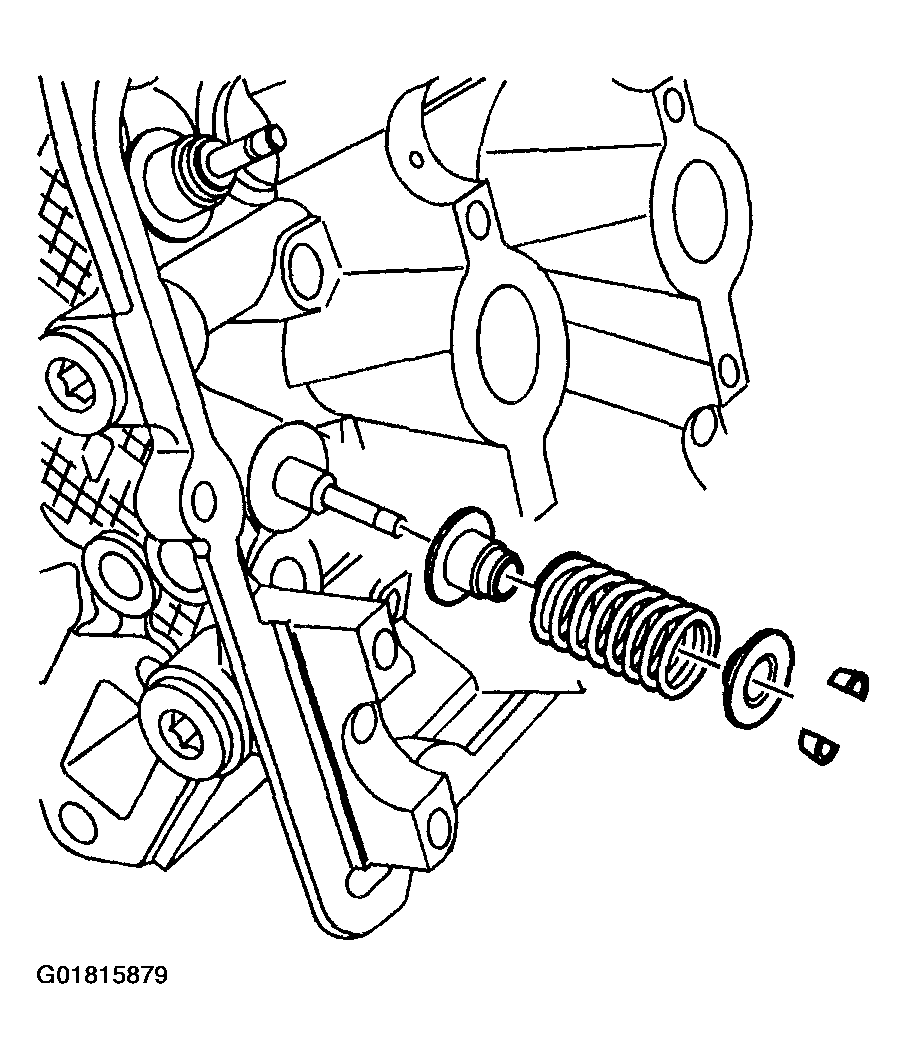

Fig 5: Removing Valve
Courtesy of GENERAL MOTORS CORP.
