Camshaft Cover Assemble

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft cover bolt grommets.
  2. Install the camshaft cover bolts.
    Fig 1: Installing Camshaft Cover Bolt & Grommets
    G01817061Courtesy of GENERAL MOTORS CORP.
  3. Install the left camshaft cover gasket.
  4. Install the left spark plug port seals.
  5. Install the left ignition module ground/RFI spring port seal.

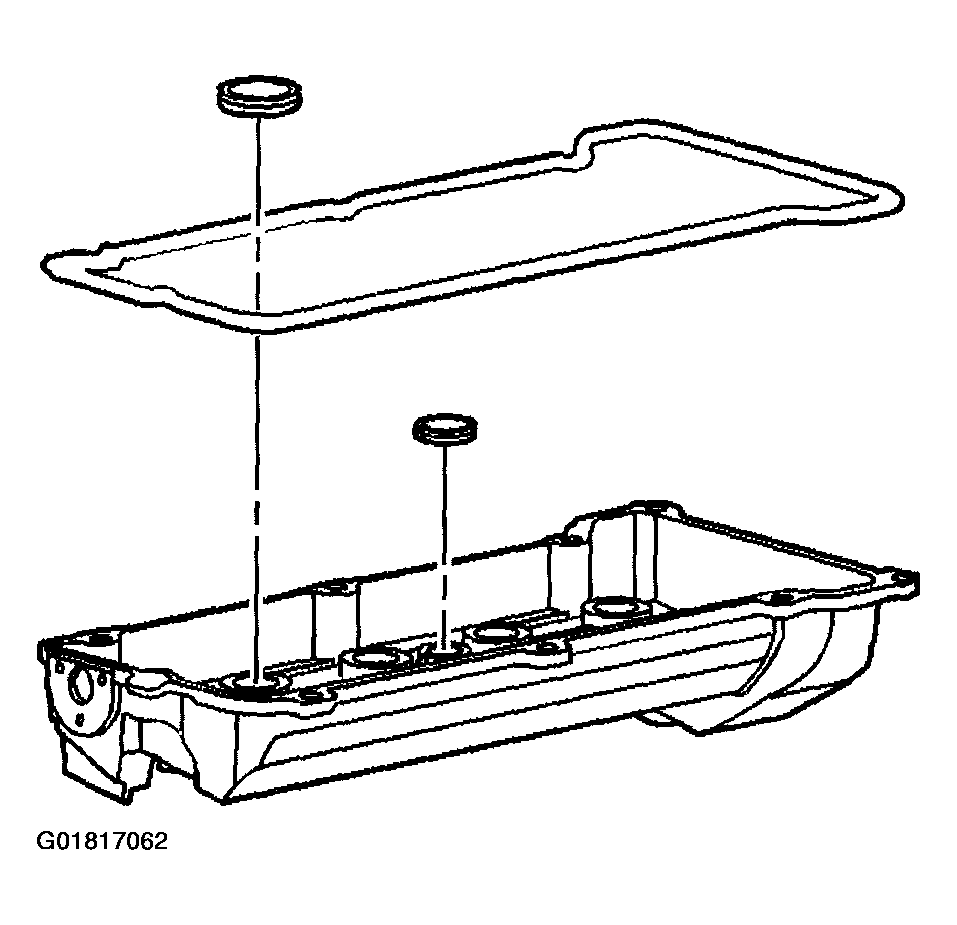

    Fig 2: Assembling Left Camshaft Cover
    G01817062Courtesy of GENERAL MOTORS CORP.
  6. Install the right camshaft cover gasket.
  7. Install the right spark plug port seals.
  8. Install the right ignition module ground/RFI spring port seal.

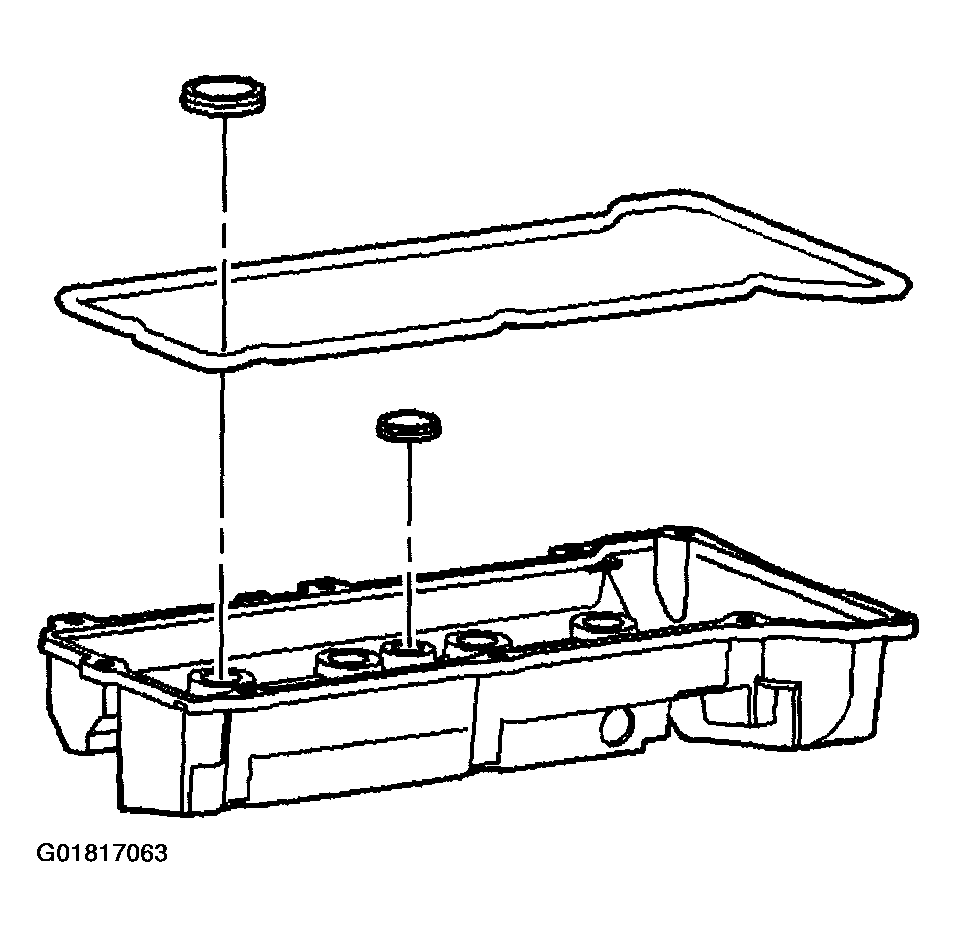

    Fig 3: Assembling Right Camshaft Cover
    G01817063Courtesy of GENERAL MOTORS CORP.
