Water Crossover Assemble

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EGR valve gasket.
  2. Install the EGR valve.
    CAUTION: Refer to in FASTENER NOTICE .
  3. Install the EGR valve studs.

    Tighten

    Tighten the EGR valve studs to 24 N.m (18 ft lbs).

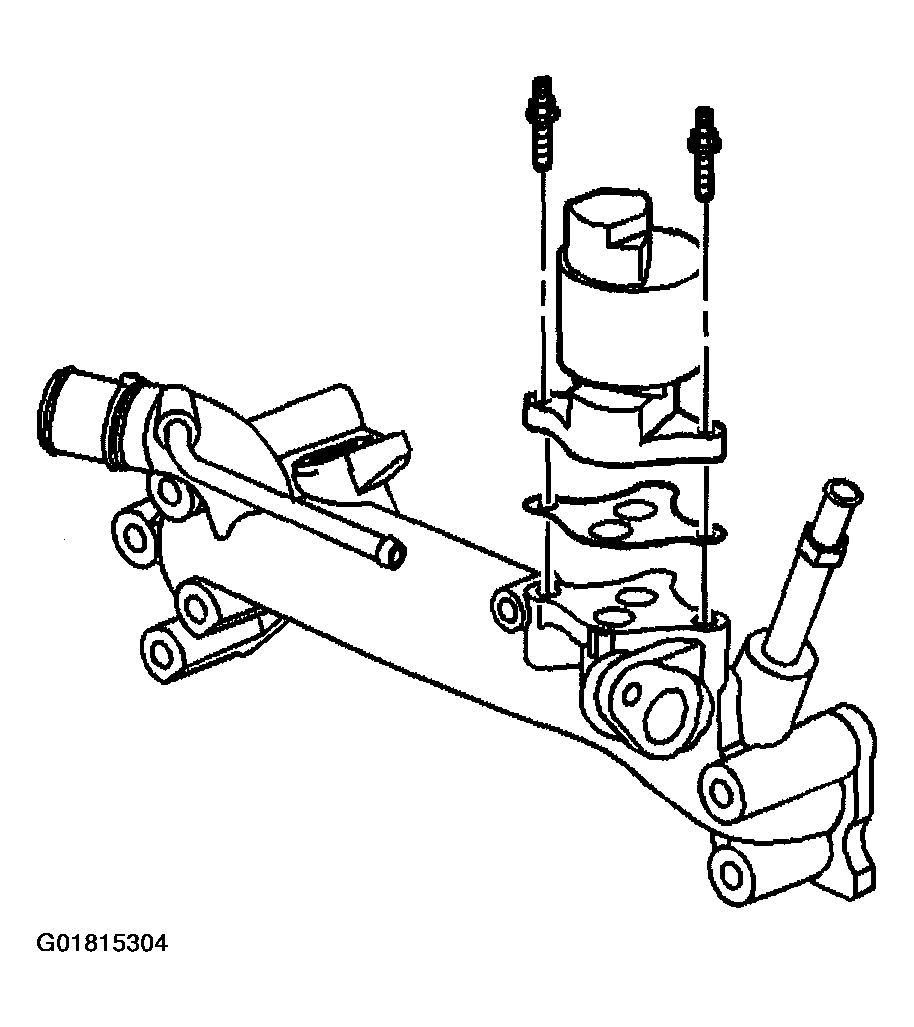

    Fig 1: Installing EGR Valve & Gasket
    G01815304Courtesy of GENERAL MOTORS CORP.
  4. Install the EGR wire harness heat shield.
  5. Install the EGR wire harness heat shield nuts.

    Tighten

    Tighten the EGR wire harness heat shield nuts to 25 N.m (18 ft lbs).

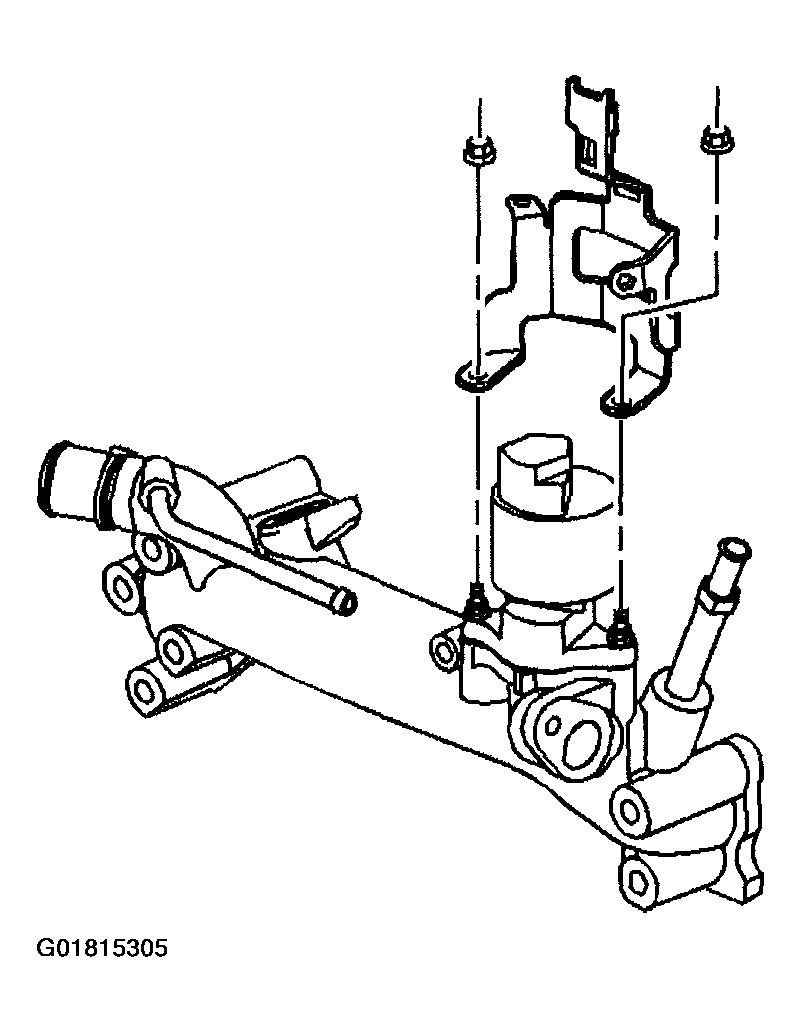

    Fig 2: Installing EGR Wire Harness Heat Shield
    G01815305Courtesy of GENERAL MOTORS CORP.
