Primary Camshaft Drive Chain Guide Installation - Upper

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper primary camshaft drive chain guides.
    CAUTION: Refer to in FASTENER NOTICE .
  2. Install the upper primary camshaft drive chain guides bolts.

    Tighten

    Tighten the upper primary camshaft drive chain guides bolts to 30 N.m (22 ft lbs).

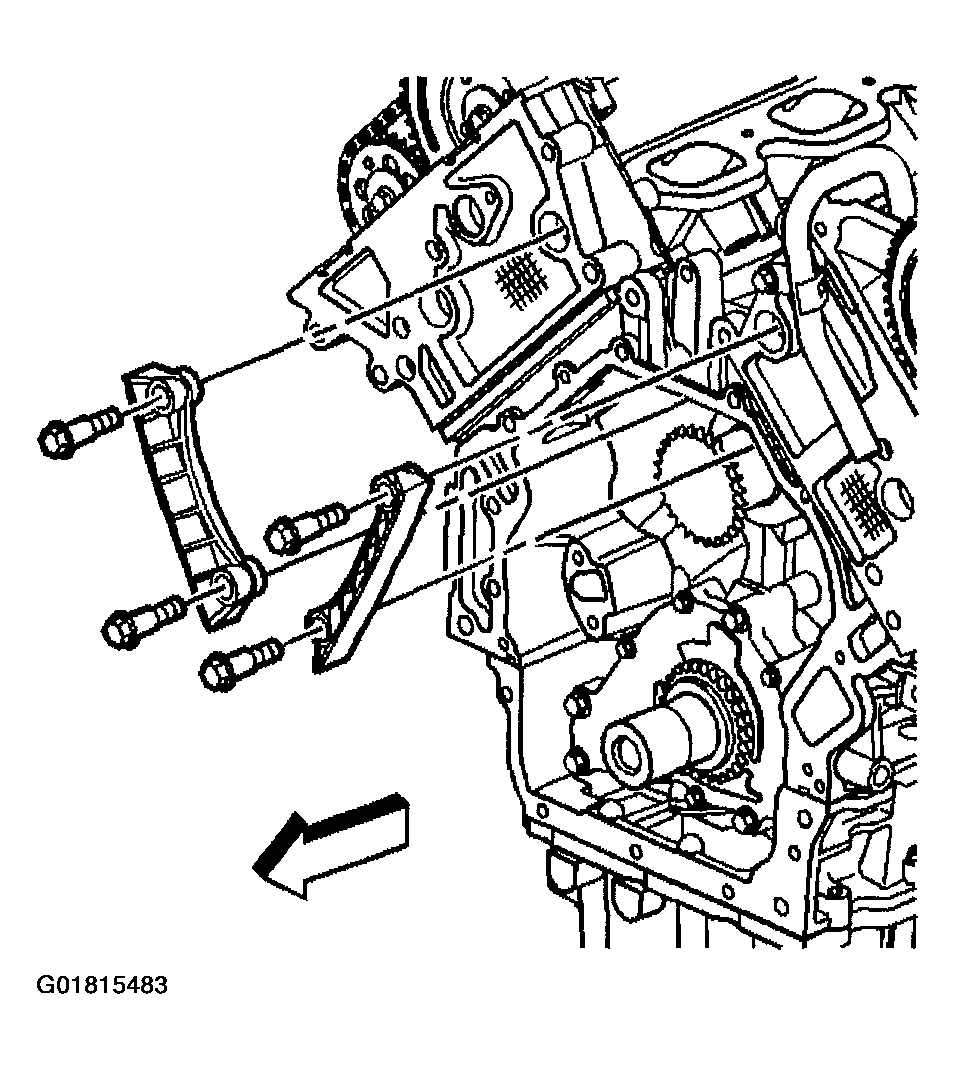

    Fig 1: Installing Upper Primary Camshaft Drive Chain Guides
    G01815483Courtesy of GENERAL MOTORS CORP.
