Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connectors from the front lower speaker.
  2. Remove the passenger seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
  3. Remove the nuts that retain the front lower speaker mounting bracket (2) to the passenger seat riser.
  4. Remove the front lower speaker (1) from the vehicle.
  5. Remove the 100-watt amplifier from the front lower speaker, if required.

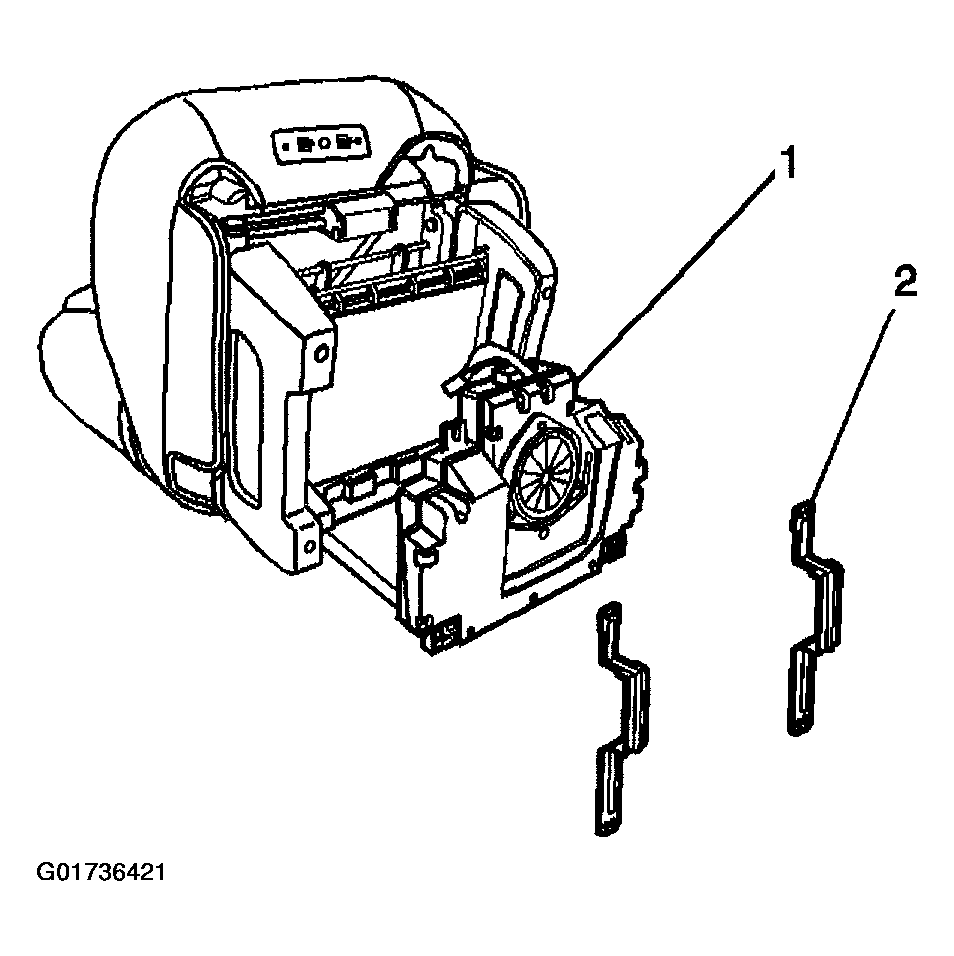

    Fig 1: Removing Front Lower Speaker & Components
    G01736421Courtesy of GENERAL MOTORS CORP.
