Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially remove the seat cushion cover in order to gain access to the seat belt buckle retaining bolt.
  2. Remove the seat belt buckle retaining bolt from the seat frame.
  3. Remove the seat belt buckle from the seat frame.

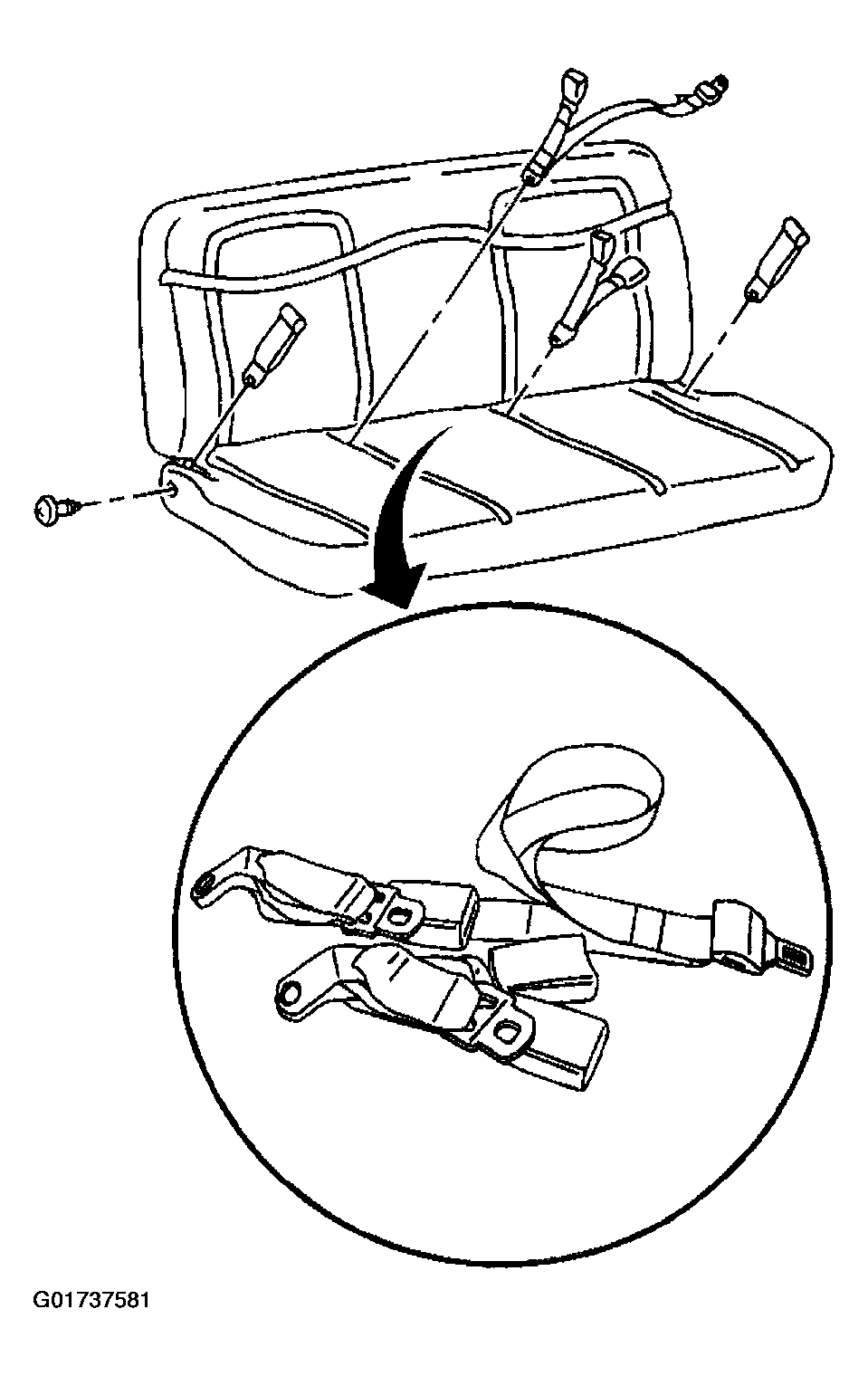

    Fig 1: Removing Seat Belt Buckle - Rear
    G01737581Courtesy of GENERAL MOTORS CORP.
