Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.

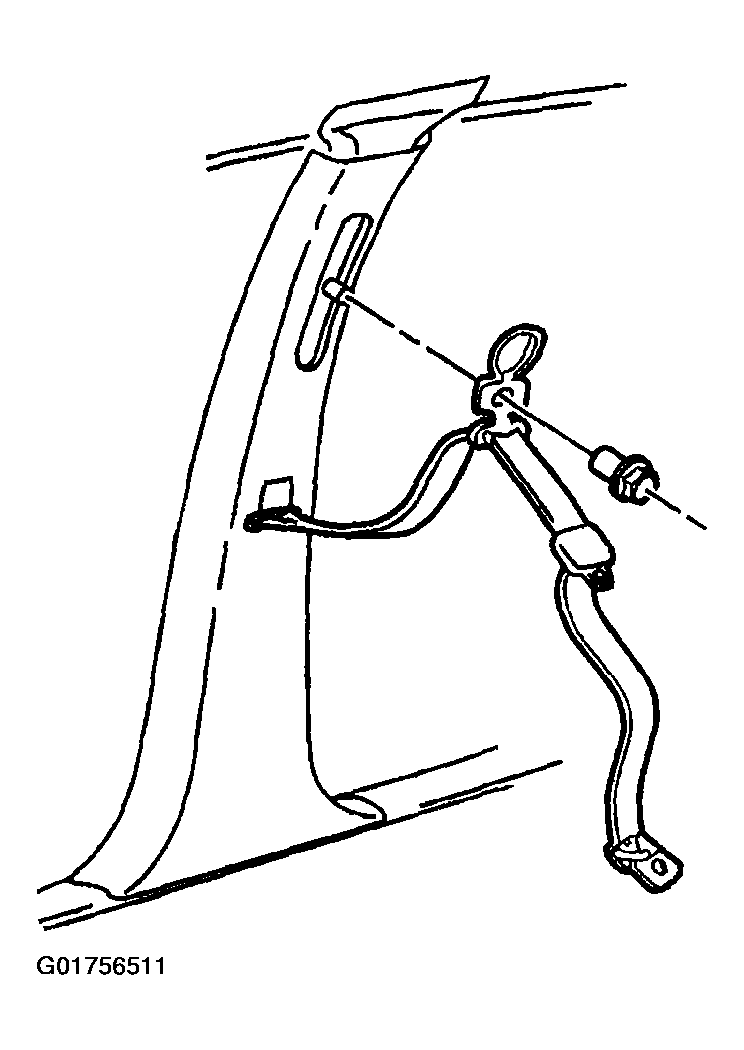

    Fig 1: Identifying Right Front Seat Belt Retractor Guide Loop Nut
    G01756511Courtesy of GENERAL MOTORS CORP.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  5. Remove the intermediate guide bolts.
    Fig 2: Identifying Intermediate Guide Bolts
    G01756512Courtesy of GENERAL MOTORS CORP.
  6. Remove the anchor plate nut from the seat stud.

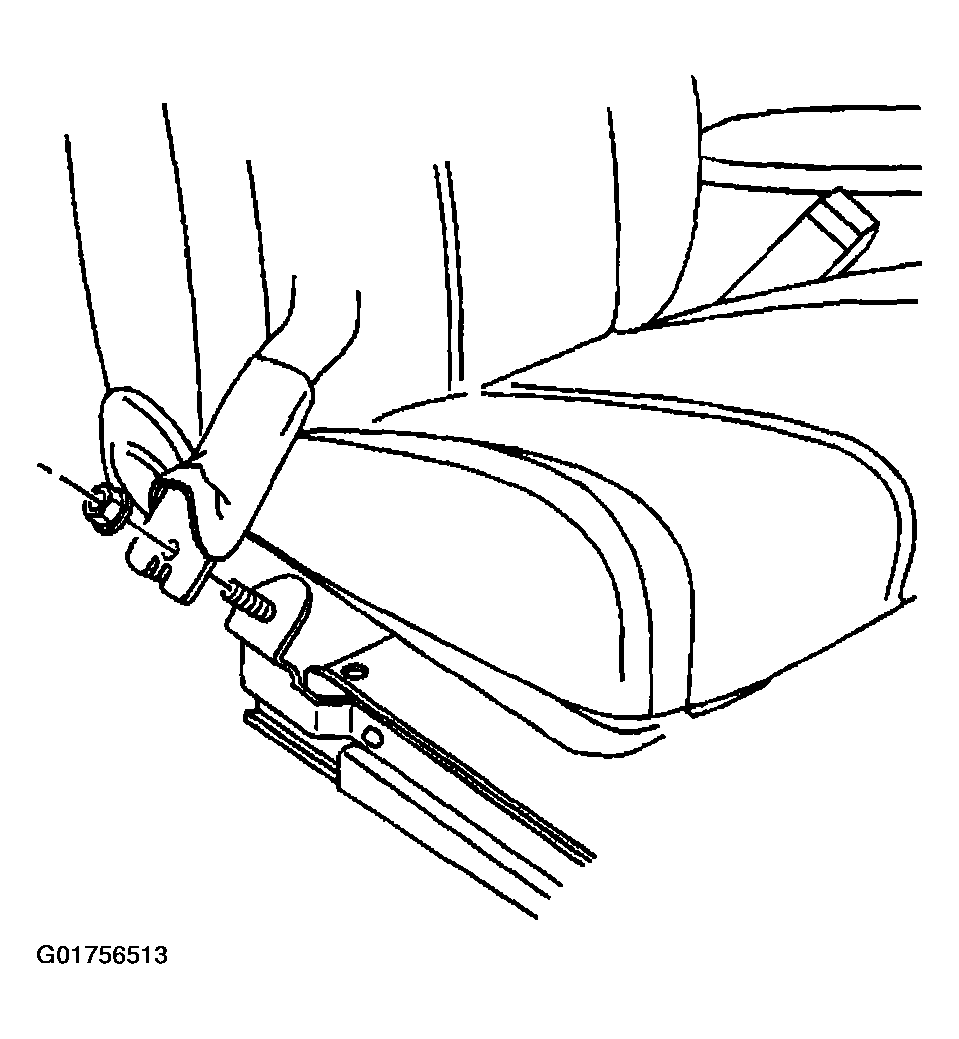

    Fig 3: Identifying Seat Stud Anchor Plate Nut
    G01756513Courtesy of GENERAL MOTORS CORP.
  7. Remove the anchor plate from the seat stud.
  8. Remove the retractor side seat belt bolt.
  9. Remove the retractor side seat belt from the lower center pillar.
    Fig 4: Identifying Lower Center Pillar Seat Belt Retractor
    G01756514Courtesy of GENERAL MOTORS CORP.
