Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the left front seat to the forward position.
  2. Remove the nut from the seat belt buckle.
  3. Disconnect the electrical connector.
  4. Remove the seat belt buckle from the left front seat.

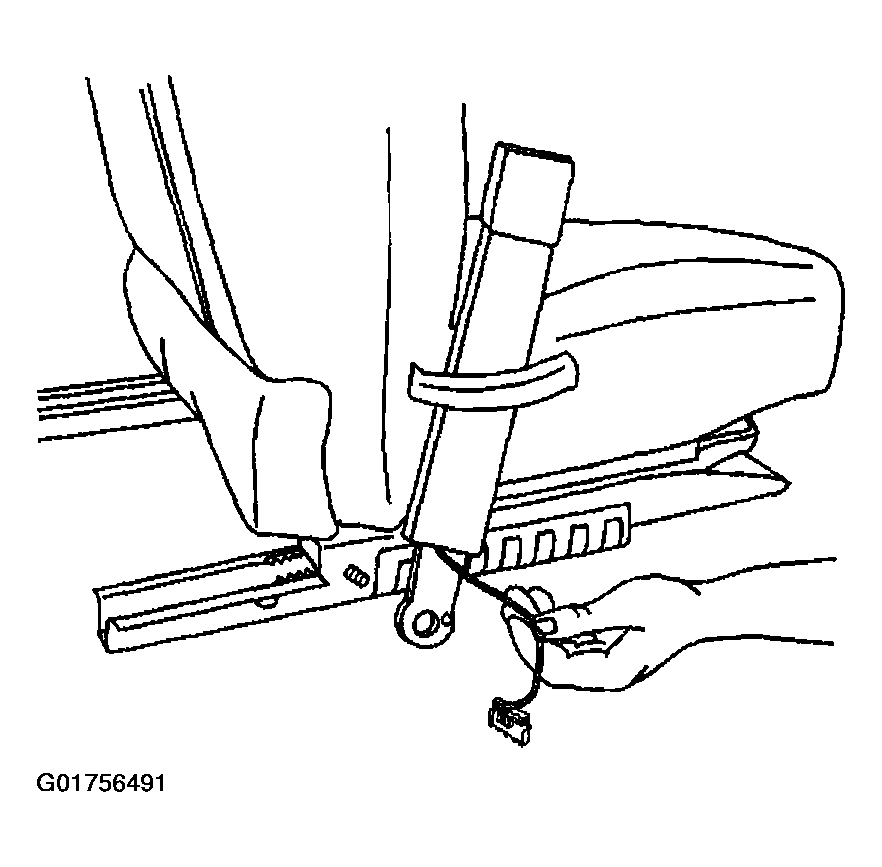

    Fig 1: Identifying Left Front Seat Belt Buckle
    G01756491Courtesy of GENERAL MOTORS CORP.
