Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bucket seat from the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .
  2. Remove the seat cushion cover and pad. Refer to Seat Cushion Cover Replacement - Front (All Except Luxury)  or Seat Cushion Cover Replacement - Front (Luxury Y91)  or Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .
  3. Remove lumbar support cable. Refer to Lumbar Support Cable Replacement (Luxury (Y91)) .
  4. Remove the seat back hinge bolts from the right side of the seat frame.

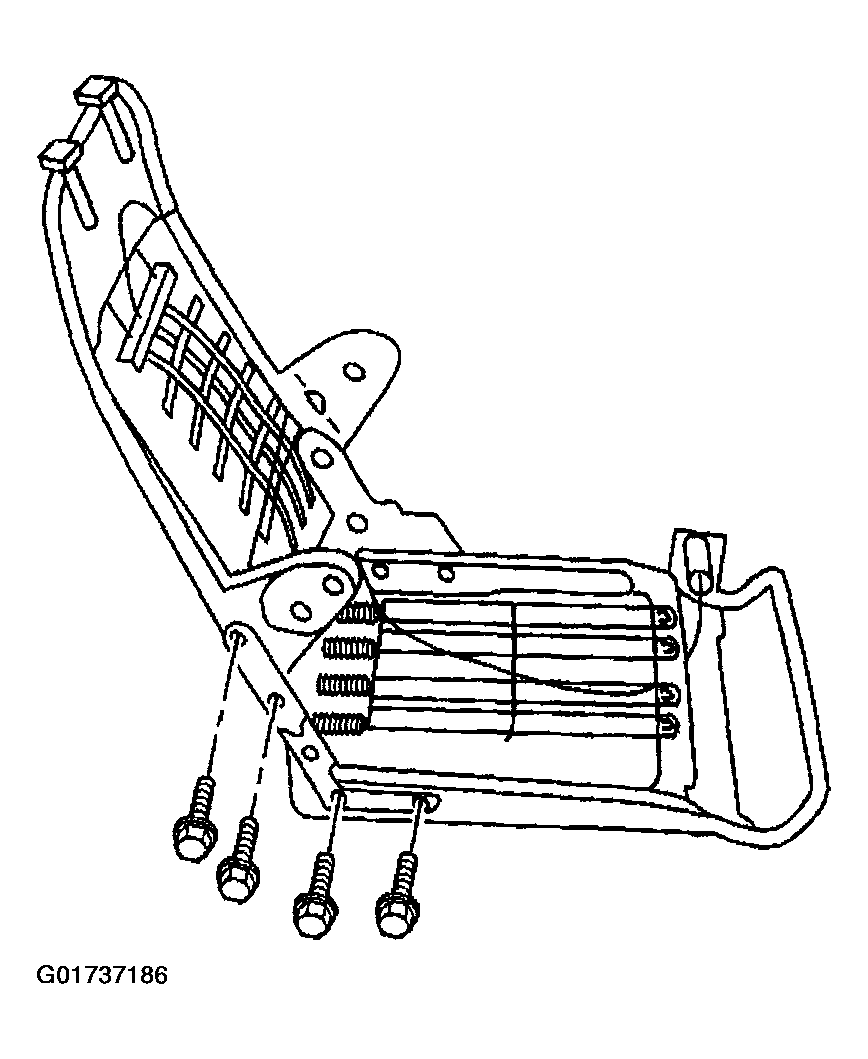

    5. Fig 1: Removing Seat Back Hinge Bolts From Right Side
    G01737186Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back hinge bolts from the left side of the seat frame.

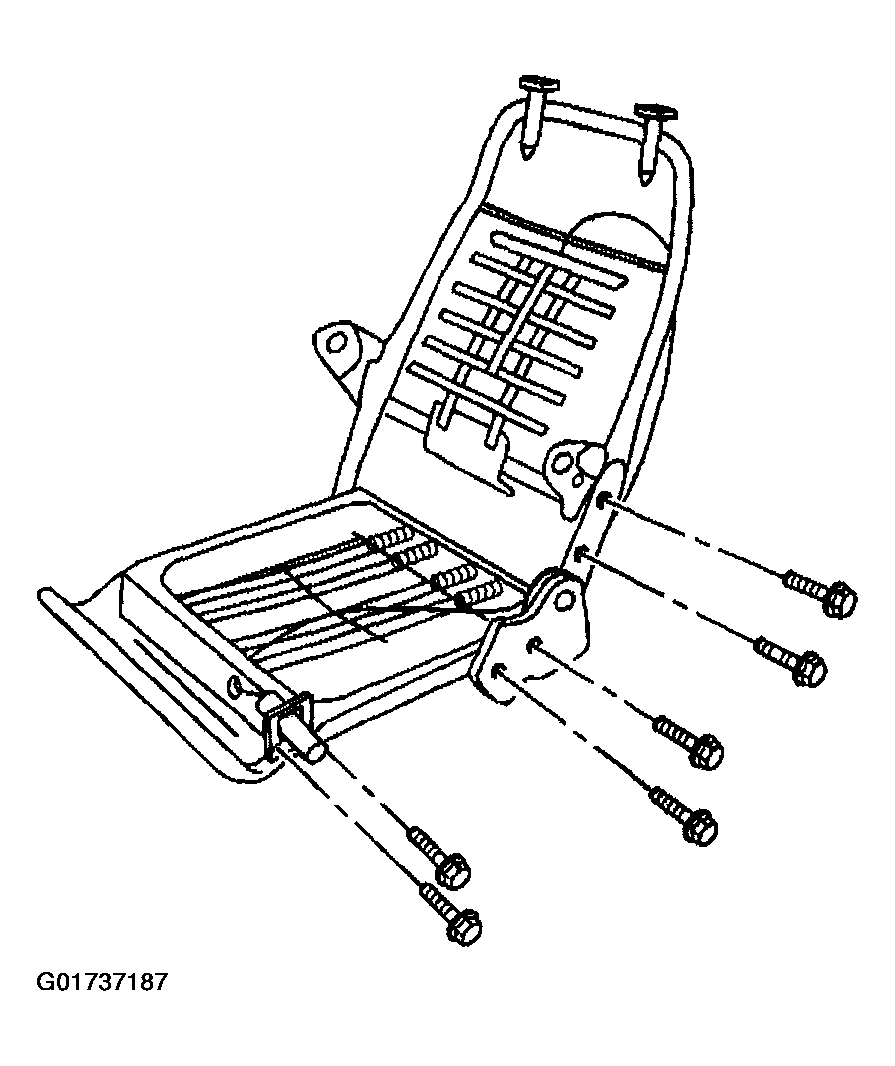

    6. Fig 2: Removing Seat Back Hinge Bolts From Left Side
    G01737187Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat cushion frame from the seat back frame.
