Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover (1) to the foam pad (2).
  2. Engage the hook and loop strips that retain the seat cushion cover to the foam pad.
  3. Install the seat belt buckles. Refer SEAT BELT BUCKLE REPLACEMENT - REAR (ALL EXCEPT LUXURY) or SEAT BELT BUCKLE REPLACEMENT - REAR (LUXURY (Y91)) .
  4. Install the hog rings in order to retain the seat cushion cover to the seat cushion frame (3).
  5. Install the seatback to the seat cushion. Refer to Seat Back Cover and Pad Replacement - Rear (All Except Luxury)  or Seat Back Cover and Pad Replacement - Rear (Luxury Y91)
  6. Install the rear passenger seat risers. Refer to Seat Riser Replacement - Rear .
  7. Install the rear passenger seat to the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .

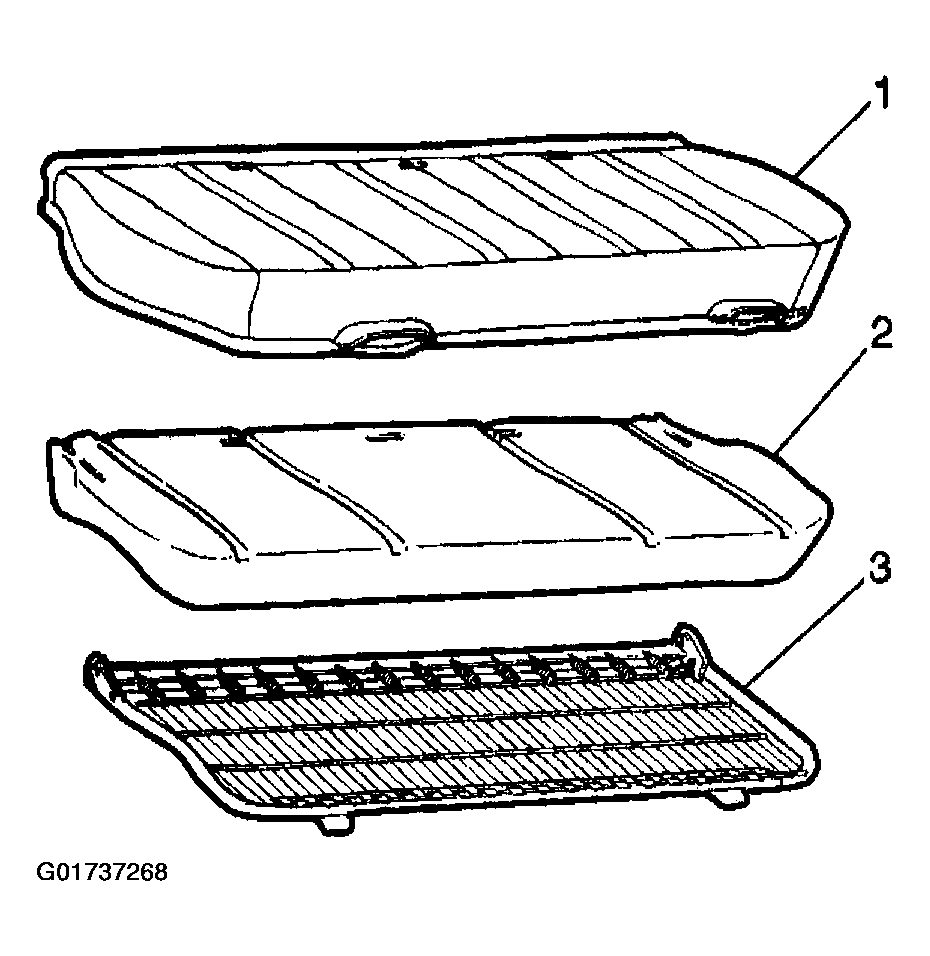

Fig 1: Installing Hog Rings & Hook & Loop Strips
G01737268Courtesy of GENERAL MOTORS CORP.
