Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bench seat from the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .
  2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (All Except Luxury)  or Seat Back Cover and Pad Replacement - Rear (Luxury Y91)  .
    CAUTION: Important:  Note the position and the length of the bolts removed. This will assist with reassembly.
  3. Remove the right and left bolts that retain the seat back frame to the seat back hinges.

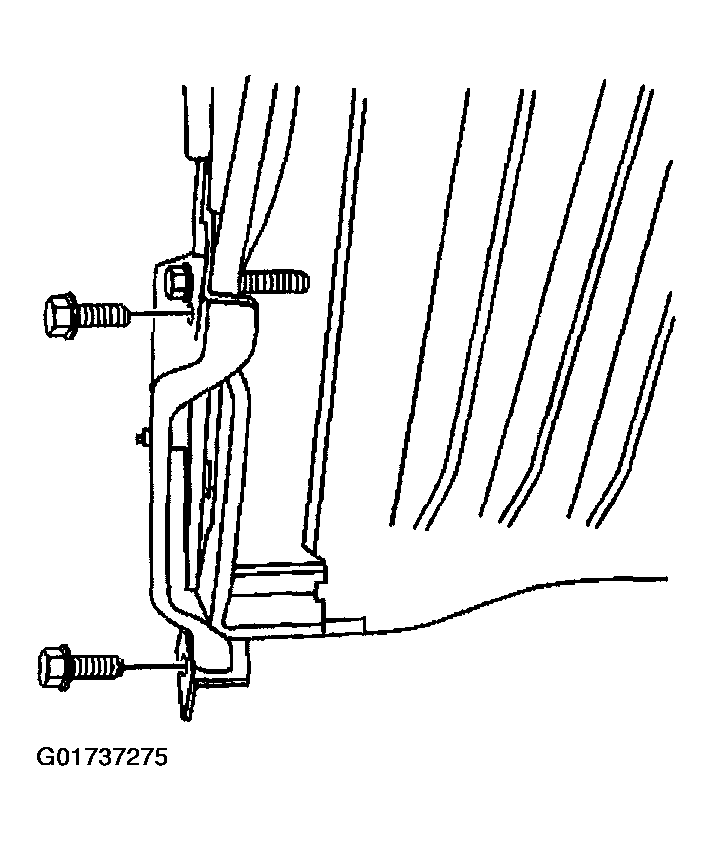

    Fig 1: Removing Bolts Retaining Seat Back Frame
    G01737275Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat back frame.

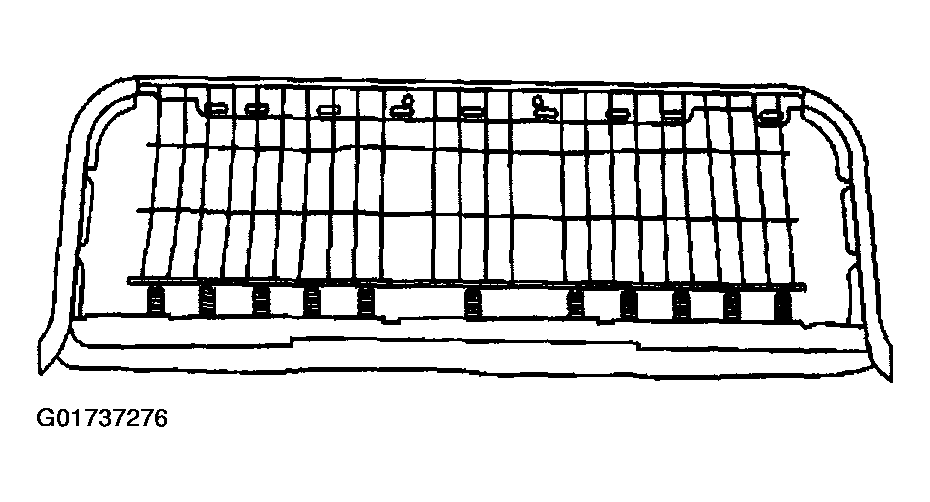

Fig 2: Removing Seat Back Frame
G01737276Courtesy of GENERAL MOTORS CORP.
