Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the recliner handle cover (4) from the recliner mechanism (2).
  2. Remove the screw that retains the recliner handle (3) to the recliner mechanism.
  3. Remove the recliner handle from the recliner mechanism.

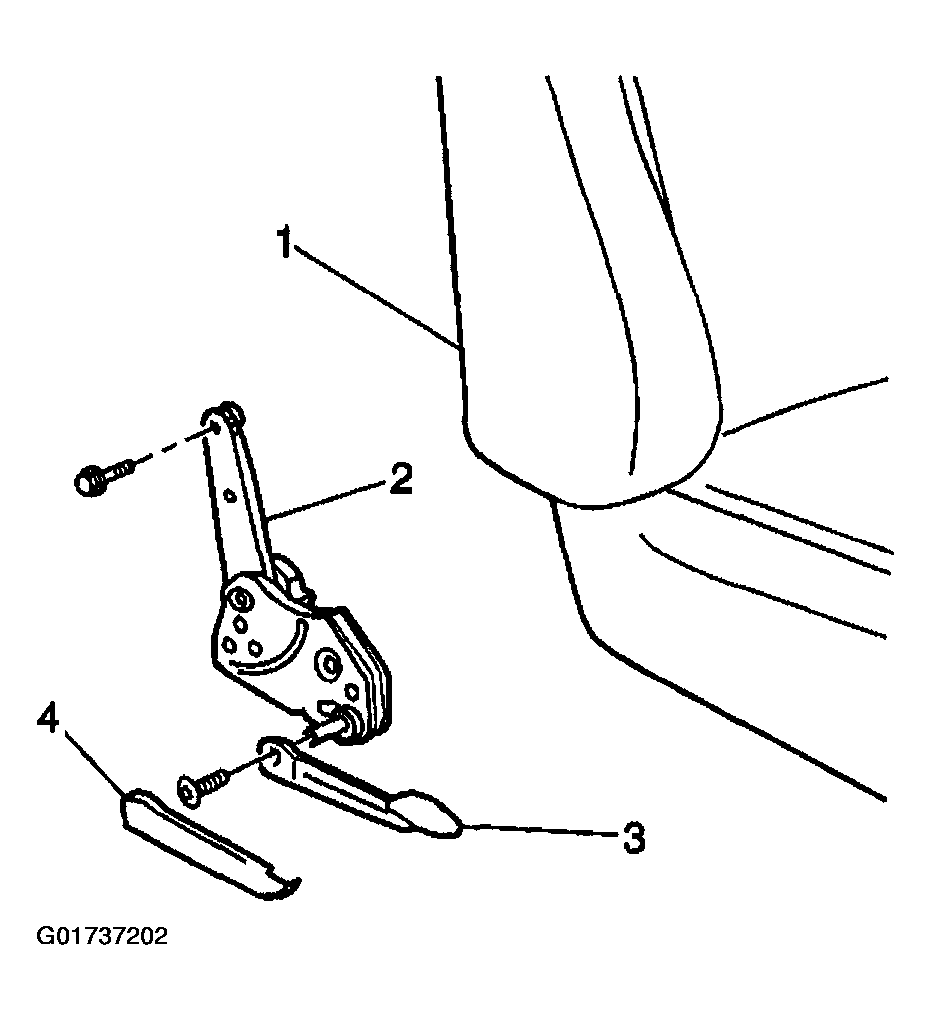

Fig 1: Removing Seat Back Recliner Handle - Front (All Except Luxury)
G01737202Courtesy of GENERAL MOTORS CORP.
