Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar plate to the seat back frame.
    Fig 1: Installing Lumbar Plate To Seat Back Frame
    G01737209Courtesy of GENERAL MOTORS CORP.
  2. Snap the corners of the lumbar plate to the seat back frame.

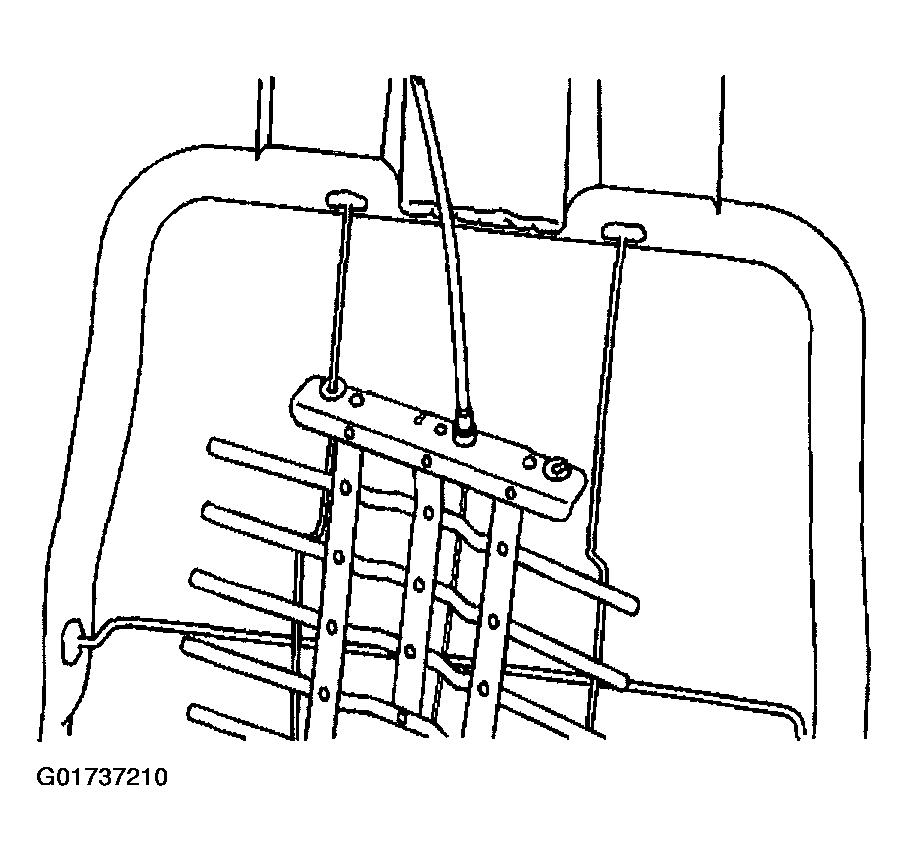

    Fig 2: Snapping Corners Of Lumbar Plate To Seat Back Frame
    G01737210Courtesy of GENERAL MOTORS CORP.
  3. Install the lumbar plate cable (1) to the lumbar plate.
  4. Install the seat back cover and pad to the seat back frame. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .
  5. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .

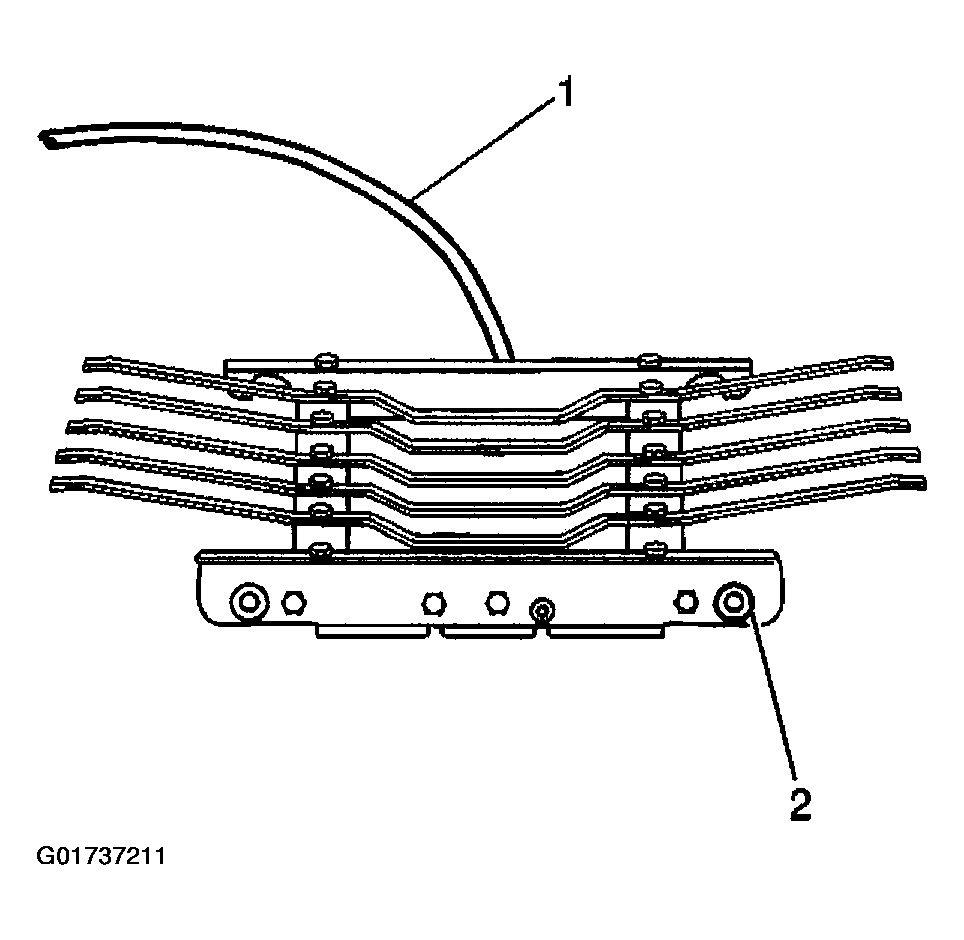

Fig 3: Installing Lumbar Plate Cable To Lumbar Plate
G01737211Courtesy of GENERAL MOTORS CORP.
