Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M Release Agent or the equivalent, if needed, in order to remove the right rear door weather-strip from the top of the door.
  2. Pull the right rear door weather-strip in order to remove the weather-strip from the channel on the side of the door.
  3. Remove the right rear door weather-strip and the retainers from the bottom of the door.
  4. Clean the door of all of the old adhesive.

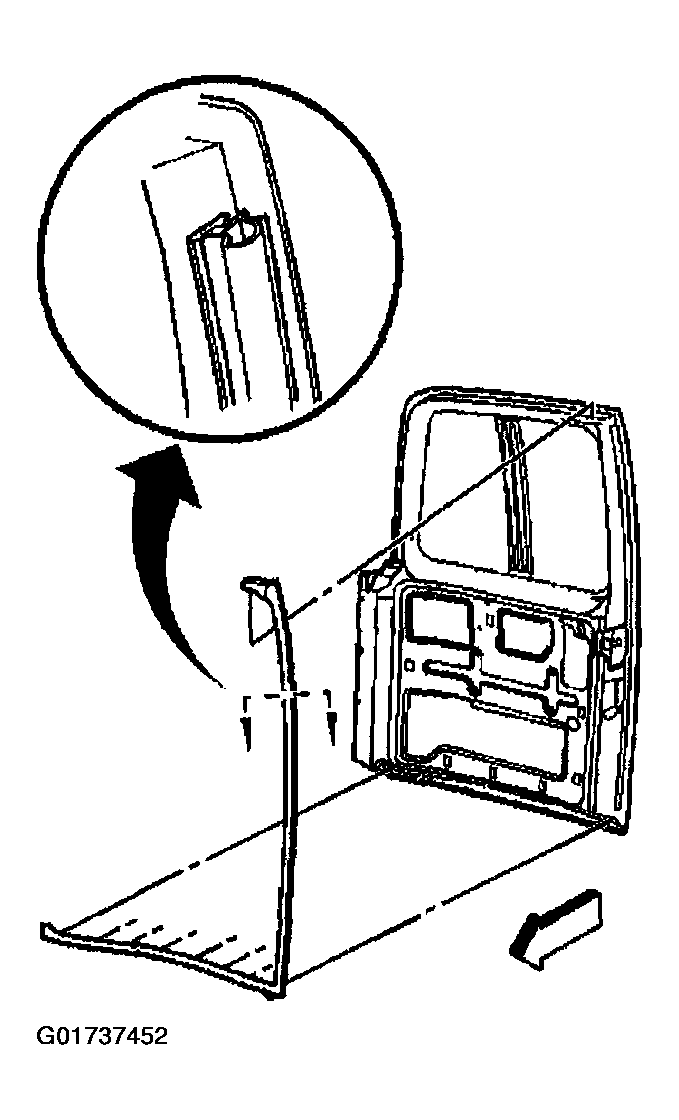

    Fig 1: Removing Right Rear Door Weatherstrip
    G01737452Courtesy of GENERAL MOTORS CORP.
