Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pull out the trim panel at the top of the window opening. Using a long flat-bladed suitable tool, pry the retaining clips apart in order to disengage the clips.
  2. Lift the left side rear door trim panel up in order to release the tabs on the left side rear door trim panel.
  3. Remove the left side rear door trim panel from the door.

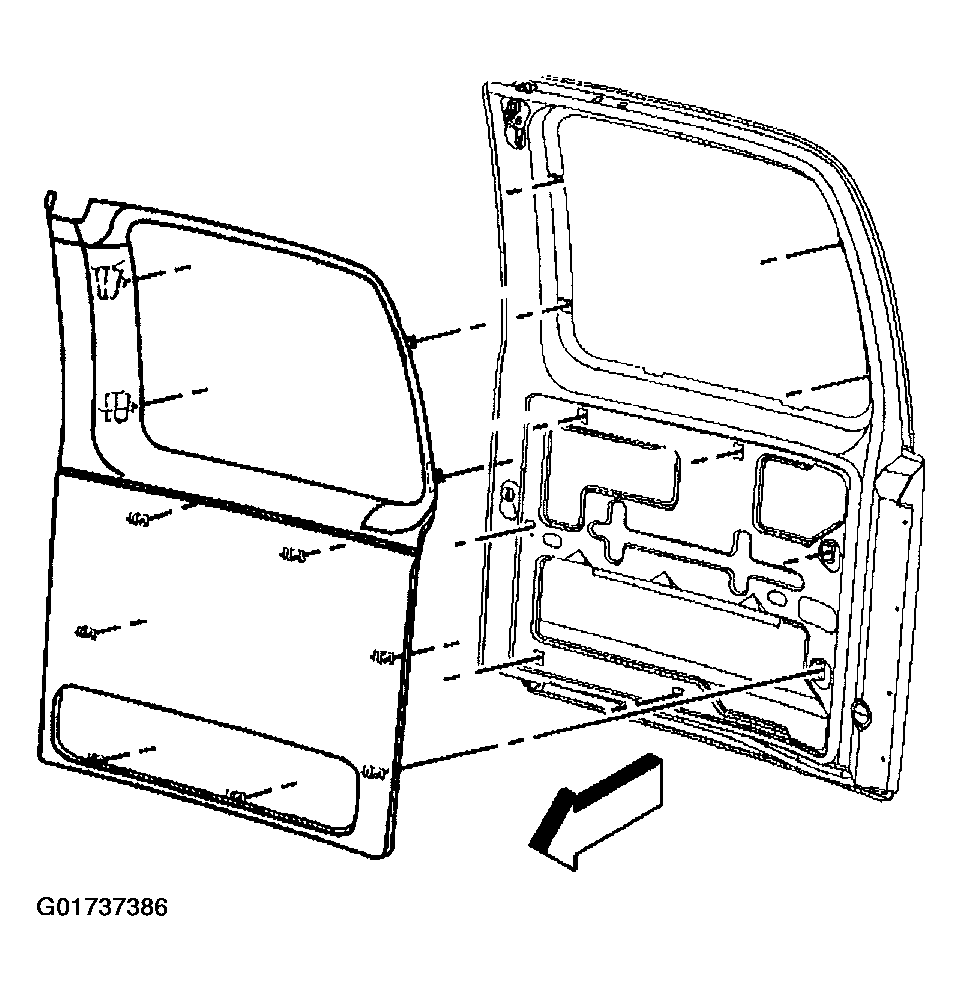

    Fig 1: Removing Left Side Rear Door Trim Panel
    G01737386Courtesy of GENERAL MOTORS CORP.
