Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure release valve.
  2. Align the retainers on the pressure release valve with the body. Press the valve into place.
  3. Install the tail lamp assembly. Refer to TAIL LAMP REPLACEMENT .
  4. Install the tail lamp filler panel. Refer to Tail Lamp, Back Body Opening Applique Replacement - Side .

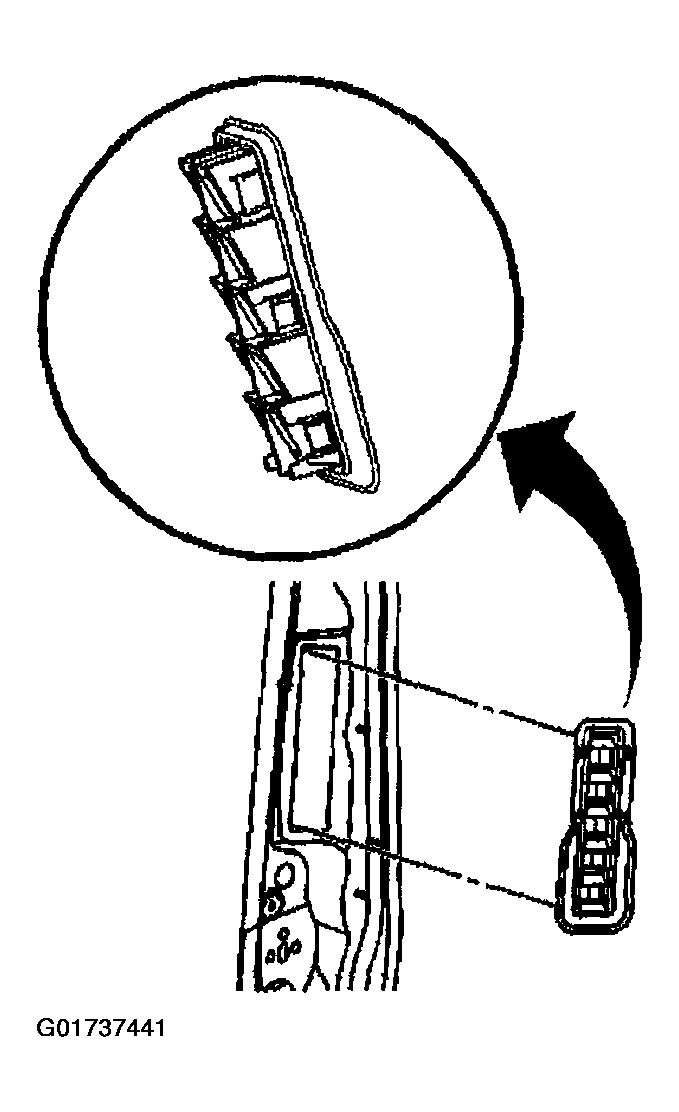

    Fig 1: Installing Pressure Relief Valve
    G01737441Courtesy of GENERAL MOTORS CORP.
