Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts (2) that retain the rear door lower striker (1) to the floor panel.
  2. Remove the rear door lower striker (1) from the floor panel.

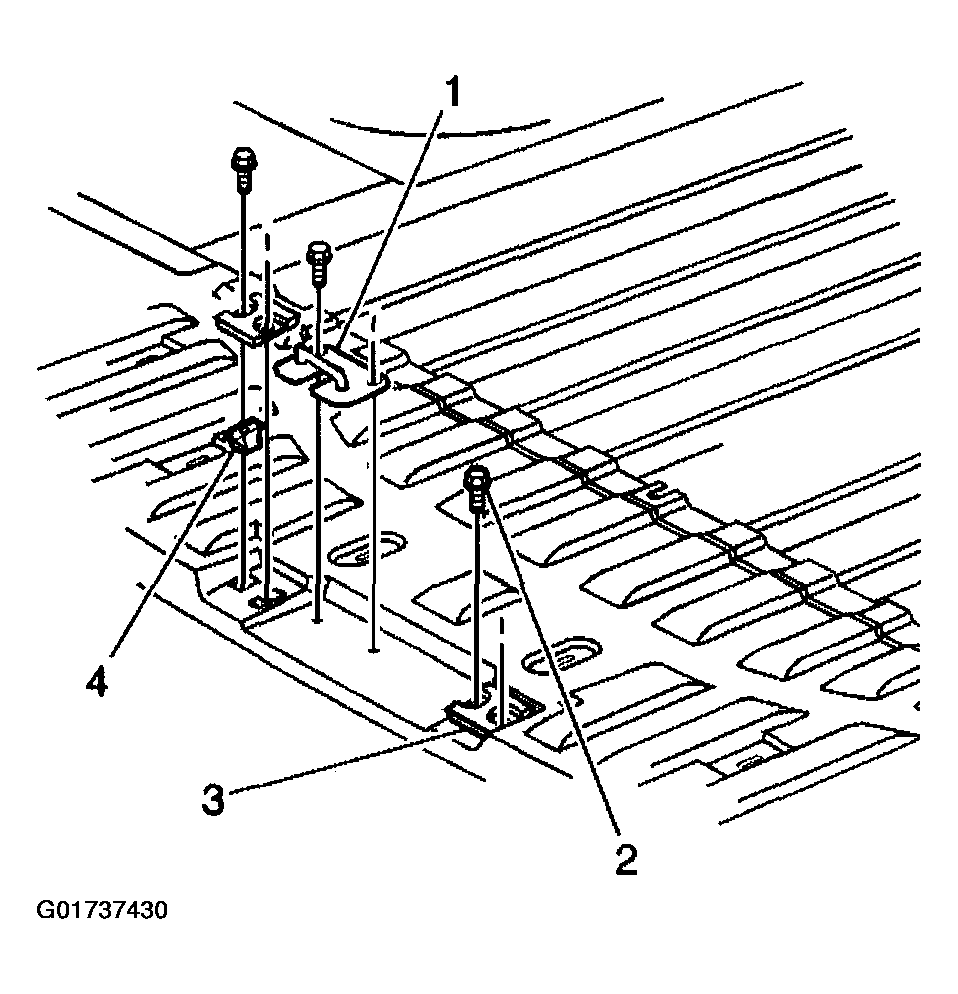

    Fig 1: Removing Lower Lock Striker
    G01737430Courtesy of GENERAL MOTORS CORP.
