Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
  2. Remove the lock rod from the left side rear door lower latch (2).
  3. Remove the bolts (4) that retain the left side rear door lower latch (2) to the door.
  4. Remove the left side rear door lower latch (2) from the door.

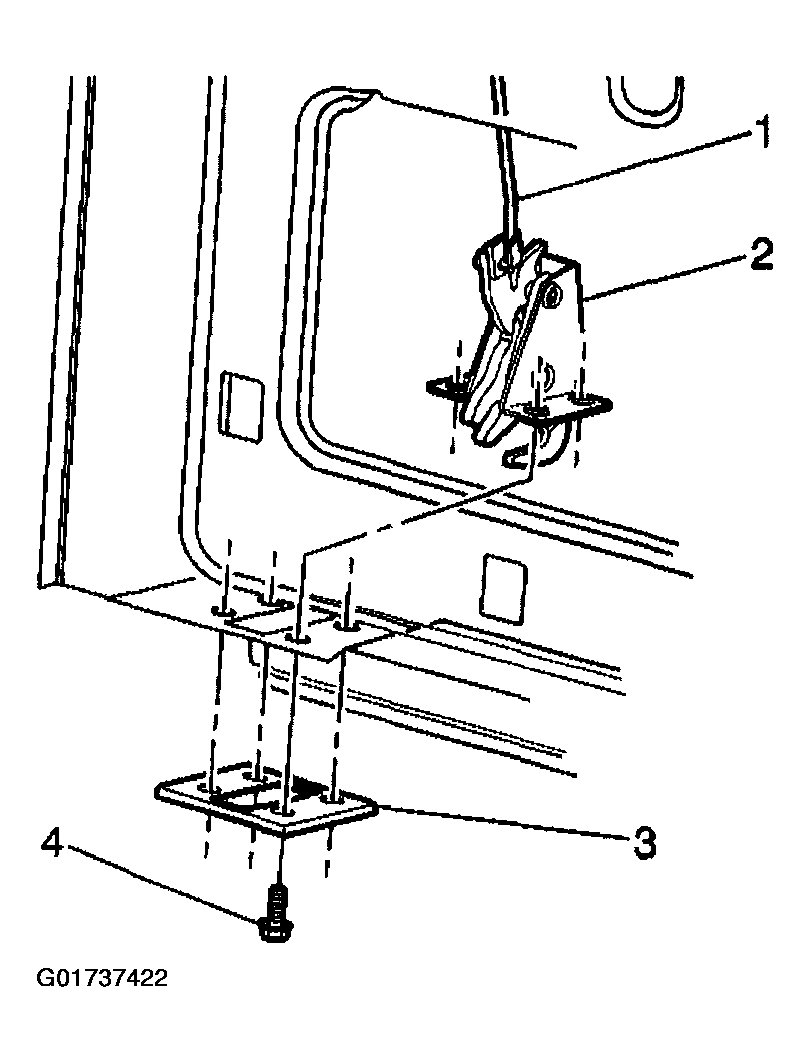

    Fig 1: Removing Lower Latch
    G01737422Courtesy of GENERAL MOTORS CORP.
