Stoplight Switch: Installation

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

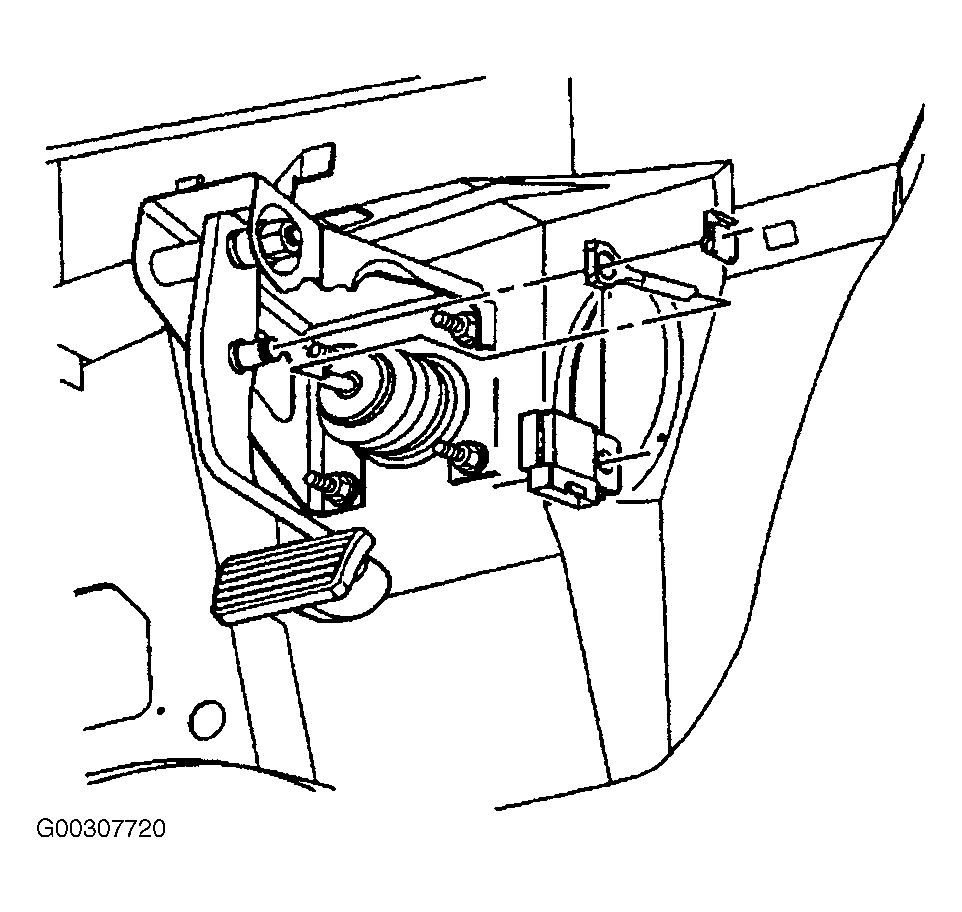

  1. Snap the stoplight switch onto the pushrod to the power brake booster. Install the stoplight switch with the pushrod on the brake pedal pin. See Figure .
  2. Connect the electrical connector to the stoplight switch. Connect the battery negative cable.
