Clutch Assembly: Installation
WARNING: This page is about a different car, the 2001 Chevrolet Tracker and 2000 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
To install, reverse removal procedure. Tighten pressure plate and flywheel bolts in a crisscross pattern to specification. See TORQUE SPECIFICATIONS . Fill transmission and transfer case with appropriate lubricant. See appropriate MANUAL TRANSMISSION article in TRANSMISSION SERVICING.
CLUTCH SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Disc Runout (Maximum) | .031 (0.80) | |
| Flywheel Runout (Maximum) | .004 (0.10) | |

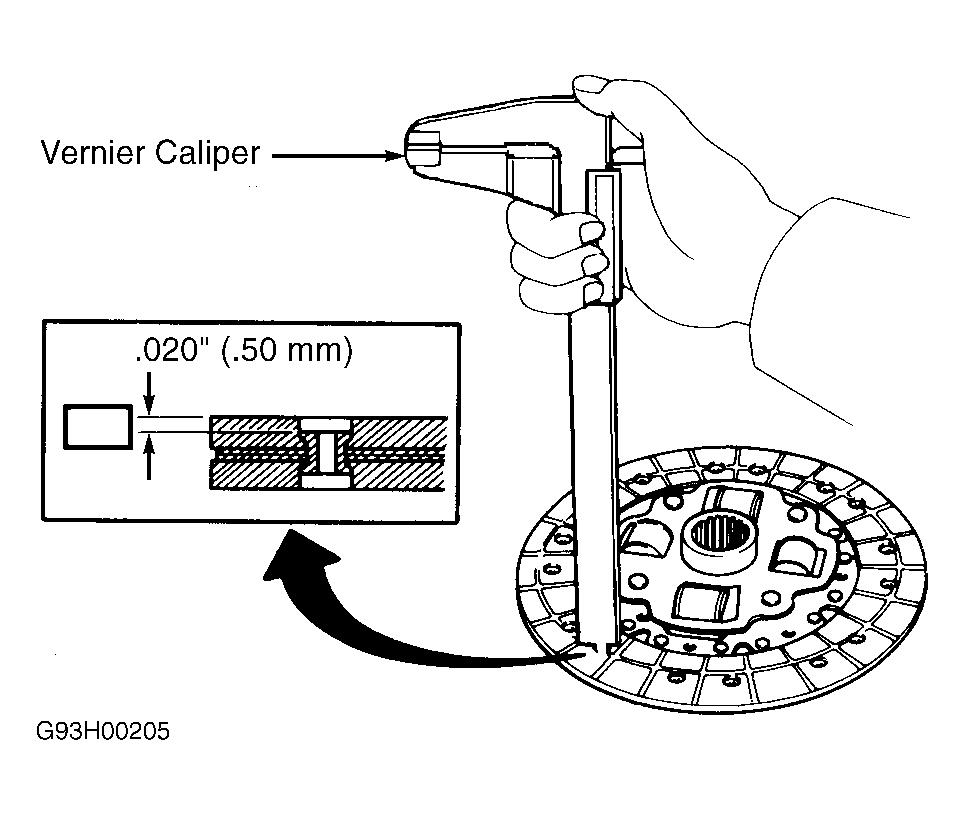

| Rivet Depth | ||
| Standard (NEW) | .060 (1.60) | |
| Service Limit | .020 (0.50) | |
