Description & Operation
WARNING: This page is about a different car, the 2001 Chevrolet Tracker and 2000 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.

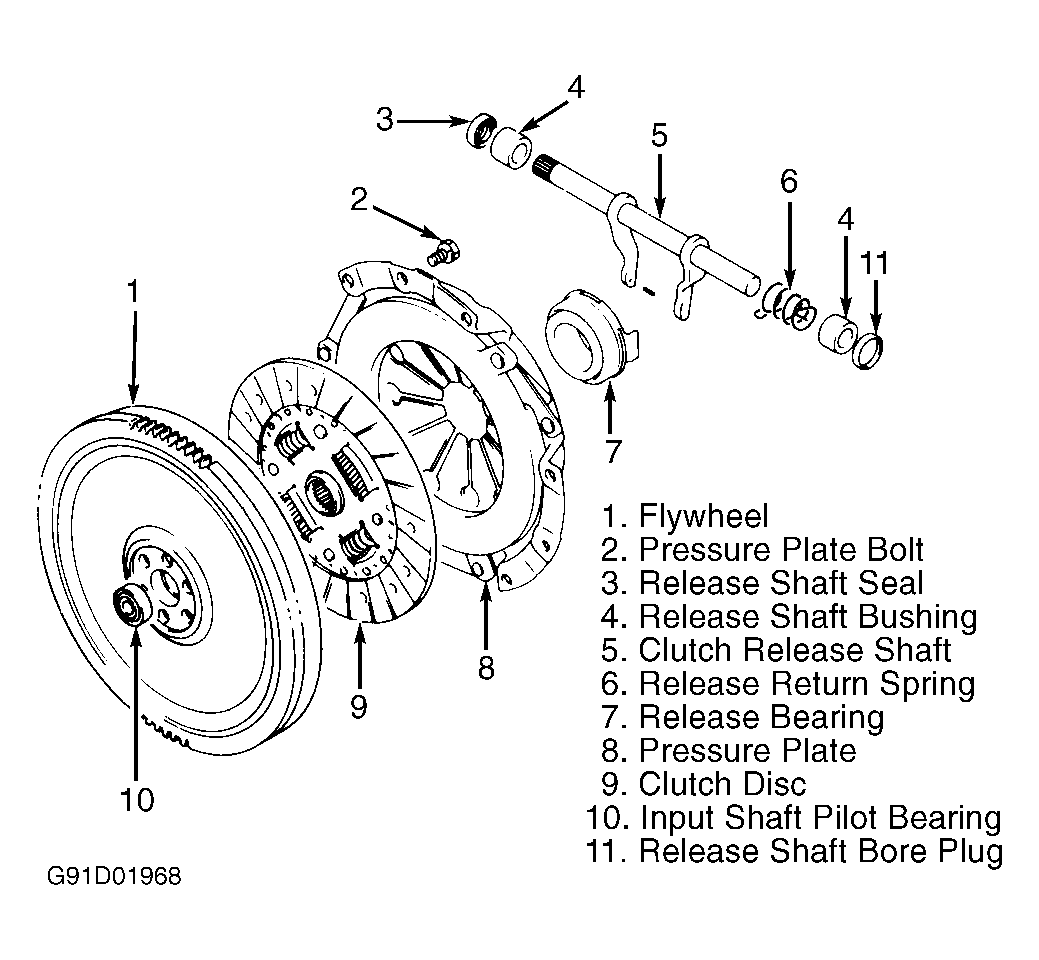

Clutch is a single-disc type. A diaphragm spring is used to engage pressure plate. Clutch is hydraulically operated by a clutch master cylinder and a transmission-mounted slave cylinder. See Fig 1 . A Clutch Pedal Position (CPP) switch is used to disable starter if clutch pedal is not fully depressed.
