Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the instrument panel cluster trim plate to the vehicle.
  2. Connect the headlamp switch and the heater control switch to the instrument panel cluster trim plate by pressing on the switches in order to engage the retainers.
  3. Rotate the instrument panel cluster trim plate clockwise over the steering column.
  4. Connect the electrical connectors to the switches in the instrument panel cluster trim plate.
  5. Press the instrument panel cluster trim plate in order to engage the retainers.
  6. Install the instrument panel cluster trim plate filler to the instrument panel cluster trim plate.
  7. Move the shift lever to the park position.
  8. Remove the blocks from the wheels.
  9. Release the parking brake.

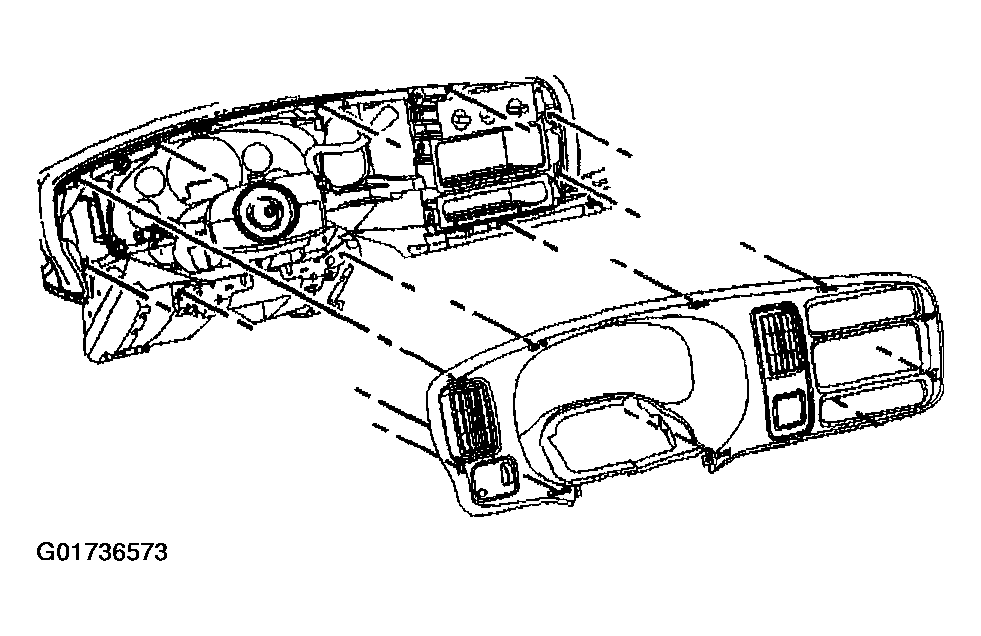

    Fig 1: Installing Trim Plate Bezel
    G01736573Courtesy of GENERAL MOTORS CORP.
