Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 12-volt power supply socket to the IP extension.
  2. Install the retaining ring (3) to the 12-volt power supply socket (2).
  3. Connect the electrical connectors (1) to the 12-volt power supply socket.
  4. Install the IP extension. Refer to Instrument Panel (I/P) Extension Replacement .
  5. Connect the negative battery cable.

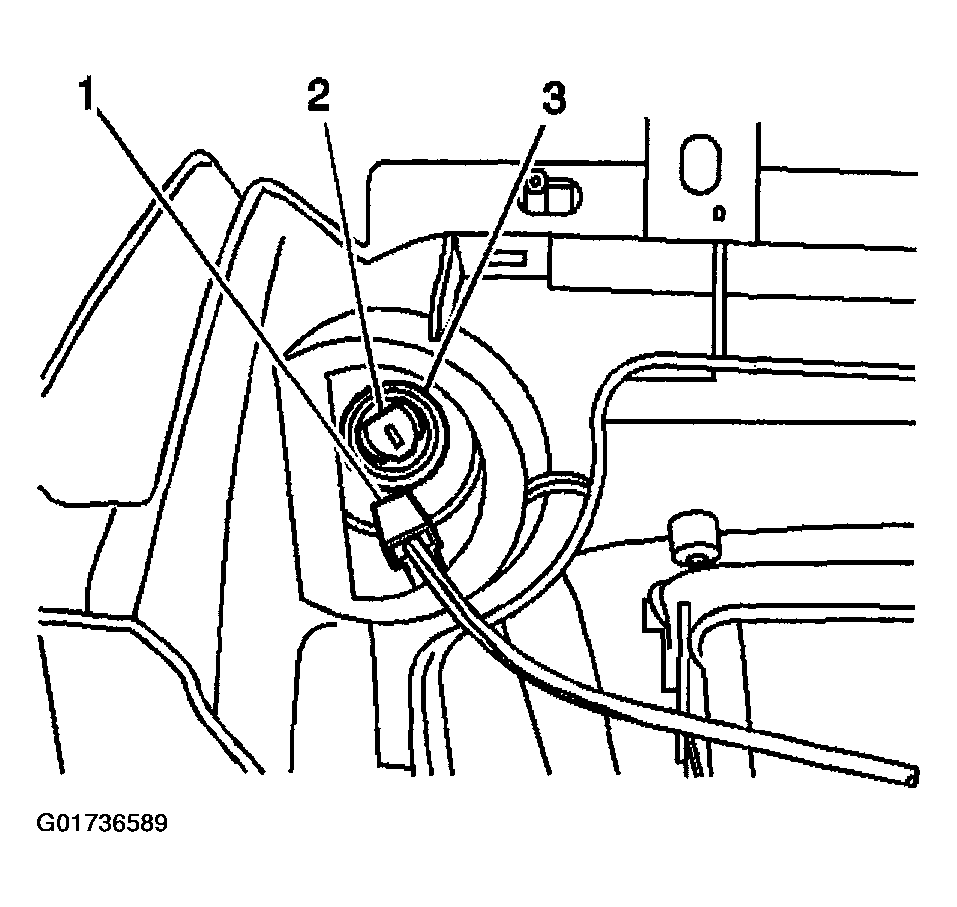

    Fig 1: Installing 12-Volt Power Supply
    G01736589Courtesy of GENERAL MOTORS CORP.
