Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (4) that retains the side marker or the reflector to the radiator grille.
  2. Remove the side marker lamp (3) or the reflector (5) from the radiator grille.
  3. Disconnect the bulb socket (2) from the side marker lamp.
  4. Remove the bulb (2) from the socket by turning the bulb in a counterclockwise direction.

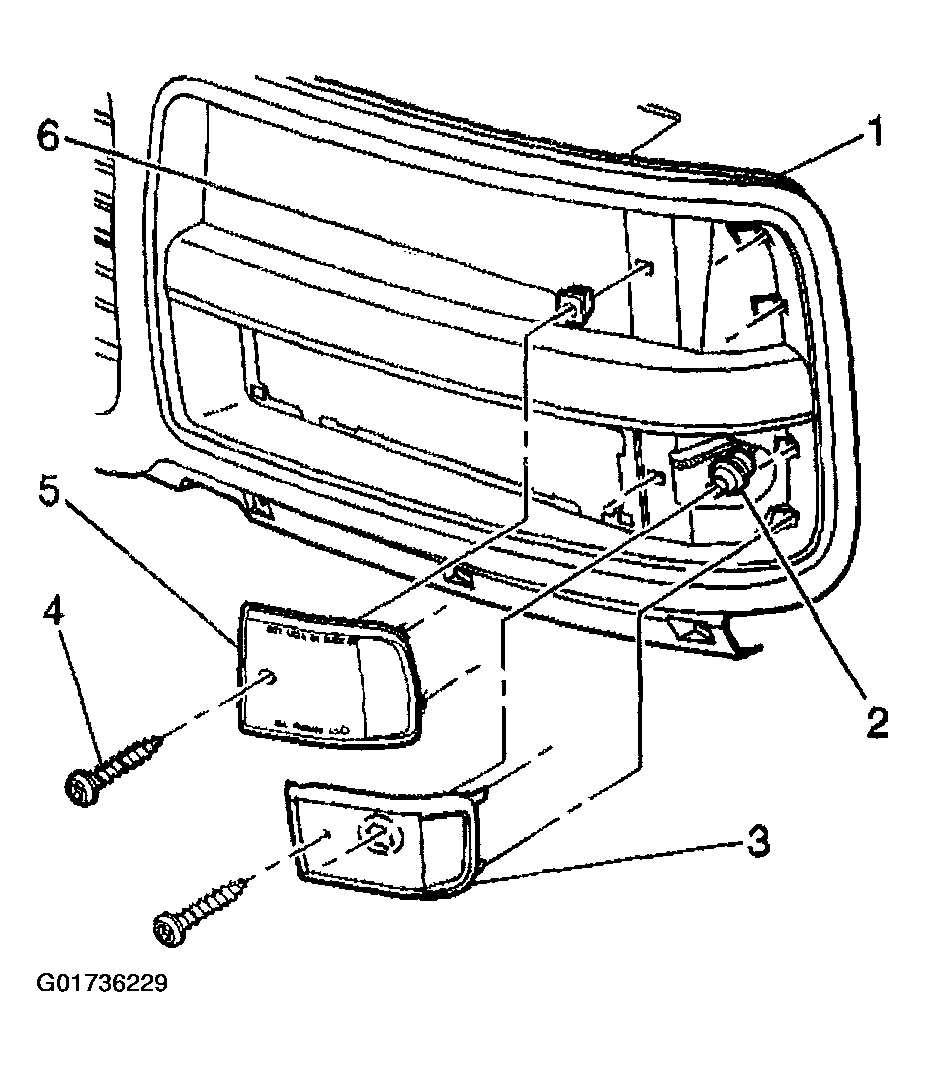

    Fig 1: Removing (RPO X88/Z88) Components
    G01736229Courtesy of GENERAL MOTORS CORP.
