Headlamps Inoperative - High Beams

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

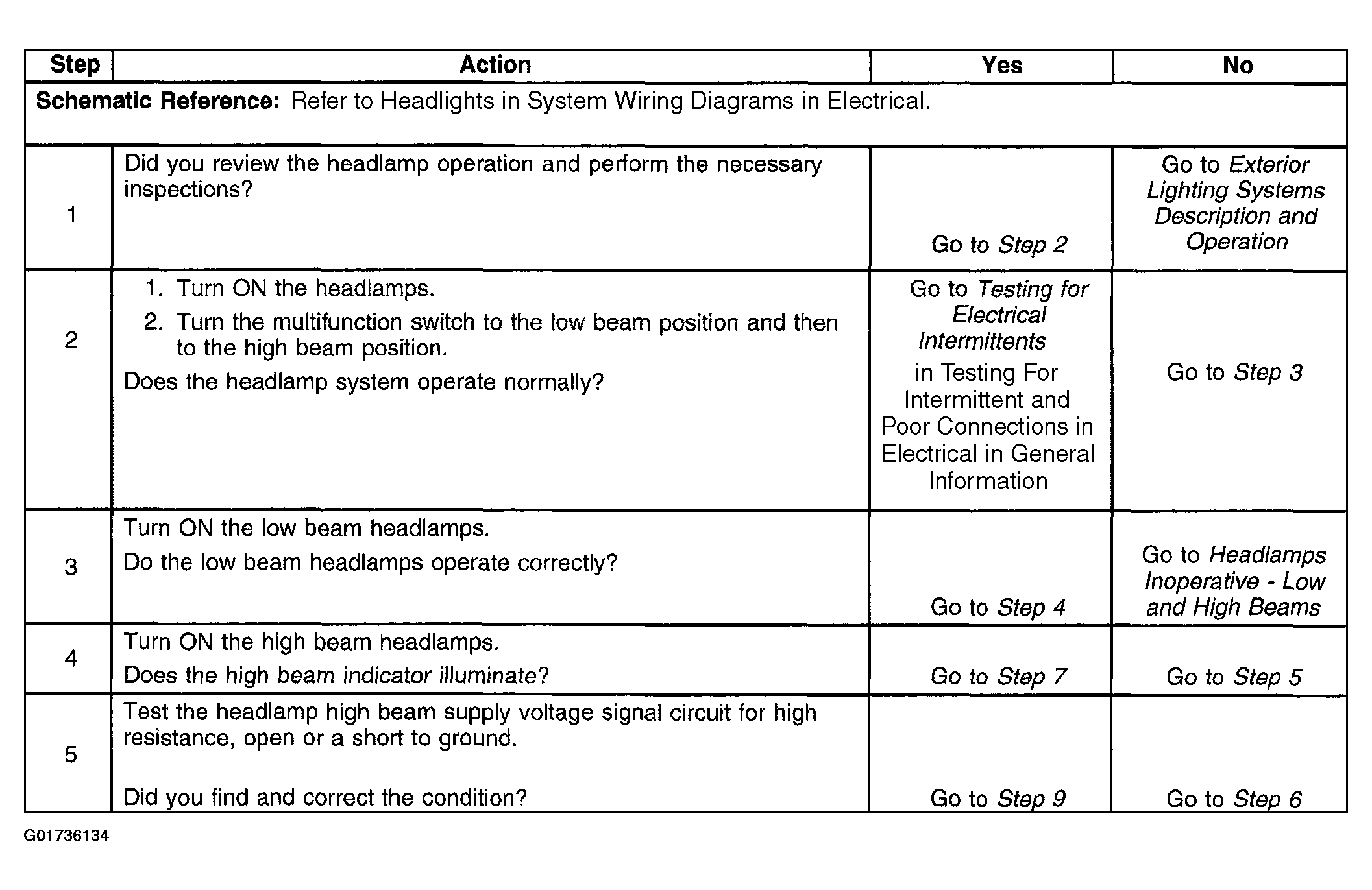

Fig 1: Headlamps Inoperative - High Beams (1 Of 2)
G01736134Courtesy of GENERAL MOTORS CORP.

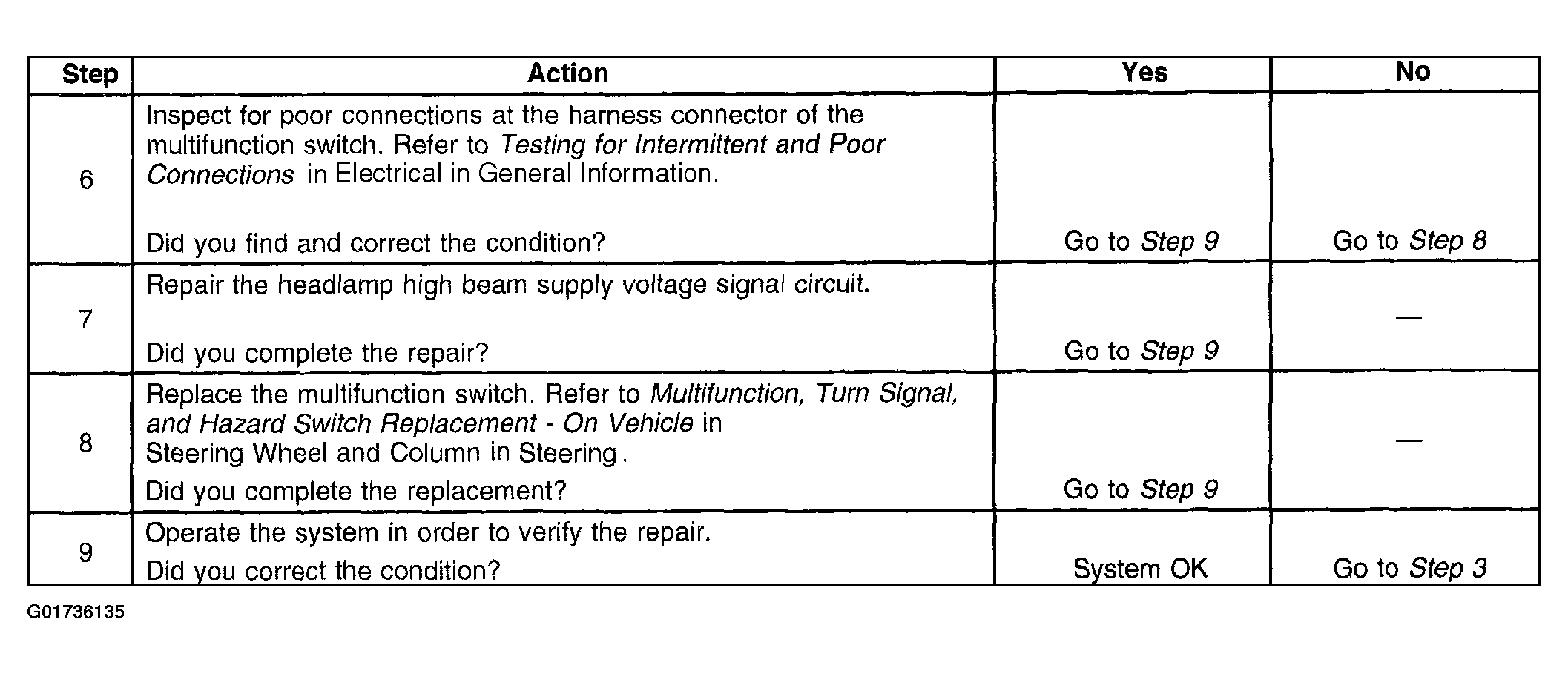

Fig 2: Headlamps Inoperative - High Beams (2 Of 2)
G01736135Courtesy of GENERAL MOTORS CORP.
