Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator tube.
    • Lubricate the O-ring with engine oil and make sure it is in place.
    • Make sure the assembly is fully seated in the engine block.
  2. Install the oil level indicator tube nut.

    Tighten:

    Tighten the nut to 19 N.m (14 lb ft)

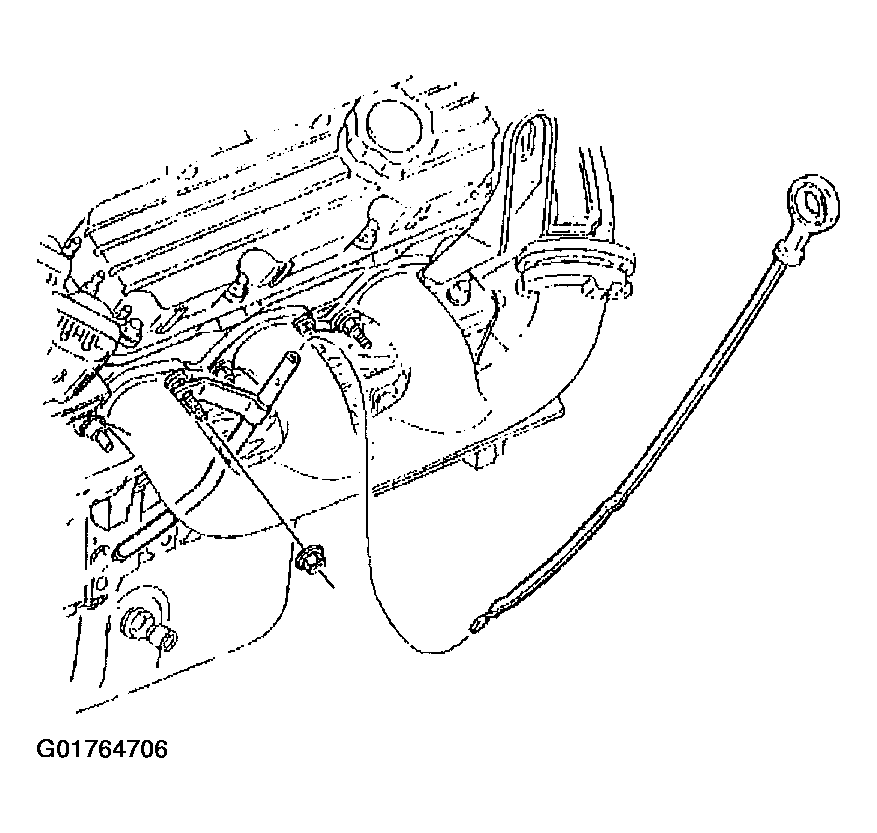

    Fig 1: Oil Level Indicator and Tube
    G01764706Courtesy of GENERAL MOTORS CORP.
