Drive Belt Idler Pulley Bracket Installation (L67)

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley bracket.
  2. Install the drive belt idler pulley bracket bolts.

    Tighten:

    Tighten the drive belt idler pulley bracket bolts to 30 N.m (22 lb ft)

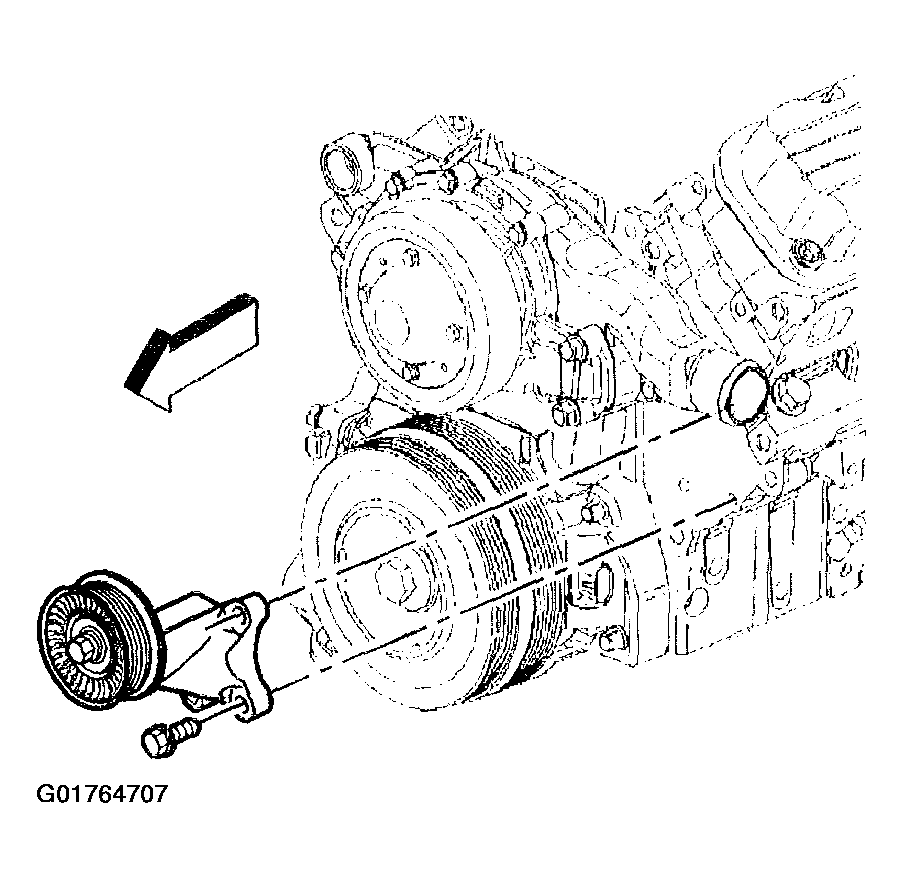

    Fig 1: Drive Belt Idler Pulley Bracket
    G01764707Courtesy of GENERAL MOTORS CORP.
