Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Discard the cylinder head bolts.
  3. Remove the cylinder head.
  4. Remove the cylinder head gasket.

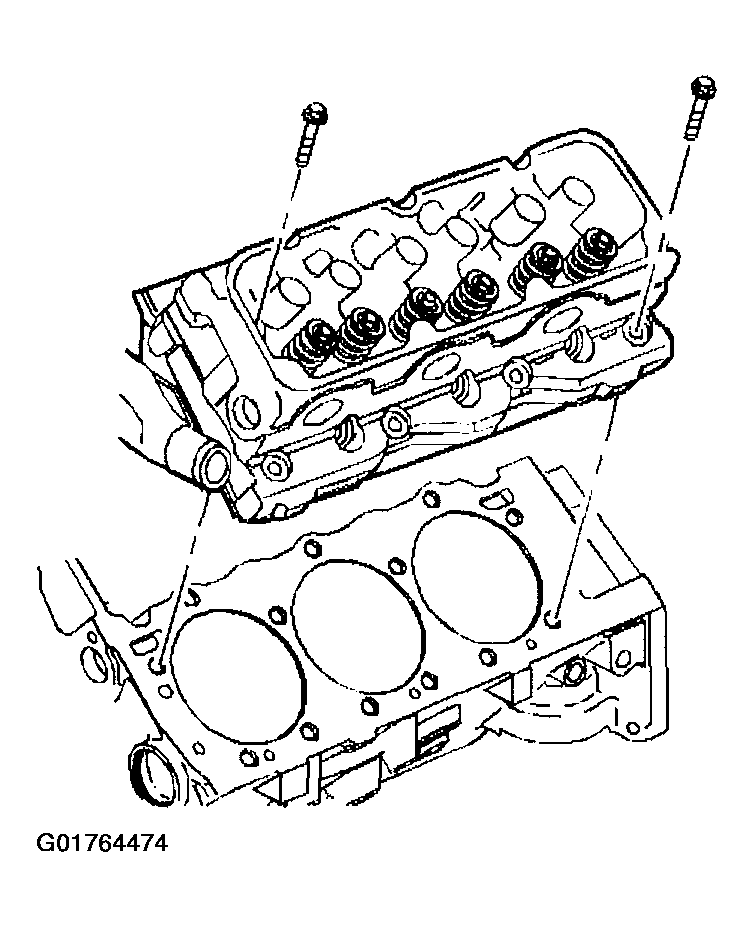

    Fig 1: Cylinder Head And Bolts, Right
    G01764474Courtesy of GENERAL MOTORS CORP.
