Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine front cover. Refer to Engine Front Cover Replacement

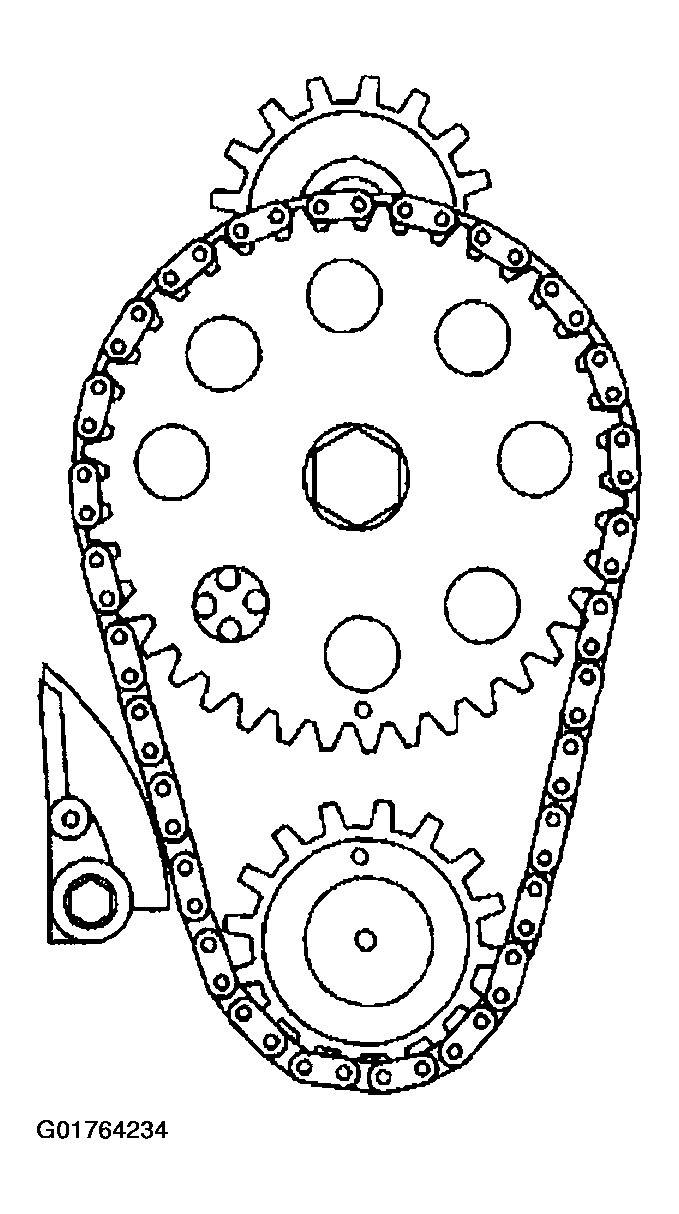

Align the timing marks on the sprockets so that they are as close as possible.

Fig 1: Timing Marks On The Sprockets
Courtesy of GENERAL MOTORS CORP.

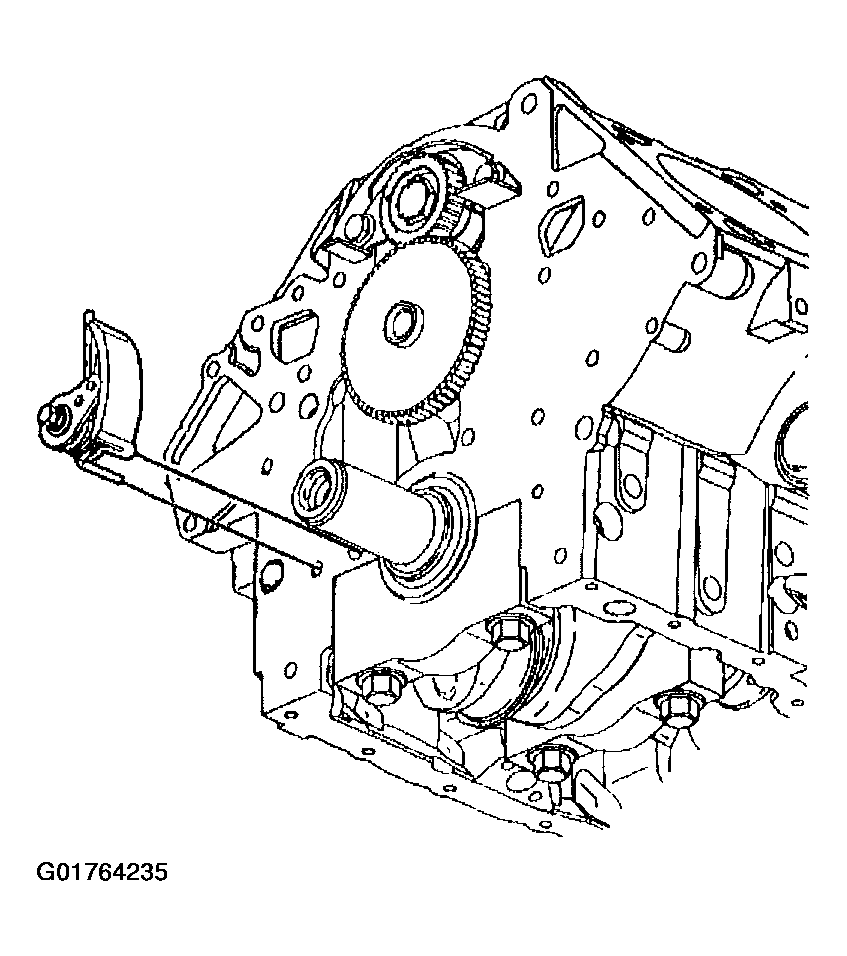

Remove the timing chain dampener.

Fig 2: Timing Chain Dampener
Courtesy of GENERAL MOTORS CORP.

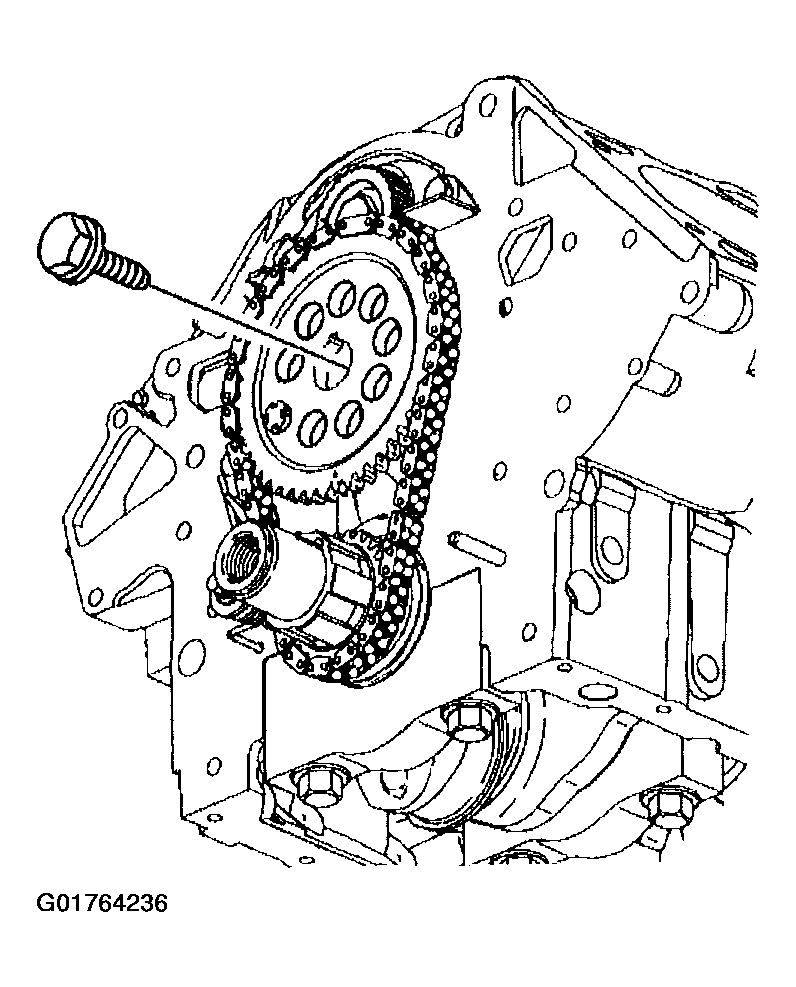

Remove the camshaft sprocket bolt.

Fig 3: Camshaft Sprocket Bolt
Courtesy of GENERAL MOTORS CORP.

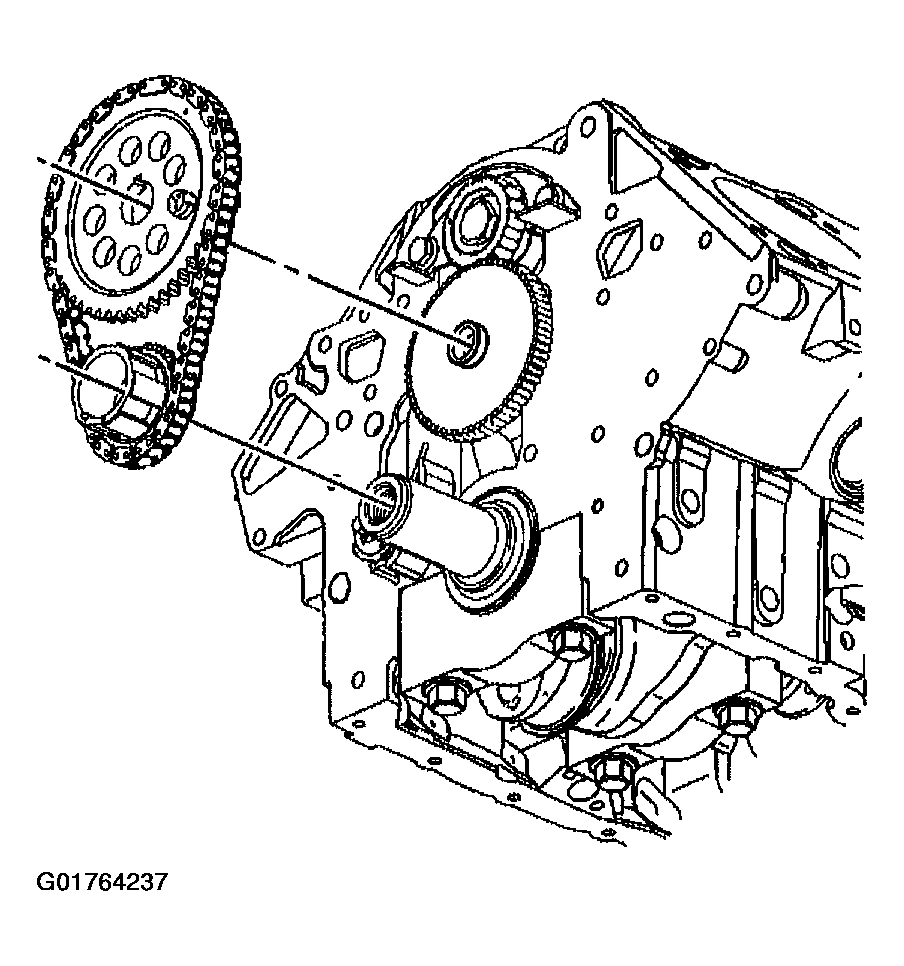

Remove the camshaft sprocket and the timing chain.
Important: If the sprocket does not come off easily, a light blow on the lower edge of the sprocket with a plastic mallet should dislodge the sprocket.
Remove the crankshaft sprocket.

Fig 4: Camshaft Sprocket, The Timing Chain And Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.

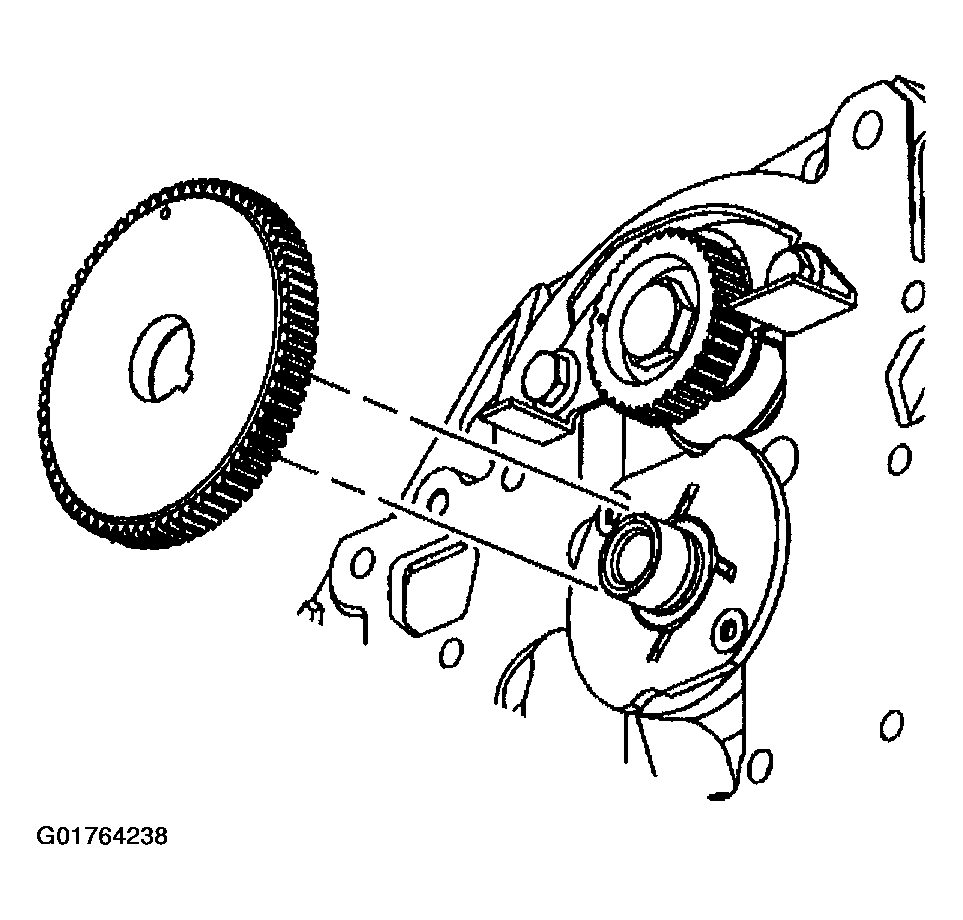

Remove the balance shaft drive gear in order to access the camshaft thrust plate, if required.

Fig 5: Balance Shaft Drive Gear
Courtesy of GENERAL MOTORS CORP.

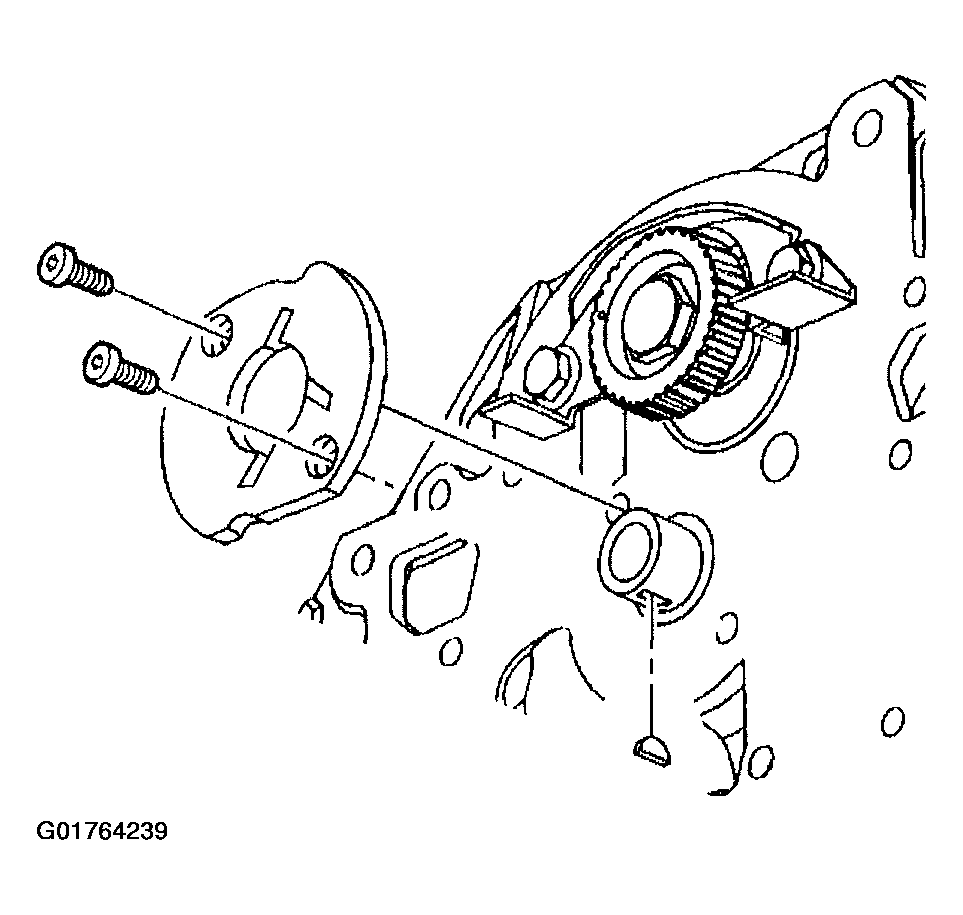

Remove the camshaft thrust plate bolts, if required.
Remove the camshaft thrust plate, if required.

Fig 6: Camshaft Thrust Plate And Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the balance shaft driven gear bolt, if required.
Remove the balance shaft driven gear, if required.

Fig 7: Balance Shaft Driven Gear And Bolt

Courtesy of GENERAL MOTORS CORP.

Clean and inspect all of the components for wear and/or damage. Refer to TIMING CHAIN AND SPROCKETS CLEANING AND INSPECTION or TIMING CHAIN AND SPROCKETS CLEANING AND INSPECTION
If the pistons have been moved in the engine, use the following procedure:
1. 13.1. Turn the crankshaft so that the number one piston is at top dead center.
2. 13.2. Turn the camshaft so that, with the sprocket temporarily installed, the timing mark is straight down.
