Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the O-ring is in place on the plug. Install the oil plug (1).

    Tighten:

    Tighten the oil plug (1) to 10 N.m (89 lb in)

    Fig 1: Oil Plug
    G01764115Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67)

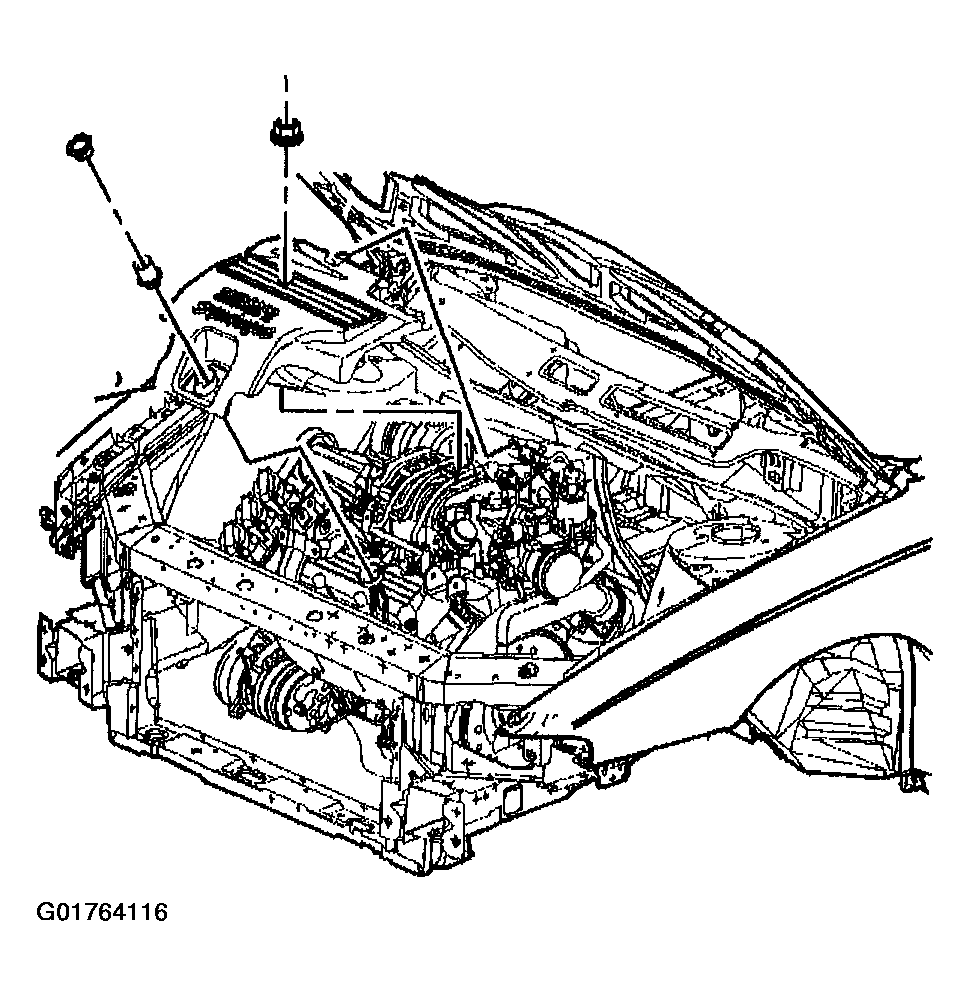

    Fig 2: Fuel Injector Sight Shield
    G01764116Courtesy of GENERAL MOTORS CORP.
