Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover and gasket.

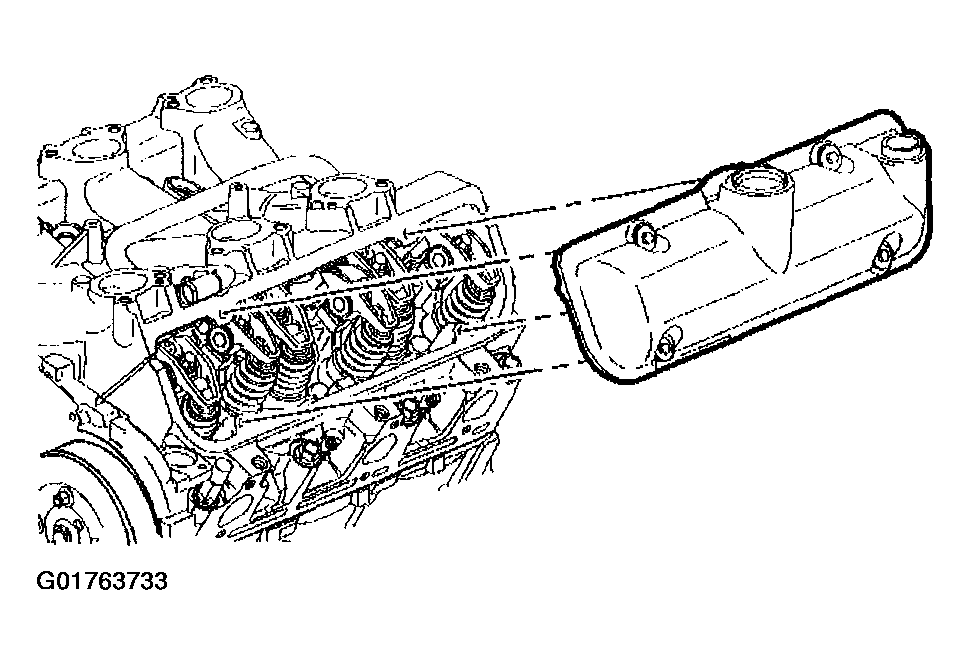

    Fig 1: Valve Rocker Arm Cover, Left
    G01763733Courtesy of GENERAL MOTORS CORP.
