Valve Lifter Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve lifter guide bolts.
  2. Remove the valve lifter guides.
    NOTE: Once removed, place the valve lifters in an organized order so the valve lifters can be installed into the original locations.
  3. Remove the valve lifters.

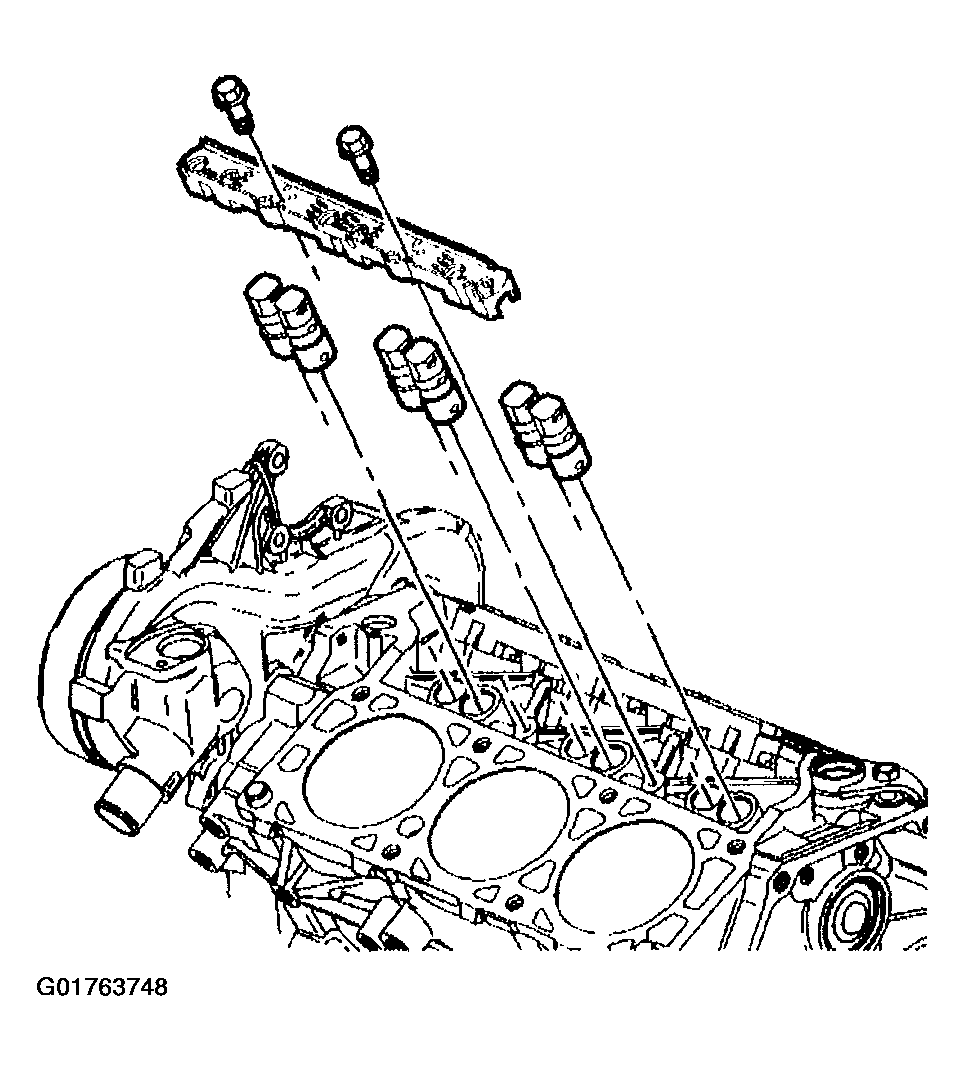

    Fig 1: Valve Lifter Guides, Bolts And Lifters
    G01763748Courtesy of GENERAL MOTORS CORP.
