Oil Pump Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump bolt.
  2. Remove the oil pump and oil pump drive shaft.

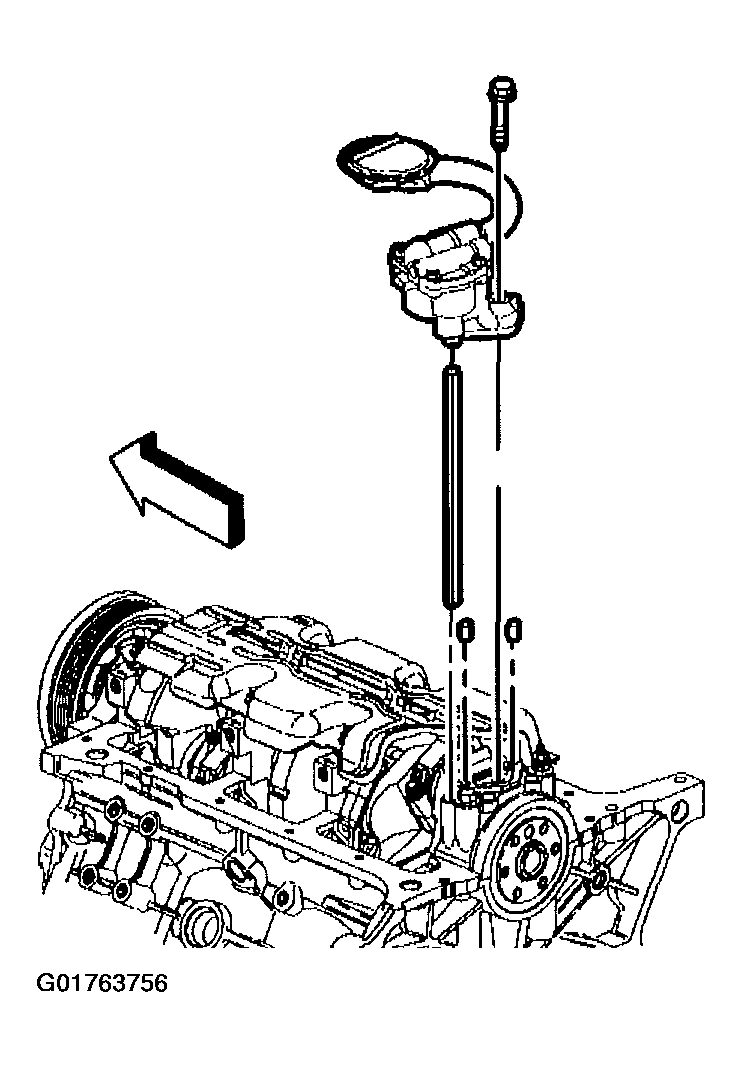

    Fig 1: Oil Pump And Bolts
    G01763756Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft oil deflector nuts.
  4. Remove the crankshaft oil deflector.

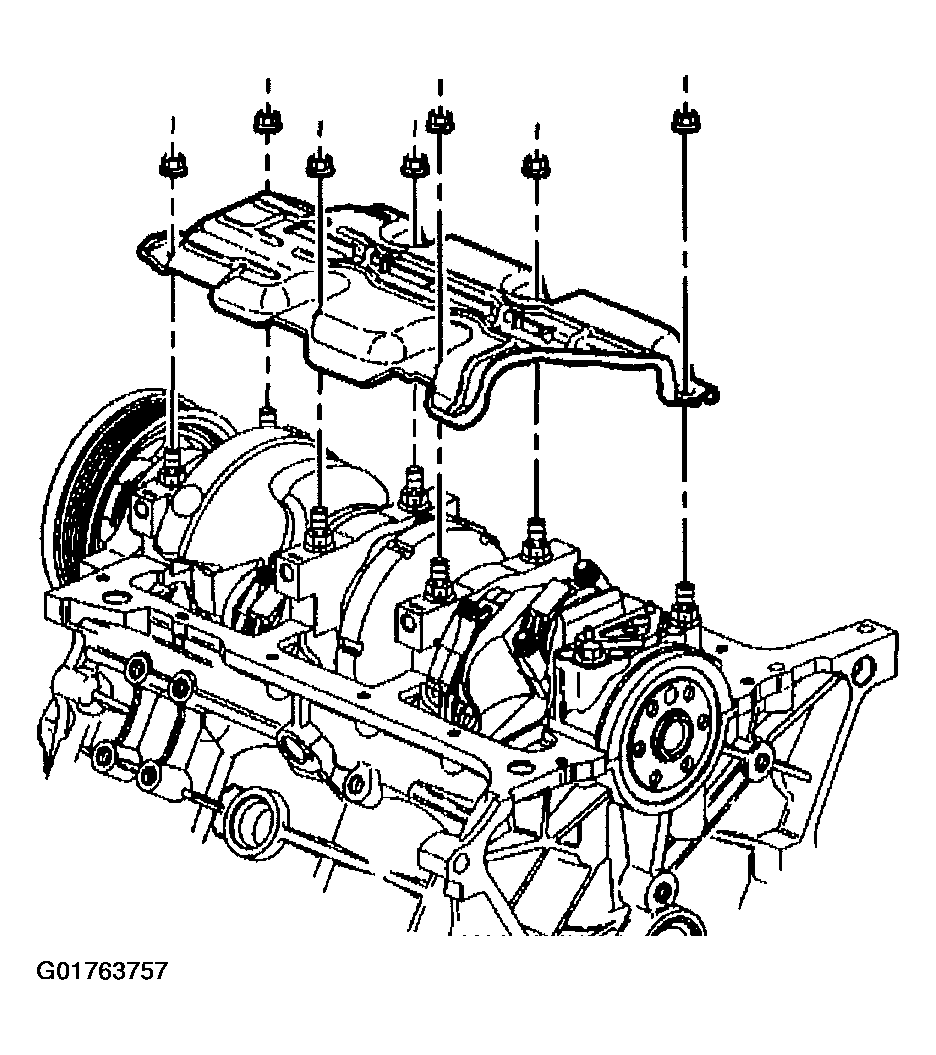

    Fig 2: Crankshaft Oil Deflector And Nuts
    G01763757Courtesy of GENERAL MOTORS CORP.
