Oil Pump Drive Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive clamp bolt.
  2. Remove the oil pump drive clamp.
  3. Remove the oil pump drive.

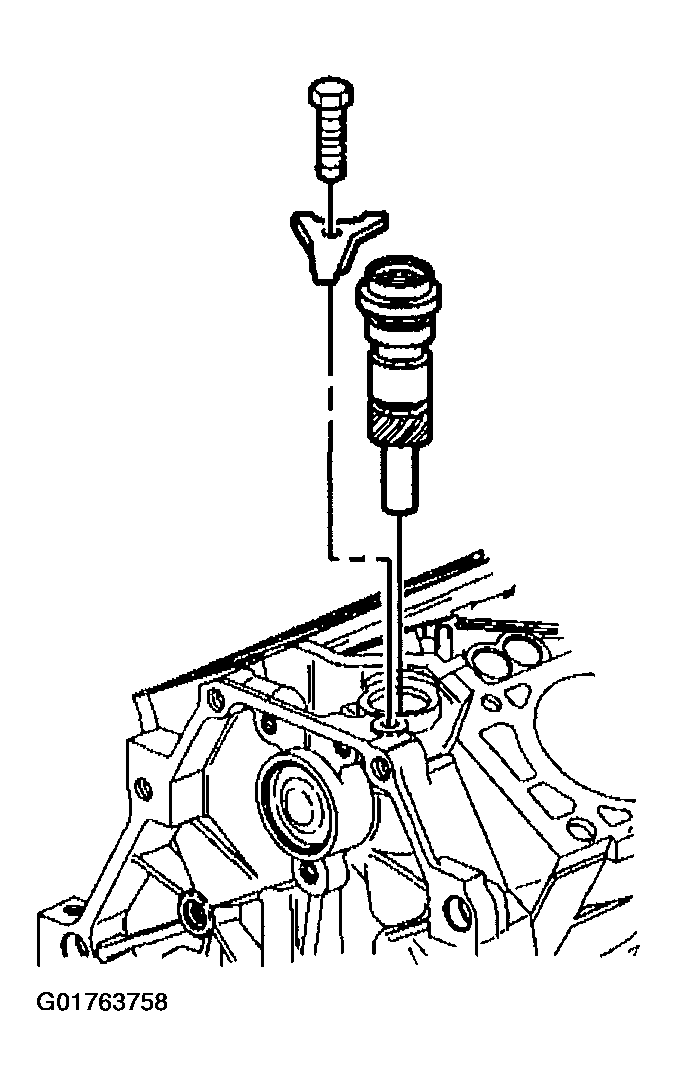

    Fig 1: Oil Pump Drive Clamp And Bolt
    G01763758Courtesy of GENERAL MOTORS CORP.
