Engine Lift Bracket Installation - Rear

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear engine lift bracket.
  2. Install the rear engine lift bracket bolts.

    Tighten:

    Tighten the rear engine lift bracket bolts to 70 N.m (52 lb ft)

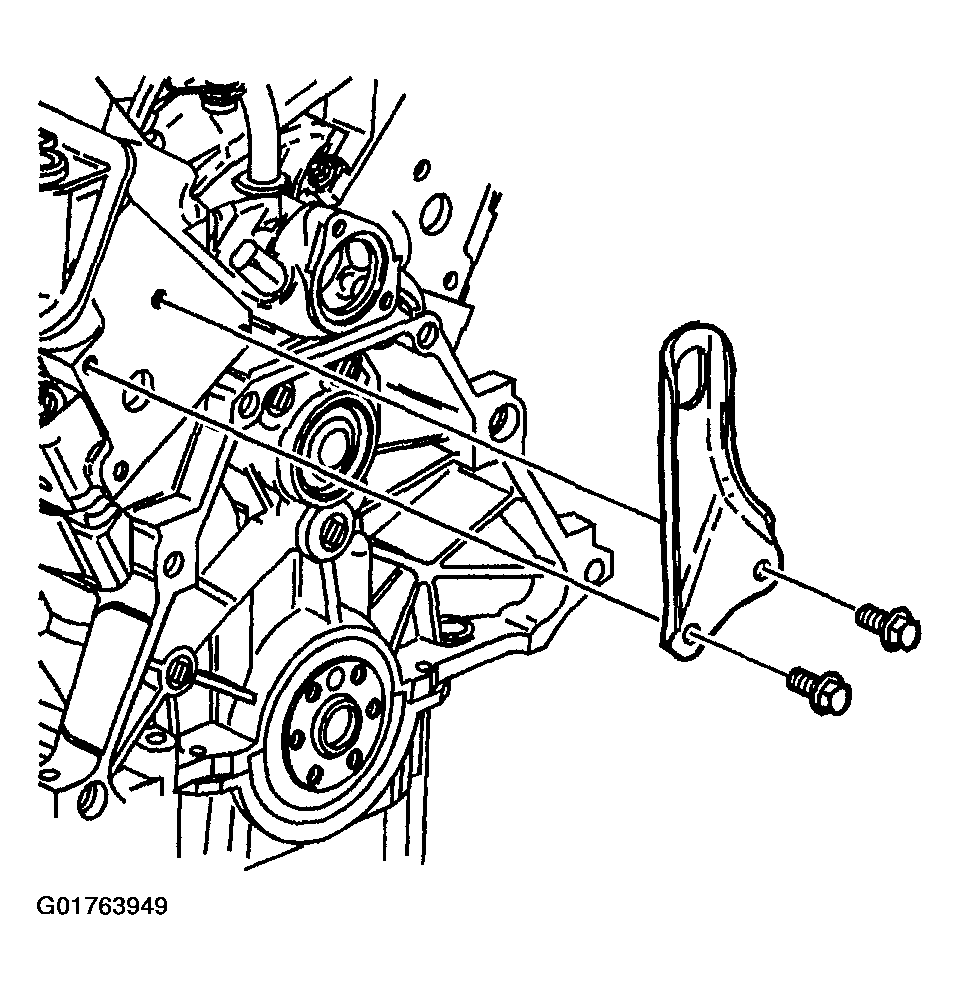

    Fig 1: Rear Engine Lift Bracket
    G01763949Courtesy of GENERAL MOTORS CORP.
