Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands.
  2. Remove the air baffle from the vehicle.
  3. Disconnect the oil cooler lines from the auxiliary oil cooler. Refer to Engine Oil Cooler Hose/Pipe Replacement .
  4. Remove the auxiliary oil cooler from the vehicle.

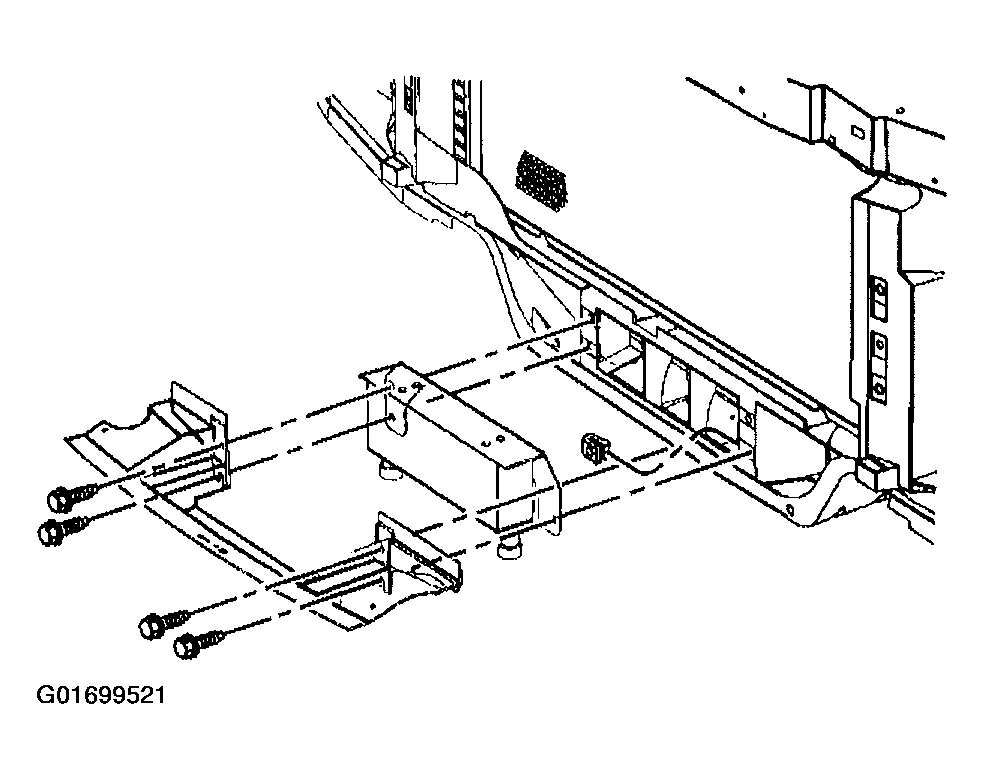

    Fig 1: Removing Air Baffle & Disconnecting Oil Cooler Lines
    G01699521Courtesy of GENERAL MOTORS CORP.
