Steering Column Lock Cylinder Set - Disassemble - Off Vehicle (Column Shift)
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle (Column Shift) or Steering Column Trim Covers - Disassemble - Off Vehicle (Floor Shift) .

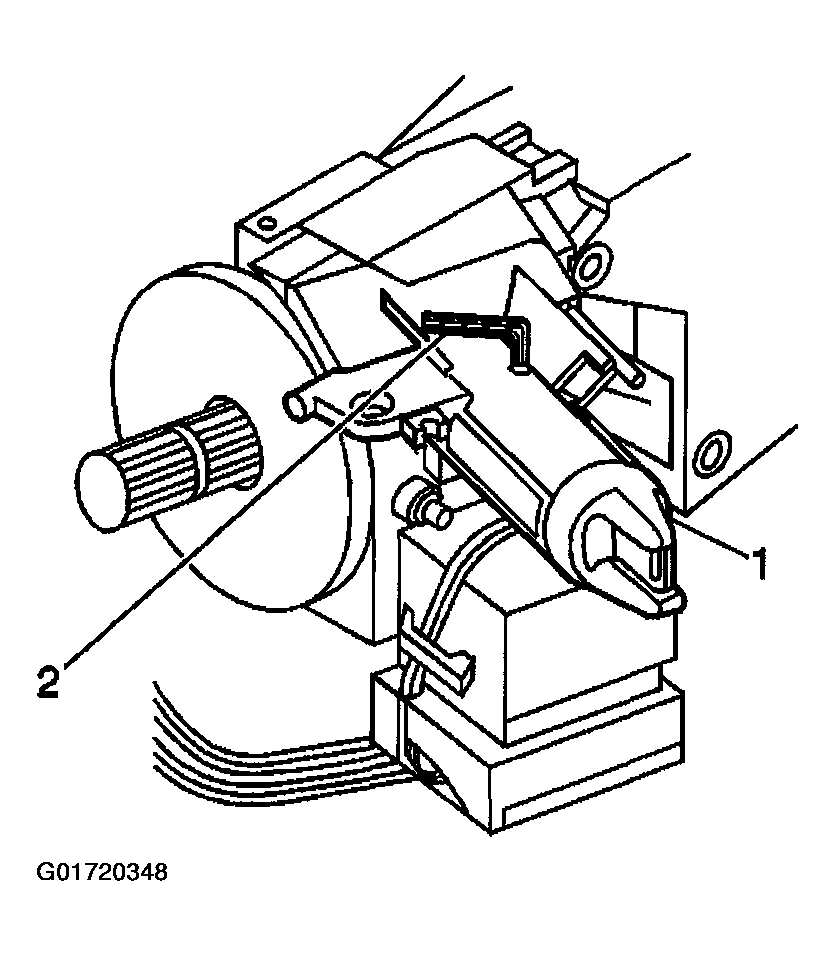

- Put the key in the steering column lock cylinder set (1).
- Turn the key to the START position.
- Install a one sixteenth allen wrench into the hole on top of the electronic lock module assembly (2) to release the steering column lock cylinder set retaining pin.
- Turn the steering column lock cylinder set (1) to the RUN position.
- Pull the steering column lock cylinder set (1) out from the electronic lock module assembly.
- Remove the key from the steering column lock cylinder set (1).
