Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle (Column Shift)

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle (Column Shift)  or Steering Column Trim Covers - Disassemble - Off Vehicle (Floor Shift)  .
  2. Remove the wire harness assembly (1) from the wire harness strap (2).
  3. Remove all the small wire harness straps.
  4. Disconnect the inflatable restraint steering wheel module coil connector from the turn signal switch assembly connector.
    Fig 1: Wire Harness Assembly And Harness Strap
    G01720294Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining ring (3) from the groove in the steering shaft assembly (2).
  6. Remove the inflatable restraint steering wheel module coil (4) from the steering shaft assembly (2).

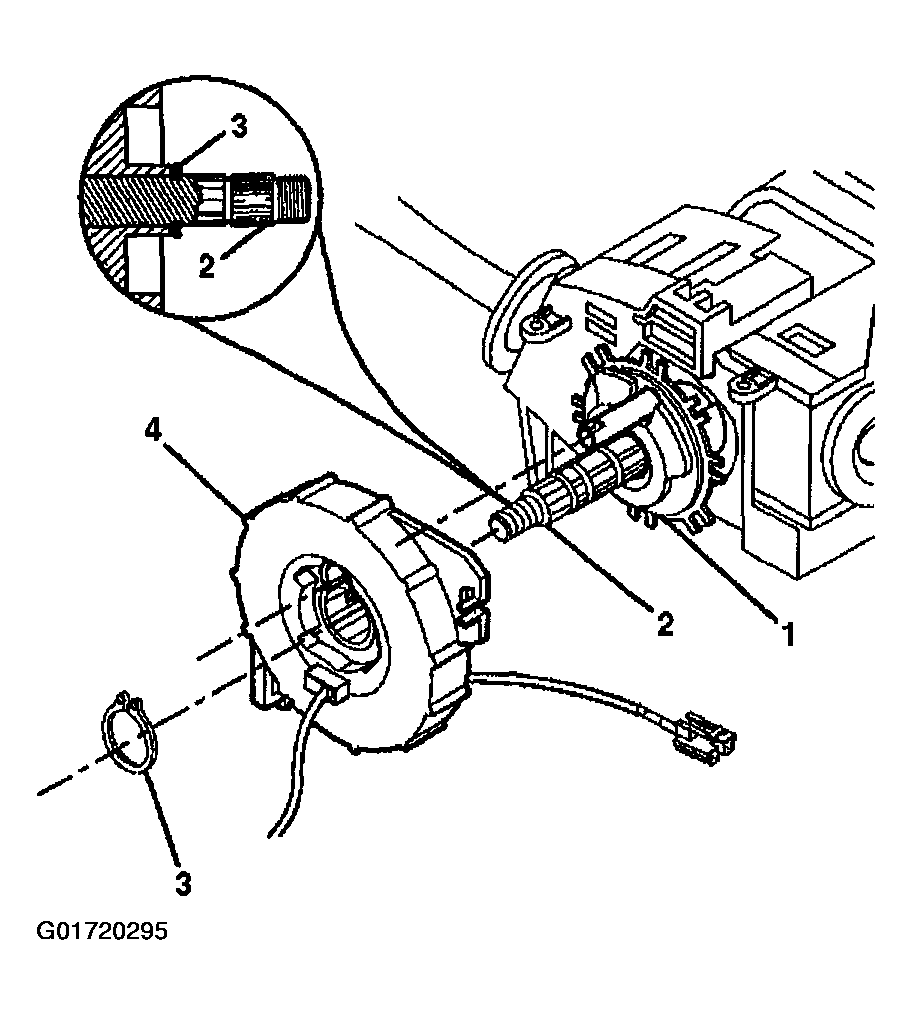

    7. Fig 2: Inflatable Restraint Steering Wheel Module Coil, Retaining Ring And Steering Shaft Assembly
    G01720295Courtesy of GENERAL MOTORS CORP.
