Crankshaft Rear Oil Seal (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove excess sealer from seal recess.
  2. Press new crankshaft seal into housing, using Rear Crankshaft Seal Installer J42067. The installer also establishes the depth of the seal in the crankshaft seal bore.

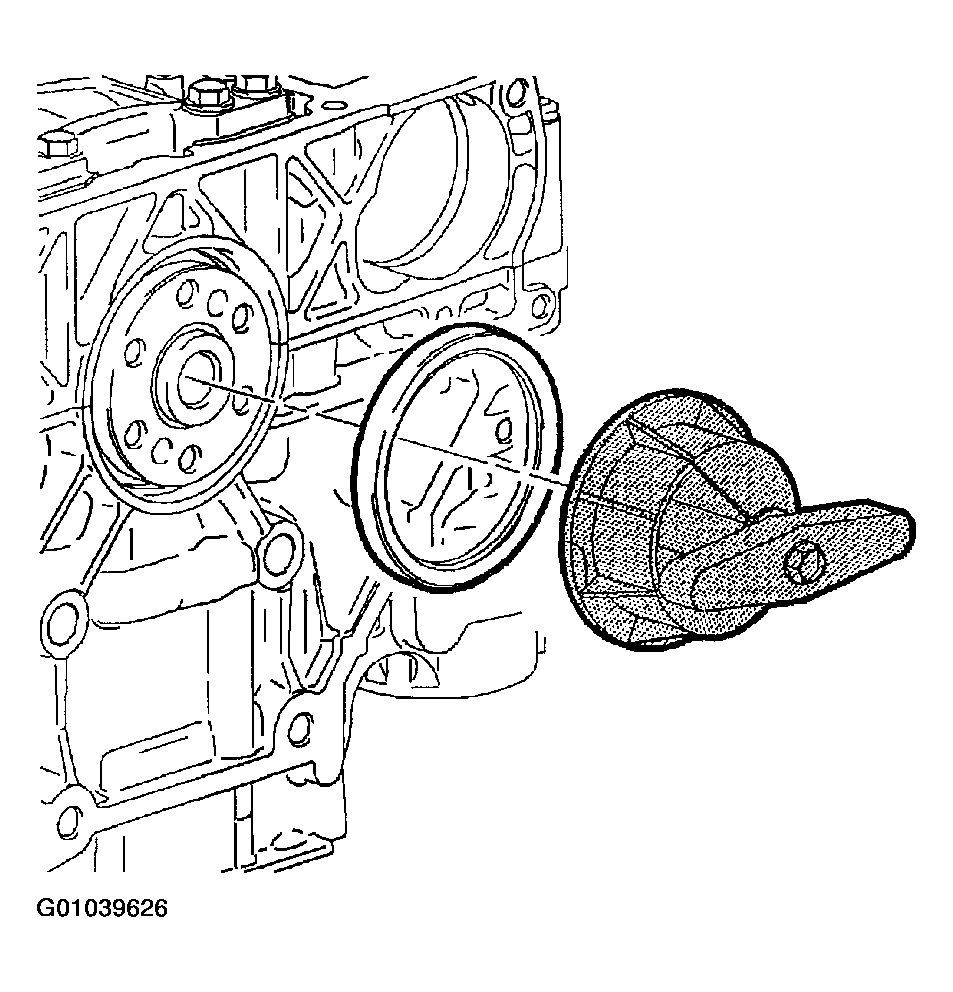

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01039626Courtesy of GENERAL MOTORS CORP.
