Right Hand Mount Bracket: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner assembly.

    4-Cyl Vehicles Only

  2. Install Engine Support Fixture SA9105E and Engine Support Fixture Adapter J44630.

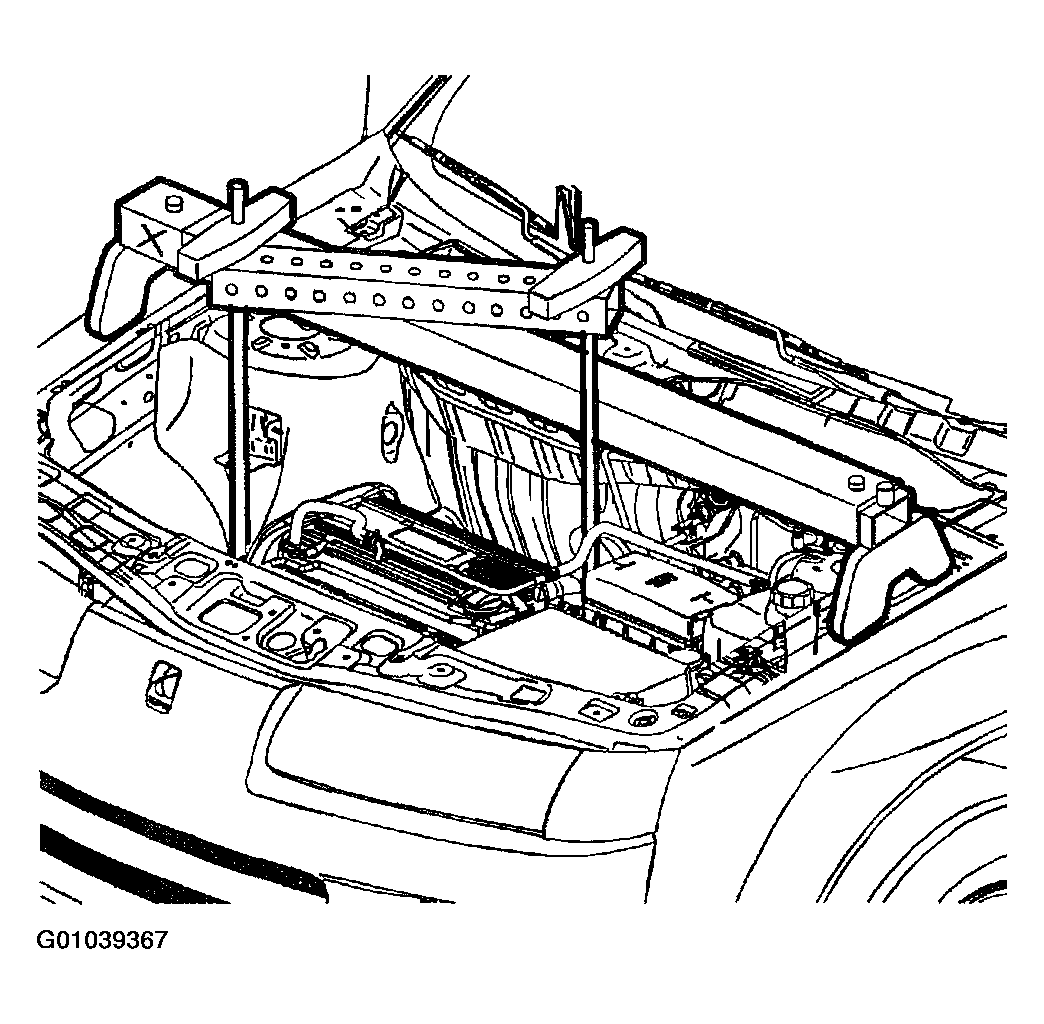

    Fig 1: Installing Engine Support Fixture SA9105E And Engine Support Fixture Adapter
    G01039367Courtesy of GENERAL MOTORS CORP.
  3. Remove mount to mount bracket bolts.

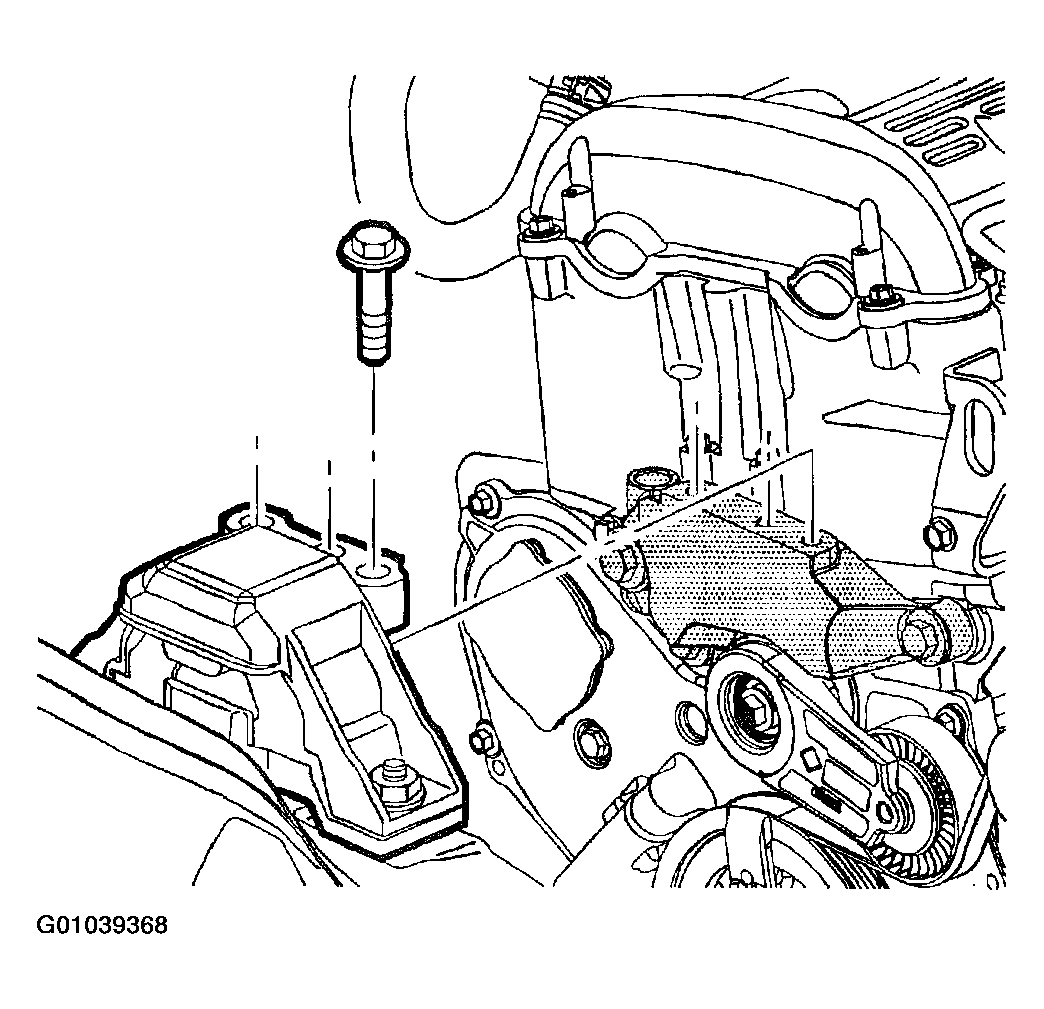

    Fig 2: Removing Mount To Mount Bracket Bolts
    G01039368Courtesy of GENERAL MOTORS CORP.
  4. Remove mount to frame rail nuts.
  5. Remove mount.

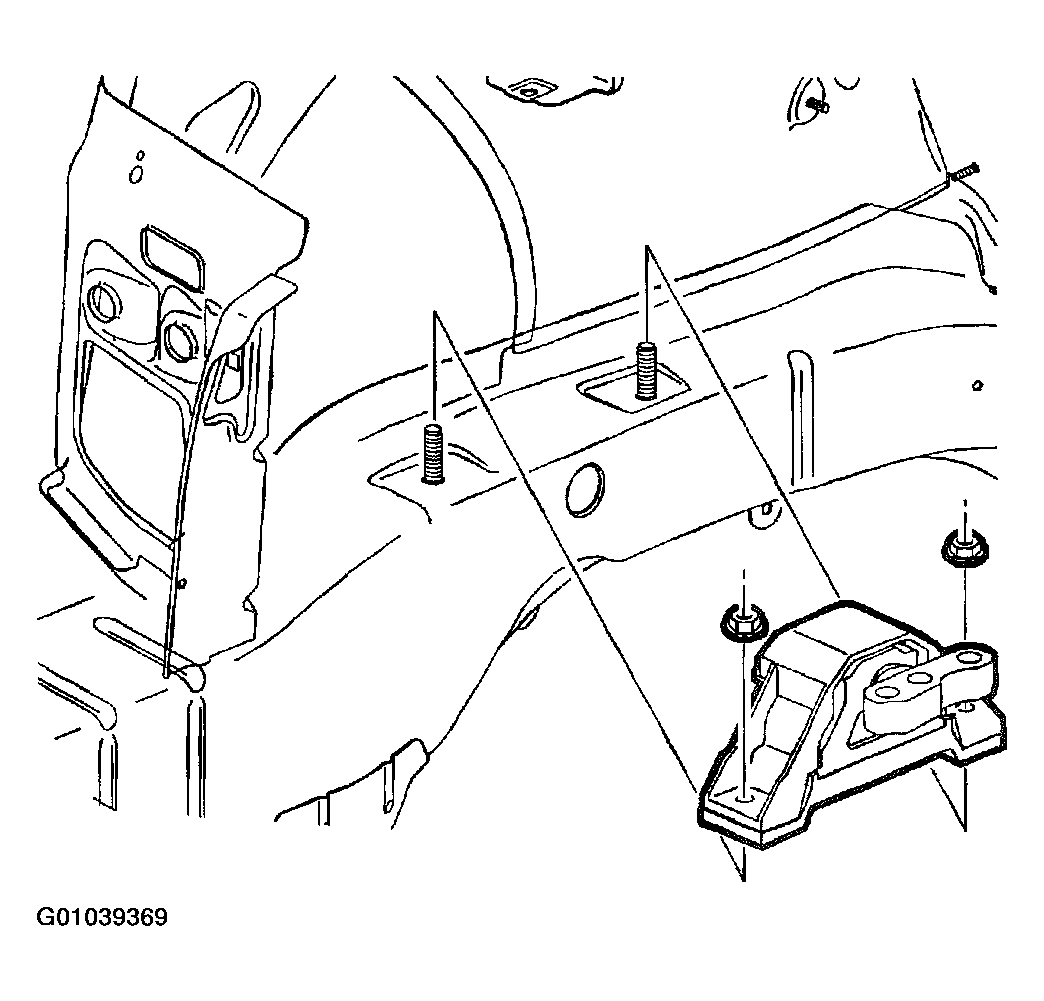

    Fig 3: Removing Mount
    G01039369Courtesy of GENERAL MOTORS CORP.
  6. Remove mount bracket to engine bolt.

    4-Cyl (3 bolts)

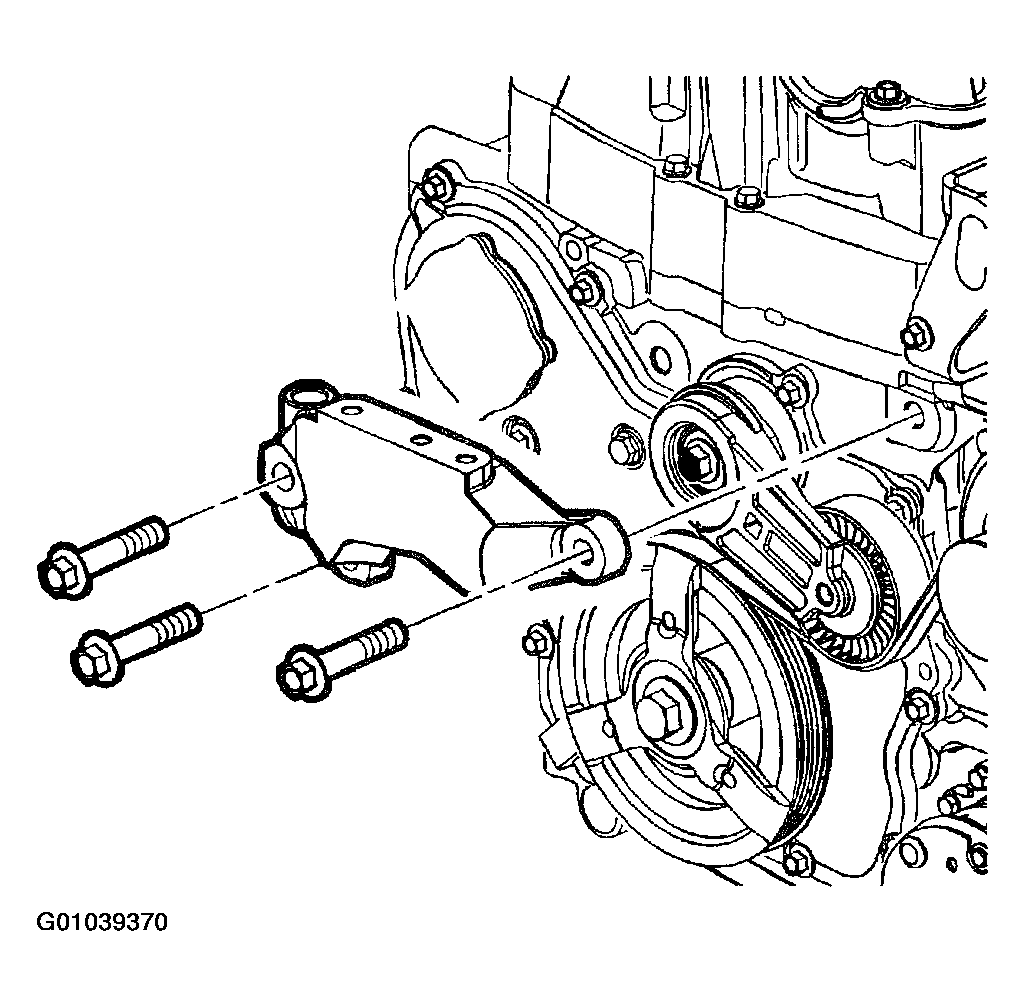

    Fig 4: Removing Mount Bracket To Engine Bolt
    G01039370Courtesy of GENERAL MOTORS CORP.
  7. Remove mount bracket.

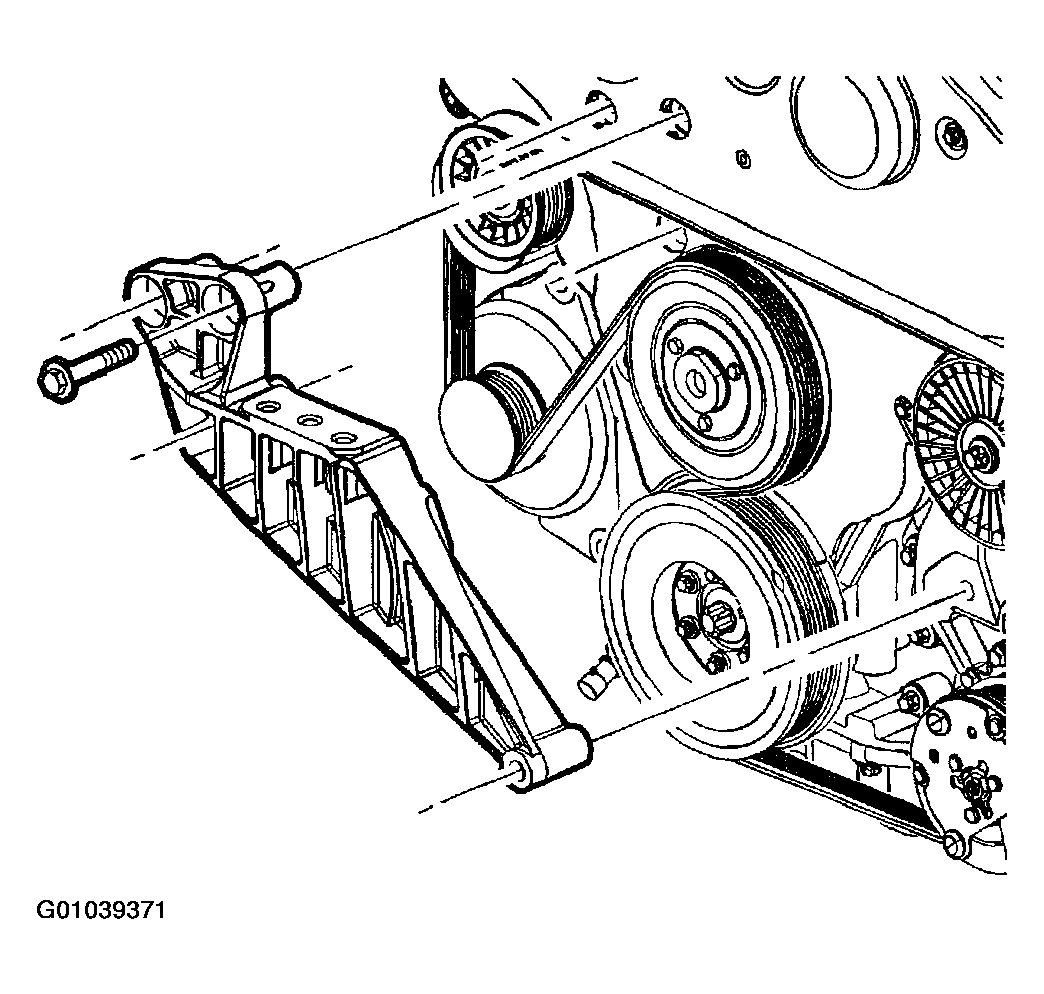

    Fig 5: Removing Mount Bracket
    G01039371Courtesy of GENERAL MOTORS CORP.
