Oil Leak Diagnosis

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

DEFINITION: You can repair most fluid leaks by first visually locating the leak, repairing or replacing the component, or by resealing the gasket surface. Once the leak is identified, determine the cause of the leak. Repair the cause of the leak as well as the leak itself.

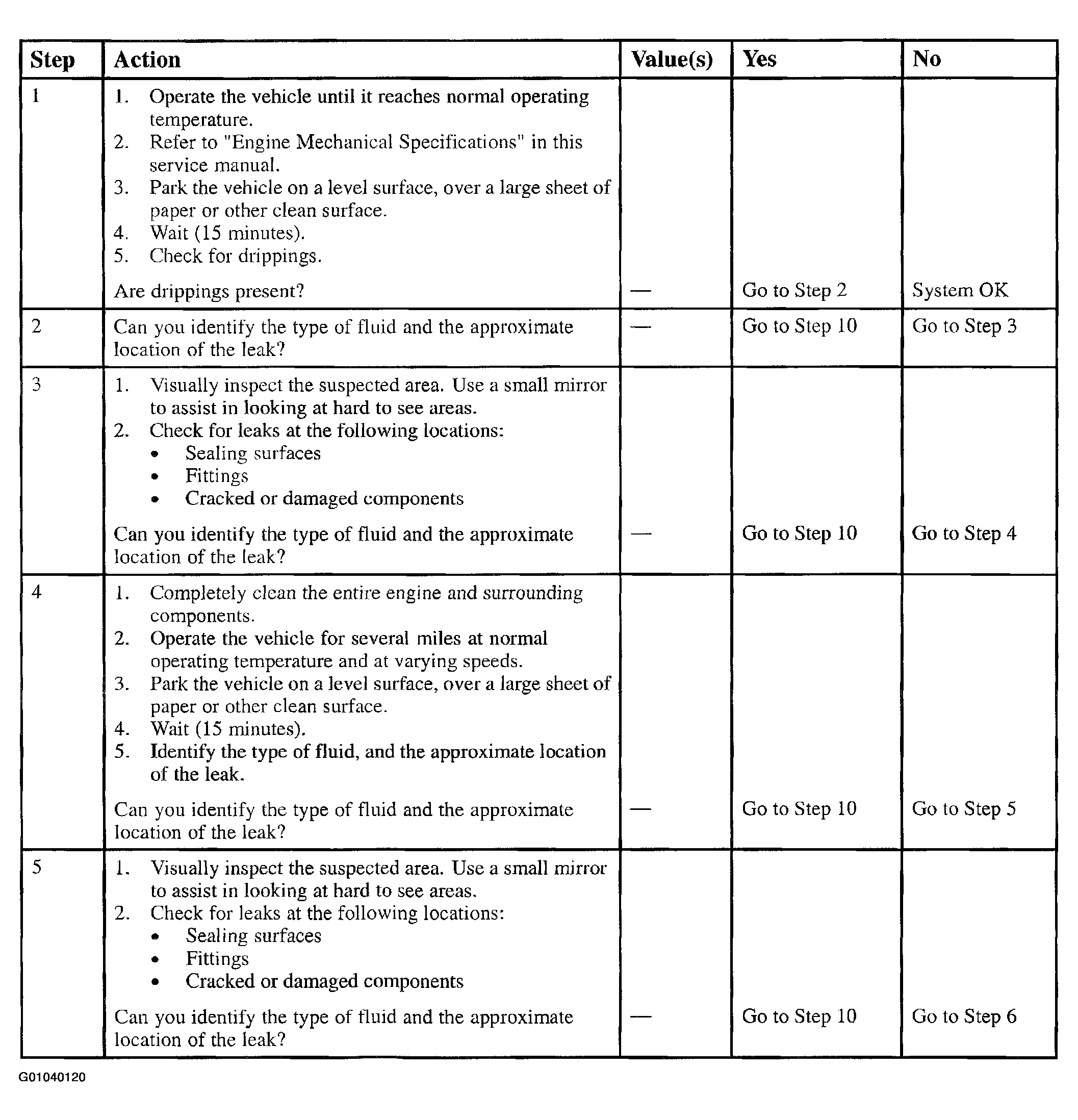

Fig 1: Oil Leak Diagnosis Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

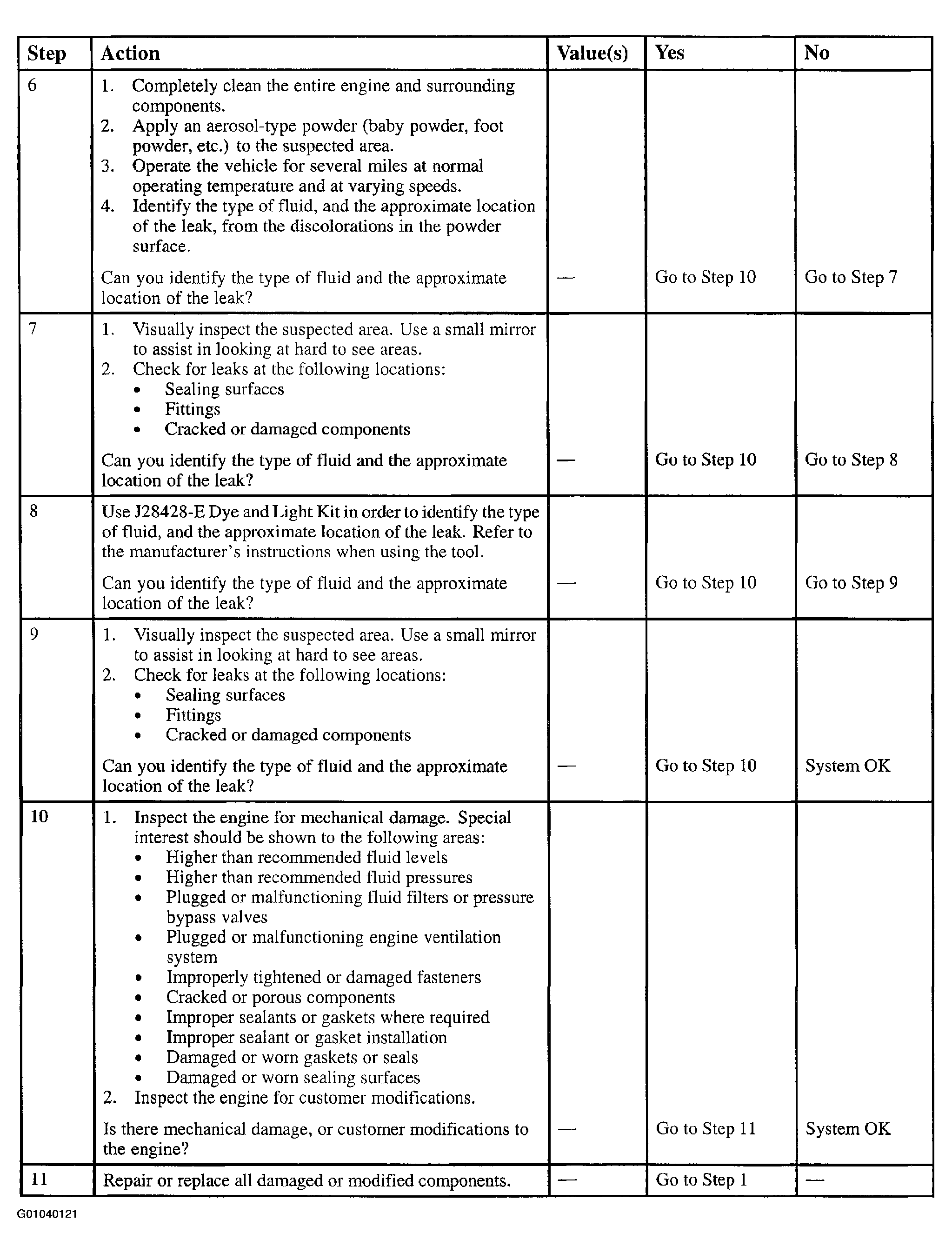

Fig 2: Oil Leak Diagnosis Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
