Assembly Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the cylinder lines (1) for the following items:
- Cracks
- Dents
- Damage to the threads
Replace the parts as needed.

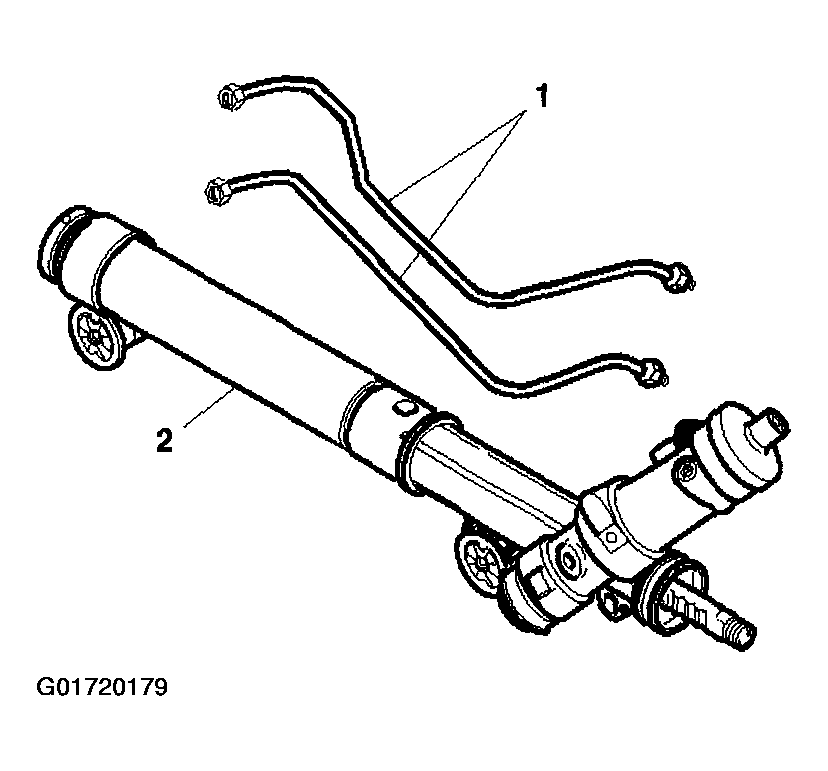

Fig 1: Cylinder Lines
Courtesy of GENERAL MOTORS CORP.
Install the new O-ring seals (1) to the valve end of the cylinder lines.

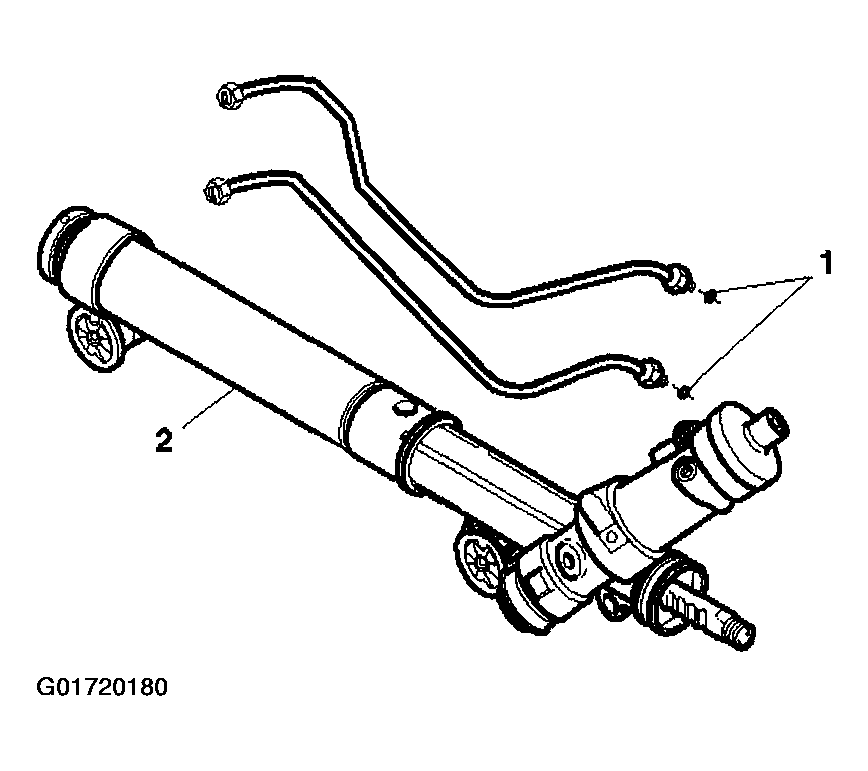

Fig 2: O-Ring Seals To Cylinder Lines
Courtesy of GENERAL MOTORS CORP.
Install the cylinder line assemblies (1) to the gear assembly (2).
Tighten:
- Tighten the valve end fittings to 16.9 N.m (12.6 ft lbs).
- Tighten the cylinder end fittings to 27 N.m (20 ft lbs).
